1999-2001 Yamaha Phazer 500 Deluxe / Venture XL / Mountain Lite Service Manual
Covers Phazer 500 Deluxe, Venture XL, and Mountain Lite with clutch adjustment, engine specs, suspension tuning, V-belt transmission, and complete electrical troubleshooting procedures.
Manual Preview

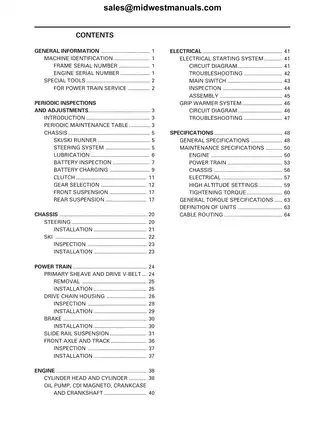

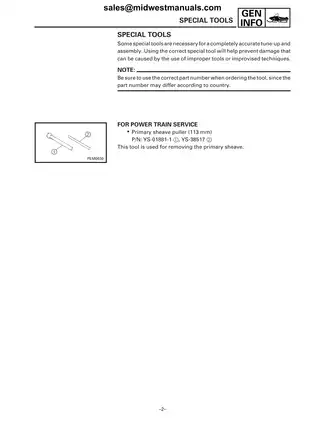

Sample pages from the 1999-2001 Yamaha Phazer 500 Deluxe / Venture XL / Mountain Lite Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Yamaha Phazer 500 Deluxe, Venture XL, Mountain Lite — 1999–2001 Documentary Blueprint Guide for Phazer 500 Series Set.
- Authorized Heat Dissipation Data: The cylinder head volume is configured at 27.4–28.0 cm³ (1.67–1.71 cu.in) Benchmarks.
- Published Production Rate: For optimal engine displacement, 485 cm³ (29.6 cu.in) limits the air-cooled 2-stroke architecture Range.
- Reference Form Factor: Engine output is set to 7,250 r/min producing maximum horsepower at 35 kW Sequences.
- Established Tightening Data: The crankcase fastener requires 21 Nm (2.1 m·kg, 15 ft·lb) in two stages Baseline.
- Measured Gap Specs: Spark plug electrode gap is measured at 0.7–0.8 mm (0.028–0.031 in) for standard combustion Requirements.
- Core Working Temperature: Battery specific gravity reaches 1.280 at 20°C (68°F) for full charge capacity Threshold.
Professional Workshop Service Manual & Technical Specifications
Systematic Calibration Parts Manual: Yamaha Phazer 500 Deluxe, Venture XL & Mountain Lite Snowmobile Service Manual, 1999-2001 Edition Powertrain-Manual
Equipment-Series: Yamaha Phazer 500 Deluxe (1999-2001), Yamaha Phazer 500 Venture XL (1999-2001), Yamaha Phazer 500 Mountain Lite (1999-2001) // Assembly-Group: Powertrain and chassis systems / Engine and electrical logic // Equipment-Series: Complete technical specifications and troubleshooting procedures included.
| Component | Baseline | Logic |
|---|---|---|
| Engine Systems | Air-cooled 2-stroke configuration | Complete service and inspection data provided |
| Transmission | V-belt automatic with 3.8 to 1.0 ratio | Clutch weight selection and sheave spring reference tables included |
| Electrical | CDI ignition and flywheel magneto | Circuit diagrams and component testing procedures documented |
| Suspension | Leading arm front, slide rail rear | Adjustment positioning and damping force specifications detailed |
| Brake System | Hydraulic caliper disc brake | Pad wear limits and component clearance data documented |
The manual presents information on general machine identification and frame serial number location, covering periodic inspections and maintenance tables, providing guidance on chassis steering system assembly, examining engine cylinder head and crankshaft procedures, and detailing electrical starting system troubleshooting.
Strategic Logic-Path
Calibration requirements are specified for engine idle speed, carburetor jet sizing at multiple elevations, and V-belt transmission engagement parameters across the complete altitude operating range. The documentation addresses pre-operation checks that include spark plug condition, fuel level, battery fluid level, and throttle lever operation, with remarks indicating seasonal replacement intervals and visual inspection criteria throughout the service cycle.
Precise Sequences
Electrical system documentation covers main switch continuity testing, starter relay operation verification, grip warmer circuit diagnostic procedures, and CDI unit functional checks using pocket testers. The manual provides careful attention to suspension adjustment steps, including spring preload positioning on both front and rear assemblies, stopper band tension measurement protocols, and full-rate damping position configuration with explicit callouts for even left-right side alignment.
Operational Standard
Suspension service documentation covers slide rail suspension component removal and installation procedures, front axle track systems, and guide wheel positioning requirements. The document includes detailed disassembly sequences for primary and secondary sheave assemblies, V-belt inspection criteria, drive chain housing joint configurations, and sprocket wheel specifications for both standard and optional gear ratio selections.
Comprehensive Interface
Disassembly instructions are documented for brake caliper mounting, steering tie rod and relay arm fastening points, ski column lower bracket alignment, and handlebar attachment procedures. The manual references wiring harness routing with cable guide locations, connector positioning behind instrument panels, and plastic band fastening points throughout the frame assembly, ensuring proper electrical lead management and avoiding kinked brake hose configurations.
Comprehensive Protocol
Wear limits are specified for ski runners (8 mm maximum), plastic ski thickness (13 mm maximum), brake pad thickness (1.5 mm minimum), and slide runner material (10 mm minimum wear limit). The document includes maintenance interval tables listing initial service at first 800 kilometers, seasonal checks at 3,200 kilometers, and component-specific lubrication requirements for steering column bearings, ski suspension pivot points, and suspension component fasteners.
The manual documents torque specifications for the spider and sliding sheave assembly to ensure proper rotational loosening prevention. Comprehensive tightening sequences are provided for crankcase assembly in progressive stages, primary sheave cap installation using specialized pullers, and drive chain housing bolt patterns tightened in specific crisscross sequences. Cable routing diagrams illustrate speedometer lead positioning, throttle cable routing along handlebar interiors, and fuel tank breather hose management along frame sides to prevent crushing and cross-contact with oil tank components.
