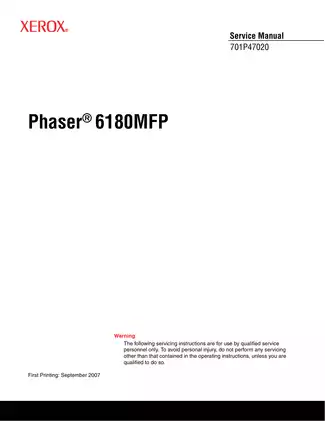

Xerox Phaser 6180MFP Multifunction Printer Service Manual (P/N 701P47020)

• Document and model coverage: Official Xerox publication 701P47020, first printing September 2007; an 884-page PDF for the Phaser 6180MFP/N and 6180MFP/D. The duplex unit is optional on the /N and standard on the /D, and the optional 550-sheet feeder is covered.
• Built-in Service Diagnostics exercise sensors, motors, clutches, solenoids, lamps, duplex hardware, and scanner/fax electronics, with POST tests, NVM utilities, error history, and engine test prints.
• Print-quality fault isolation uses component-to-defect references, repeating-defect measurements, CMYK and gradation test prints, and procedures for registration, streaking, banding, ghosting, background, fusing, skew, and ADF artifacts.
• Factory adjustment and calibration procedures cover automatic and manual color registration, fuser-life reset, print-meter and NVM initialization, NVM save/load, scanner calibration, and printer/fax/scanner parameter setting.
• FRU repair coverage includes the fuser and transfer units, ROS laser unit, main and feed drives, HVPS/LVPS, MCU and Image Processor boards, fax and scanner controller boards, ADF/scanner assembly, duplex unit, and Tray 3 feeder hardware.
• Electrical reference material provides six plug/jack locator maps and 16 named wiring-diagram sections, including DC Power Supply, Laser Unit, Xerographic, High Voltage, Optional 550-Sheet Feeder, and Automatic Document Feeder diagrams.

This is the factory service manual Xerox technicians use for diagnosis, maintenance, and repair on the Phaser 6180MFP and its attached options. Xerox limits the service instructions to authorized service technicians and service partners and assumes a qualified technician; the live electrical tests, laser-system work, and NVM procedures are not written as beginner repair guidance.

Configuration and Serial Identification

Both factory configurations use 384 MB of soldered onboard RAM and provide one DDR2 expansion slot. The /N and /D share the same print, scan, copy, fax, Ethernet, USB, and parallel-interface architecture; duplex-unit fitment is the main documented configuration difference. The Multi-Protocol Network Card and a single 550-sheet feeder are optional on either version.

The parts section gives the nine-character serial format and separates voltage and duplex builds. GNX identifies the 110 V engine and GPX the 220 V engine. In the mass-production build table, the five-digit serial sequence is 10001-50000 for /N machines and 50001-99999 for /D machines in both voltage families. That distinction matters when selecting configuration-specific repair information and replacement parts. Separate specification tables cover the two power-supply families, including power consumption, in-rush current, leakage current, operating environment, image alignment, and media/tray data.

Print Engine, Scanner, and Fax Systems

The theory chapter follows the tandem electrophotographic process from drum charging and four-laser ROS exposure through development, direct belt transfer, cleaning, neutralization, and free-belt-nip fusing. It also explains Pixel Count Dispense Control, Auto Density Control, ADC sensing, color-registration control, paper-size detection, and the drive paths for Tray 1, Tray 2, duplexing, and the optional feeder. Separate functional sections cover the CCD scanner, ADF paper transport and drive, and fax signaling and protocol monitoring.

Error-code coverage is organized for bench fault isolation rather than as a simple code list. Chain-link tables connect control-panel messages to likely FRUs, plug/jack maps, wiring references, and decision tables. Coverage runs from paper-path jams, fuser and transfer-unit life/CRUM faults, and ROS or drive errors to memory, firmware, network, email, scanner, copier, and fax failures. General troubleshooting adds control-panel faults, startup and power-supply checks, abnormal-noise diagnosis, and AC/DC and LVPS protection-circuit testing. Appendix A adds Control Panel Bit Map Display, Boot Controller, Firmware Controller, and MPC update procedures, plus the fax-parameter chain-link table.

Repair Procedures, Parts, and Service Cautions

Section 8 uses disassembly flowcharts and prerequisite references to guide FRU removal and replacement. The repair scope is assembly-level: it supports replacement of service parts and options, not board-level electronic repair or internal rebuilding of sealed consumables. Exploded parts views and orderable part numbers cover the print engine, xerographics, fuser/exit, drive and electrical assemblies, wiring harnesses, scanner/ADF, duplex unit, and four views of the optional feeder. Parts data also distinguishes the 115 V and 230 V fuser assemblies and identifies periodic-replacement roller and transfer-unit kits.

Two replacement notes are especially easy to miss. The Image Processor Board procedure warns that pressure during the NVRAM ROM transfer can damage the board and calls out the correct ROM orientation. After ADF Scanner Assembly work, the carriage lock must be returned to the unlocked position before power-up; the manual states that leaving it locked can damage the printer.

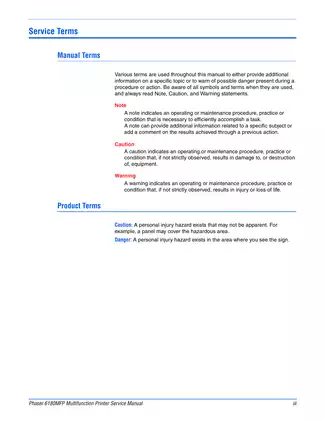

Internal repair requires AC isolation, ESD controls, and laser precautions. The fuser is a hot-surface hazard, while energized electrical troubleshooting exposes dangerous voltages and is reserved for qualified service personnel.
