Xerox Phaser 6125/6130 (2007) Color Laser Printer Service Manual (P/N 701P47834)
454 Pages • 1 Printable PDF (English) • 23.39 MB • Download
Xerox Models Covered & Key Technical Specifications
Models & Model Codes: Phaser 6125 (LAN, 110 V; 6125V: LAL, 220 V), Phaser 6130 (HAT, 110 V; 6130V: HAR, 220 V)
Sub-models / Variants: 6130N (PDL), 6125N (GDI)
Model Year: 2007
Serial number ranges (final five-digit sequence):
-
6130_N (110 V): 30001–79999
-
6130_WN (110 V): 80000–99999
-
6130V_N (220 V): 30001–79999
-
6130V_WN (220 V): 80000–99999
-
6125_N (110 V): 30001–55000
-
6125_WN (110 V): 55001–99999
-
6125V_N (220 V): 30001–60000
-
6125V_WN (220 V): 60001–99999
-
Printing technology: Tandem electro-photographic system
-
Print speed (color/mono): 12/16 ppm
-
Resolution: 600 x 600 dpi (standard)
-
Standard RAM: 128 MB (6130N), 64 MB (6125N)
-
Maximum RAM: 1152 MB (6130N model only)
-
Warm-up time: Less than 30 seconds
-
Average print volume: 450 pages/month
-
Operational lifespan: 100,000 pages
Xerox Manual Features & Selected Content Preview

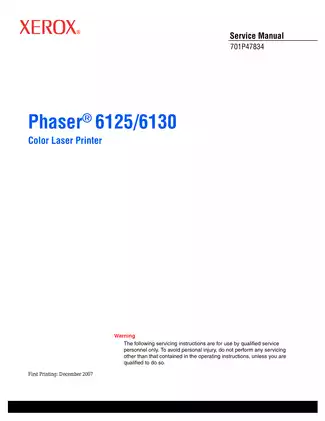

The Xerox Phaser 6125/6130 Color Laser Printer Service Manual, P/N 701P47834, first printing December 2007, covers the 6130N (PDL) and 6125N (GDI) configurations.
Searchable PDF with Service Bookmarks
Text search and diagram detail: Searchable text and chapter/section bookmarks support navigation. The “Phaser 6130 Menu Map” bookmark opens the cover instead of the map; the map is on PDF p. 436. Small wiring labels require zooming.
One printable English PDF contains 454 pages total, including the original front and back covers, two completely blank pages, and nine section-ending pages containing only headers or footers.
Print Engine Diagnosis and Component Replacement
These selected service topics outline the repair coverage rather than reproduce the full contents. Additional subjects include printer cleaning, the RIP (Repair, Inspect, and Prevent) maintenance procedure, and operating-system and communication troubleshooting.
-
Fault diagnosis: Error History reports, Chain Link codes, Power On Self Test, and Service Mode tests for sensors, motors, clutches, solenoids, erase lamps, NVM, and controller memory.
-
Print quality: Factory test prints and defect charts for light or missing output, bands, ghosting, contamination, skew, damaged paper, unfused toner, and misregistration.
-
Adjustment and calibration: Automatic and manual fast-scan/slow-scan registration, fuser resets, print-meter and NVM initialization, parameter access, and component life-counter checks.
-
FRU replacement: Illustrated, step-by-step procedures for the imaging unit, fuser, laser unit, dispenser, transfer unit, paper-feed components, and main and sub drives.
-
Electronics and frame: LVPS/HVPS, MCU and Image Processor boards, harnesses, and upper/lower frame separation, with replacement notes and exploded parts views.
-
Wiring and firmware: Plug/jack designators, connector-location maps, system wiring diagrams, and Boot Controller, main controller, and Multi-Protocol Network Card update procedures.
The manual is intended for authorized Xerox service technicians and service partners; Xerox strongly recommends product training and requires certification for service work.
Configuration and Parts Matching
The 6130 accepts optional memory and a Multi-Protocol Network Card; additional memory is unavailable for the 6125. Parts listings distinguish PDL and GDI control panels and identify 6125-specific toner cartridges.
Exploded views and orderable part numbers are supported by product-code and N/WN serial-sequence tables, voltage-specific fusers, regional power cords, and service-kit contents. These references help match replacement parts to the printer configuration.
Print Engine Theory and Fault Isolation
The theory section follows the tandem electrophotographic process from Bias Charge Roller charging and four-diode Raster Output Scanner exposure through development, direct transfer, drum cleaning, waste-toner collection, and Free Belt Nip Fusing.
It explains Pixel Count Dispense Control, ADC/CTD belt-patch sensing, Auto Power Control for the laser diodes, and color-registration correction through laser write timing. Component diagrams cover paper registration, drive transmission, black-only switching, LVPS/HVPS functions, and Non-Contact Sensor (NCS) fuser-temperature control.
Fault tracing: Troubleshooting tables connect displayed errors and Chain Link codes to FRUs, electrical checks, diagnostic tests, and plug/jack references. Coverage includes controller and memory faults, toner/CRUM errors, tray-to-exit jams, CTD and transfer faults, fuser and motor errors, laser and MCU faults, AC/DC supplies, interlocks, abnormal noise, and inoperable-printer diagnosis.
Test-print interpretation: No Image IOT, Pattern IOT, Grid 2 ESS, color and gradation sheets, and Toner Pallet Check distinguish printer, toner-delivery, and print-data problems. The engine test print helps separate MCU faults from Image Processor board faults. The Contamination Check/Pitch Chart links repeating marks to the associated rollers and assemblies.
Replacement Scope and Handling Notes
The disassembly section supplies prerequisites and replacement notes where reassembly differs from reversing removal. Its repair scope centers on FRU removal and replacement, rather than internal overhaul of the imaging unit, laser unit, transfer unit, or fuser.
Board-replacement notes distinguish MCU NVM save/load functions from Image Processor NVRAM-chip transfer and show model-specific chip locations and orientation.
Prolonged light exposure can degrade the imaging drums, while dragging or dropping the imaging unit across the transfer belt can damage the belt. Forcing plastic tabs or incorrectly starting or tightening self-tapping screws can damage tabs or molded threads.
Internal repair involves hazardous voltage, an enclosed laser system, ESD-sensitive electronics, and a hot fuser, so the manual’s isolation and qualification requirements apply.
Connector Maps, Wiring, and Service Settings
Four connector maps cover Transfer Unit/Control Panel/Imaging Unit/Dispenser/Fuser; Laser Unit/Feeder Assembly; LVPS/Drive Motors/I/P Board/AC Power; and Toner Dispenser Motors/HVPS/MCU.
Dedicated DC Power Supply and Controller schematics are joined by feed/registration, drive, laser, xerographic, developer, and fuser wiring sheets, with signal descriptions.
Settings and updates: NVM initialization preserves network settings. The life-counter notes explain that reported engine-counter values cannot be compared directly with component end-of-life specifications.
The firmware appendix distinguishes USB-only boot-code updates from controller and Multi-Protocol Network Card updates using USB or Ethernet. The procedures call for separately obtained Xerox update files.
Examples of Registration Adjustment Detail
The Registration Values table specifies 0.17 mm per count for Slow Scan K to P black registration and 0.042 mm per count for Slow Scan 600 M, Y, C color registration at 600 dpi. Default registration values differ between individual printers.
