Honda FourTrax Rancher TRX350 2000–2003 Service & Parts Manual Set (P/N 61HN400)
832 Pages • 1 Printable PDF (English) • Download
Honda Models Covered & Key Technical Specifications
Models & Model Codes: FourTrax Rancher (TRX350FE, TRX350FM, TRX350TE, TRX350TM)
Sub-models / Variants: 4x4 ES (TRX350FE, electric shift, TE25E), 4x4 (TRX350FM, foot shift, TE25E), ES (TRX350TE, 2WD electric shift, TE24E), Standard (TRX350TM, 2WD foot shift, TE24E). All four use a constant-mesh 5-speed transmission with reverse.
Model Years: 2000–2001
Serial Numbers: TRX350FE'00: TE25E-8000001~, 478TE254*YA000001~; TRX350FM'00: TE25E-8000001~, 478TE250*YA000001~; TRX350TE'00: TE24E-8000001~, 478TE244*YA000001~; TRX350TM'00: TE24E-8000001~, 478TE240*YA000001~; TRX350FE'01: TE25E-8000001~, 478TE254*1A100001~ (A), 478TE254*14000001~ (2A); TRX350FM'01: TE25E-8000001~, 478TE250*1A100001~ (A), 478TE250*14000001~ (2A); TRX350TE'01: TE24E-8000001~, 478TE244*1A100001~; TRX350TM'01: TE24E-8000001~, 478TE240*1A100001~.
TRX350FE'02: TE25E-8500001~, 478TE254*2A200001~ (A), 478TE254*24100001~ (2A); TRX350FM'02: TE25E-8500001~, 478TE250*2A200001~ (A), 478TE250*24100001~ (2A); TRX350TE'02 (2A): TE24E-8500001~, 478TE244*24100001~; TRX350TM'02: TE24E-8500001~, 478TE240*2A200001~ (A), 478TE240*24100001~ (2A).
TRX350FE'03: TE25E-8500001~, 478TE254*3A300001~ (A), and TE25E-8600001~, 478TE254*34200001~ (2A); TRX350FM'03: TE25E-8500001~, 478TE250*3A300001~ (A), and TE25E-8600001~, 478TE250*34200001~ (2A); TRX350TE'03: TE24E-8500001~, 478TE244*3A300001~ (A), and TE24E-8600001~, 478TE244*34200001~ (2A); TRX350TM'03: TE24E-8500001~, 478TE240*3A300001~ (A), and TE24E-8600001~, 478TE240*34200001~ (2A).
VIN Identification: Positions 4–8 identify the variant: TE254 (FE), TE250 (FM), TE244 (TE), TE240 (TM). In the frame numbers above, the asterisk marks the check digit at position 9. Position 11 identifies the plant: A for Ohio and 4 for South Carolina (catalog area code 2A).
-
Engine Displacement: 329.1 cc
-
Carburetor Type: VE94A
-
Electrical System: 12V
Honda Manual Features & Selected Content Preview

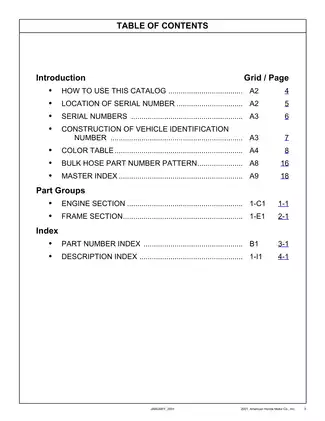

| Publication | Pages |
|---|---|
| Honda FourTrax Rancher TRX350TM, TRX350TE, TRX350FM, and TRX350FE Service Manual, 2000–2003 coverage, May 2002 issue (P/N 61HN400) | 470 |
| Honda FourTrax Rancher TRX350TM, TRX350TE, TRX350FM, and TRX350FE Parts Catalog, 2000–2001, January 2001 issue (paper P/N 14HN4YE1P, fiche 14HN4YE1M) | 197 |

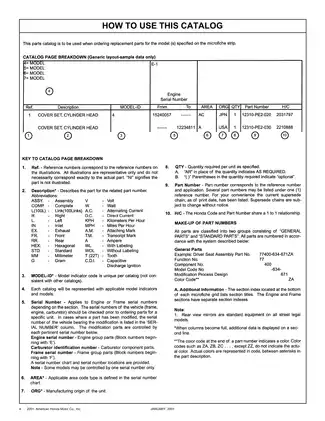

| Honda FourTrax Rancher TRX350TM, TRX350TE, TRX350FM, and TRX350FE Parts Catalog, 2002–2003, May 2002 issue (paper P/N 14HN42E1P, fiche 14HN42E1M) | 165 |
Use the service manual to diagnose the fault and identify the assembly that needs work. Then use the parts catalog for your model year to match the exploded view and confirm the applicable OEM part number.
Model coverage ends with 2003. The maintenance schedules refer to a separate owner's manual for the pre-ride inspection.
PDF Search, Bookmarks, and Wiring Detail
Search and diagram labels: The catalog tables and workshop text are searchable. Some catalog reference graphics and the small labels within wiring diagrams require visual lookup. Embedded bookmarks open both catalogs and many workshop sections, but numerous nested entries point to separate files. Zoom in to read connector labels and wire color codes on the wiring diagrams.
One printable English PDF contains 832 pages, including both catalog covers and seven blank pages. The workshop portion contains all 25 numbered sections, arranged out of chapter order, and includes 93 repeated pages. Use the printed section numbers and service index to find procedures.
Workshop Repairs, ESP Diagnostics, and OEM Parts Lookup
Selected topics include the procedures and references below. The manual also includes an emissions-control system overview and an accessory socket inspection.
-
Scheduled maintenance: Separate schedules for the 2WD and 4WD models, with procedures for valve clearance, engine oil and filter service, and brake inspection.
-
Engine and transmission: Engine removal and installation, cylinder and piston inspection, cam timing, crankcase separation, transmission teardown, and crankshaft and balancer service.
-
Fuel and lubrication: VE carburetor overhaul, pilot-screw and high-altitude adjustments, oil pump inspection, and service for the dry-sump system, oil cooler, and applicable cooling fans.
-
Brakes and driveline: Brake fluid replacement and bleeding, hydraulic front and mechanical rear drum brake service, steering and suspension work, and front and rear driveline repairs.
-
Electrical troubleshooting: Battery and charging tests, DC-CDI ignition checks, electric starter diagnosis, and testing for lights, switches, the speed sensor, and the oil-temperature-controlled fan circuit where fitted.
-
Electric Shift Program: Separate TE/FE fault trees for 2000–2002 and 2003, with later-model fault-code checks, angle sensor testing, and control motor and reduction gear service.
-
Illustrated parts catalogs: Exploded engine and frame views, model application columns, OEM part numbers, color-code tables, bulk-hose numbering, and indexes by part number and description.
Honda wrote the service material for qualified technicians who already know basic Honda maintenance and have the appropriate test equipment and specified special tools.
Engine Overhaul and Workshop References
Cylinder head procedures include valve guide replacement and valve seat refacing. Clutch and starter sections cover the centrifugal clutch, change clutch, gearshift linkage, recoil starter, and starter clutch. Procedures pair disassembly and reassembly with torque values, wear limits, fluid capacities, and lubrication and seal-point charts.
Tool references include the carburetor float-level gauge 07401-0010000, valve spring compressor 07757-0010000, crankcase assembly tool 07965-VM00000, clutch holder 07GMB-HA7010B, differential inspection tool 07KMK-HC50101, and rotor puller 07YMC-HN40100.
Honda warns against prying the crankcase halves apart with a screwdriver because it can damage the mating surfaces. The rear cover procedure flags gear-position switch pin alignment to protect the pin and oil seal lips.
Fuel, battery, brake, supported-chassis, and engine-removal work can expose gasoline vapor, electrolyte, brake fluid, hot components, and heavy assemblies. Follow the manual's safety procedures and use secure lifting and support equipment.
Driveline and Wiring by Variant
The FM/FE front-drive section covers driveshaft service and the A.P. Suretrac torque-biasing front differential, including construction and operation views. The rear-drive section covers rear axle service and final-drive setup. The lubrication chapter limits its cooling fan procedure to models other than the U.S. TM.
U.S. and Canadian wiring diagrams distinguish foot-shift variants from TE/FE electric-shift variants and separate the early and later ESP circuits. The ESP component diagram shows how the angle sensor, gear-position switch, ECU, and shift motor connect. The Body Panel Removal Chart, cable and harness routing views, and Oil Management System Drawing provide separate references for access, routing, and lubrication.
Parts Fit by Serial Number

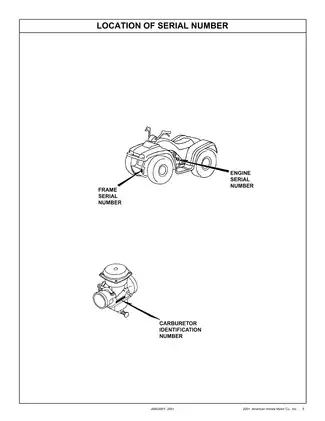

The catalogs tie part listings to model application codes and engine, frame, or carburetor identifiers. Some oil pump rotors, rear crankcase covers, and transmission countershafts have engine serial breaks. Check the applicable serial column alongside the model code to distinguish revisions shown under the same illustration.
Sample Valve, Carburetor, and ESP Test Values
The maintenance section specifies 0.15 mm (0.006 in) of clearance for both intake and exhaust valves with the engine below 95°F (35°C). The carburetor inspection gives a float height of 18.5 mm (0.73 in) with the float valve seated and the float arm just touching it.
For the TE and FE, the ESP chapter specifies 4.7–5.3 V at the angle sensor connector with the ignition on. The input voltage check helps distinguish a wiring or connection fault from a sensor fault.
