2000-2006 Honda TRX350TE Fourtrax 350 ES Owner's Manual
Complete operator guidance for Honda's TRX350TE 350cc off-road quad. Covers engine operation, transmission shifting, brake maintenance, and trail riding techniques. Essential reference for recreational ATV owners.

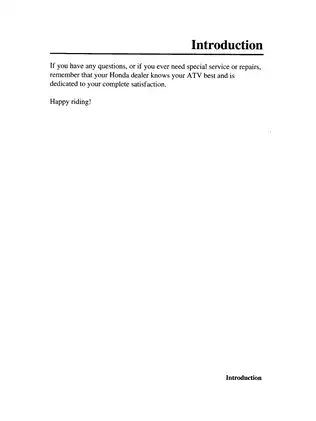

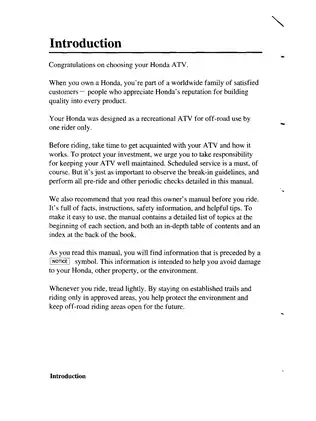

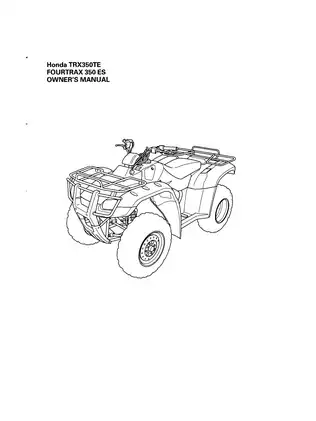

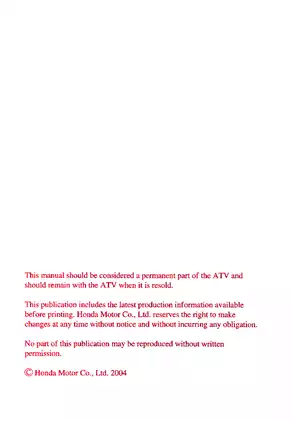

Manual Preview
Sample pages from the 2000-2006 Honda TRX350TE Fourtrax 350 ES Owner's Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Honda TRX350TE Fourtrax 350 ES — 2000–2006 Specialized Documentation Database | TRX350TE Series Binder.
- Documented Power Framework: 13.9 L (3.67 US gal) is set to the fuel tank capacity including reserve Requirements.
- Measured Operating Temps: For off-road conditions, 20 kPa (2.8 psi) specifies the recommended tire pressure standard Threshold.
- Universal Cycle Rate: The engine displacement yields 349 cc rated horsepowering Configuration Mapping.
- Maximum Package Size: 231 kg (509 lbs) reaches the dry weight specification Parameters.
- System Moment Values: 210 kg (463 lbs) — dictates the maximum gross vehicle weight rating Benchmarks.
- Prescribed Current Rating: Ground clearance produces 186 mm (7.3 in) minimum underbody clearance Range.
Professional Workshop Service Manual & Technical Specifications
Thorough Quality Operator's Manual: ATV Honda TRX350TE, Fourtrax, 350 ES Manual - Off-Road Performance & Service Guide Overhaul-Reference
System-Identifier: TRX350TE, Fourtrax, 350 ES (2000-2006) // Model-Specs: Off-Road ATV / 5-Speed Electric Shift System // System-Identifier: 200 pages, comprehensive technical documentation.
| Integrated-Framework | System-Path | Logic |
|---|---|---|
| Document Overview | Safety & Controls Structure | Covers instrumentation, indicator functions, control locations and operational procedures |
| Operator Guidance | Off-Road Performance Systems | Addresses riding techniques, terrain management, and load specifications |
| Service Documentation | Maintenance & Component Reference | Includes service intervals, maintenance schedules, and parts identification |
Technical content addresses engine systems, transmission operation, braking procedures, and chassis management. The manual covers ATV safety fundamentals alongside instruments and controls documentation. It provides engine oil specifications, fuel recommendations, and coolant system data. Transmission shift sequences, reverse selector operation, and gear position indicators receive detailed treatment.
Modular Topology
Quality checks are addressed for air cleaner housing maintenance, including drain tube inspection procedures. The document specifies brake system components—hydraulic drum brakes for front wheels and mechanical drum brake for rear—with complete freeplay adjustment data. Wheel rim specifications, tyre pressure tables, and suspension guidance appear throughout the service section. The manual documents torque specifications for the engine oil filter cover to ensure proper assembly accuracy.
Precise Threshold
The troubleshooting chapter addresses starter motor operation, fuel system diagnostics, and shift switch functionality. Electrical circuit protection through fuse rating tables (30A main, 15A and 10A circuit designations) is included. Battery storage procedures, charging guidelines, and terminal connection sequencing receive comprehensive coverage. The document provides emergency gear selection methodology when electric shift systems malfunction.
Structured Logic-Path
The fuel system section documents tank capacity references (13.9 liters with 3.1-liter reserve), fuel valve positions (ON/OFF/RES), and octane rating requirements. Air intake maintenance includes cleaner assembly removal, solvent cleaning procedures, and oil application techniques. Spark plug specifications, gap measurements, and installation sequences are fully documented with reference data for both NGK and DENSO plug types.
Operational Logic-Path
Valve clearance documentation specifies 0.15 mm reference measurements. The chassis section includes brake shoe wear indicators with standard and service limit lining thickness values. Front brake lever freeplay ranges (25–30 mm), rear pedal freeplay specifications (15–20 mm), and brake adjustment procedures using shoe adjusters are covered. Tyre tread wear evaluation with groove depth measurement guidance appears in the inspection protocol.
Engineered Architecture
The manual provides step-by-step component location diagrams for the fuel fill cap, oil filler cap, spark plug access, and drain plug positioning. Storage preparation includes carburetor drainage procedures, cylinder oil preservation techniques, and battery disconnection sequencing. Load limit tables document maximum weight capacity (210 kg), front cargo restriction (30 kg), rear cargo limit (60 kg), and tow weight specifications (3776 N). The document includes environmental responsibility guidance, proper disposal procedures for used oil and fuel, and biodegradable detergent recommendations for ATV cleaning.
