2000–2003 Honda TRX350 Rancher TM/TE/FM/FE ATV Service & Parts Manual Set (P/N P/N 14HN4YE1P)

739 Pages • Printable PDF • 32.10 MB • Download

4.6starstarstarstarstar_half(5)
$18.65 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Models: TRX350 TM, TRX350 TE, TRX350 FM, TRX350 FE

Models & Model Codes:

TRX350 TM — TRX350TM’00 (0A), TRX350TM’01 (1A), TRX350TM’02 (A2), TRX350TM’03 (A3)

TRX350 TE — TRX350TE’00 (0B), TRX350TE’01 (1B), TRX350TE’02 (B2), TRX350TE’03 (B3)

TRX350 FM — TRX350FM’00 (0C), TRX350FM’01 (1C), TRX350FM’02 (C2), TRX350FM’03 (C3)

TRX350 FE — TRX350FE’00 (0D), TRX350FE’01 (1D), TRX350FE’02 (D2), TRX350FE’03 (D3)

Sub-models / Variants: 2WD Left foot operated gearshift (TM), 2WD Electric shift program (ESP) (TE), 4WD Left foot operated gearshift (FM), 4WD Electric shift program (ESP) (FE)

Catalog-listed frame serial ranges: * denotes the VIN check digit; ~ denotes onward.

TRX350 TM: ’00 A: 478TE240*YA000001~; ’01 A: 478TE240*1A100001~; ’02 A: 478TE240*2A200001~, 2A: 478TE240*24100001~; ’03 A: 478TE240*3A300001~, 2A: 478TE240*34200001~

TRX350 TE: ’00 A: 478TE244*YA000001~; ’01 A: 478TE244*1A100001~; ’02 2A: 478TE244*24100001~; ’03 A: 478TE244*3A300001~, 2A: 478TE244*34200001~

TRX350 FM: ’00 A: 478TE250*YA000001~; ’01 A: 478TE250*1A100001~, 2A: 478TE250*14000001~; ’02 A: 478TE250*2A200001~, 2A: 478TE250*24100001~; ’03 A: 478TE250*3A300001~, 2A: 478TE250*34200001~

TRX350 FE: ’00 A: 478TE254*YA000001~; ’01 A: 478TE254*1A100001~, 2A: 478TE254*14000001~; ’02 A: 478TE254*2A200001~, 2A: 478TE254*24100001~; ’03 A: 478TE254*3A300001~, 2A: 478TE254*34200001~

Catalog-listed engine serial ranges:

  • TRX350 TM/TE ’00–’01, Area A: TE24E-8000001~

  • TRX350 FM/FE ’00, Area A, and ’01, Areas A/2A: TE25E-8000001~

  • TRX350 TM ’02, Areas A/2A; TE ’02, Area 2A; TM/TE ’03, Area A: TE24E-8500001~

  • TRX350 FM/FE ’02, Areas A/2A, and ’03, Area A: TE25E-8500001~

  • TRX350 TM/TE ’03, Area 2A: TE24E-8600001~

  • TRX350 FM/FE ’03, Area 2A: TE25E-8600001~

Area code 2A: Area A vehicles manufactured at the South Carolina factory.

Component serial breaks: The following are the numeric engine serial portions printed in the 2000–2001 parts catalog.

  • Oil pump outer rotors, Area A: TM/TE through 8036389 / from 8036390; FM/FE through 8054796 / from 8054797.

  • Rear crankcase cover, Area A: TE through 8042049 / from 8042050; FE through 8063258 / from 8063259.

  • Transmission countershaft, Area A: TM/TE through 8040549 / from 8040550; FM/FE through 8063258 / from 8063259.

  • Gearshift-fork section, KOYO 16005 bearing, Area A: TM/TE/FM/FE from 8032990.

Trade Names: Rancher

Model Years: 2000–2003 (2000, 2001, 2002, 2003)


  • Engine displacement: 329.1 cm³ (20.08 cu-in)

  • Compression ratio: 8.8:1

  • Bore and stroke: 78.5 x 68.0 mm

  • Transmission type: Constant mesh, 5-speeds with reverse

  • Fuel tank capacity: 13.0 L (3.43 US gal)

  • Engine oil capacity (draining/filter change): 2.0 L (2.1 US qt)

  • Engine idle speed: 1,400 ± 100 rpm

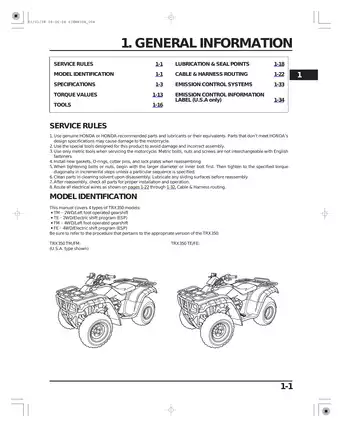

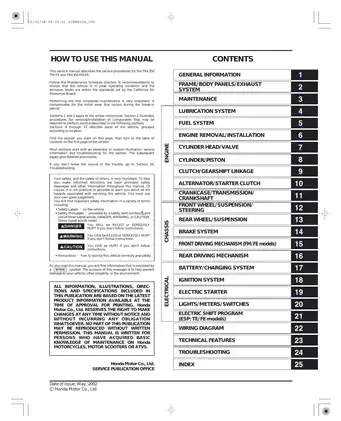

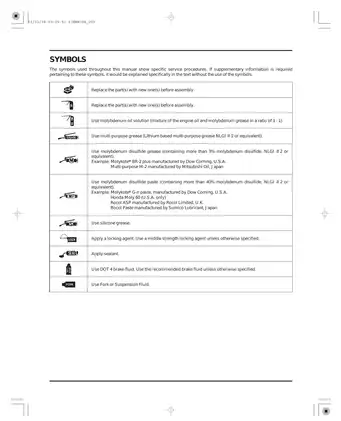

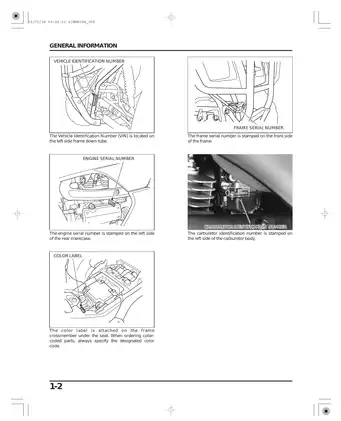

Honda Manual Features & Selected Content Preview

Publication Pages
Honda TRX350 TM/TE/FM/FE Service Manual — May 2002 edition 377
Honda TRX350 TM/TE/FM/FE Parts Catalog, 2000–2001 — January 2001 edition, P/N 14HN4YE1P 197
Honda TRX350 TM/TE/FM/FE Parts Catalog, 2002–2003 — May 2002 edition, P/N 14HN42E1P 165

The service manual provides the repair procedures and inspection criteria; the parts catalogs pair exploded assemblies with model applicability, quantities and part numbers for identifying replacement components.

Parts-selection caution: The TRX350TE’02 Area A serial-number row repeats the FE engine and frame identifiers. Confirm vehicle identification before relying on that row to select parts.

PDF Search, Bookmarks and Wiring Detail

Finding text and reading diagrams: Most service text and parts lists support text search, but wiring-diagram labels and some catalog introductory content do not. Service-section bookmarks are included; the bookmark labeled “PARTS CATALOG 02-03” opens the earlier catalog. Small wiring labels are readable when enlarged.

Supplied as one printable, English-language 739-page PDF containing all three publications. The total includes both catalog covers, 11 memo pages and nine blank pages, including two marked intentionally blank.


Engine Overhaul, Driveline Service and ESP Diagnosis

The following selected coverage highlights major workshop tasks rather than reproducing the full contents. Other topics include recoil-starter repair and oil-temperature indicator testing.

  • Engine repair: Engine removal and installation, cylinder-head disassembly, valve-guide replacement, cylinder and piston inspection, and crankshaft/balancer service.

  • Fuel and lubrication: Constant-vacuum carburetor disassembly and reassembly, pilot-screw and high-altitude adjustments, oil-pump inspection, and oil-cooler and cooling-fan service.

  • Clutch and transmission: Centrifugal and change-clutch repair, gearshift-linkage service, crankcase separation, and inspection of transmission shafts, bushings and shift forks.

  • Front and rear drive: FM/FE front-differential overhaul and rear final-drive service, with backlash inspection, tooth-contact checks, bearing replacement and shim selection.

  • Brakes and chassis: Hydraulic front drum-brake service, mechanical rear drum-brake repair, brake bleeding, steering-shaft and tie-rod work, and suspension service.

  • Electrical diagnosis: Charging, ignition and starter-system tests, Electric Shift Program troubleshooting, connector checks, and separate USA and Canada wiring diagrams.

  • Parts identification: Engine and frame exploded views with reference numbers, quantities, model-specific applications, color tables, and part-number and description indexes.

The repair procedures are intended for qualified professional technicians with the proper training, tools and equipment.

Internal Engine Work and Carburetor Service

The cylinder-head chapter goes beyond routine adjustment to valve-seat inspection and refacing, rocker-arm and push-rod inspection, and camshaft removal and installation. Step-by-step procedures also cover centrifugal-clutch replacement and internal transmission work.

Transmission and crankshaft service require engine removal and crankcase separation. Component-specific torque tables and wear limits cover the related gears, bushings, shafts and shift forks, helping a technician assess the work before disassembly.

The dry-sump lubrication section is supported by an Oil Management System Drawing showing the integral crankcase oil tank. Carburetor procedures address the vacuum diaphragm, air cut-off valve, float valve and jets; the cleaning cautions explain how using wire in the passages can damage the carburetor body.

Suretrac Differential, Brakes and Steering

The A.P. Suretrac torque-biasing front differential receives component-level coverage, including face cams, cam followers and limited-slip torque inspection. Gear Tooth Contact Pattern Check illustrations support pinion and ring-gear assessment, and the manual identifies differential inspection tool 07KMK-HC50101.

Chassis procedures distinguish TM/TE and FM/FE wheel-hub arrangements. Brake coverage extends to master-cylinder and wheel-cylinder inspection, shoe replacement and waterproof seals, while steering and suspension chapters address tie-rod assembly, steering-shaft bearings and swingarm pivots.

ESP Fault Tracing and Electrical Repair

The ESP chapter separates the earlier troubleshooting flowcharts from the later blink-code diagnosis table. Its component diagram and circuit tests help distinguish angle-sensor, switch, wiring and control-motor faults before an ECU is replaced.

The shift control motor is replaced as an assembly; reduction-gear service is described separately and can be performed with the engine installed. The manual also warns that disconnecting ESP connectors while current is flowing can damage the ECU.

Electrical coverage includes ignition peak-voltage tests, alternator-stator replacement and starter-motor overhaul. Cable & Harness Routing illustrations support reassembly, while emission-control views explain the associated system layout.

Servicing these ATVs involves heavy mechanical components and pressurized brake fluid. Proper workshop safety protocols must be followed to prevent equipment damage or personal injury.

A Preview of Valve and Carburetor Specifications

The maintenance section specifies 0.15 mm (0.006 in) intake and exhaust valve clearance with the engine cold, below 35°C (95°F).

VE94A carburetor data includes a standard #130 main jet and an 18.5 mm (0.73 in) float level, checked with the float valve seated and the float arm just touching it. The float assembly is nonadjustable; separate instructions cover high-altitude jetting.
