Nissan Skyline R34 GT-R 1999 Service Manual Set

434 Pages • ZIP Download: 2 Printable PDFs (English)

4.5starstarstarstarstar_half(4)
$17.80 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Nissan Models Covered & Key Technical Specifications

Models & Model Codes: Skyline R34 GTR (GF-BNR34)

Sub-models / Variants: GT-R (GGJPRVYR34ZDA), GT-R V-spec (GGJPRWYR34ZDA)

Model Year: 1999

Serial Numbers: From BNR34-000001


  • Engine: RB26DETT

  • Transmission: ETX13A 6-speed manual

  • Rear Differential Carrier: R200H, R200Z

  • Base Idle Speed: 900 rpm

  • Target Idle Speed: 950±50 rpm

  • Ignition Timing: 20°±1° BTDC at 900 rpm (feedback control canceled)

  • Fuel Pressure (at idle): 0.25 MPa (2.5 kg/cm²)

  • Fuel Pressure (with vacuum hose disconnected): 0.29 MPa (3.0 kg/cm²)

  • Hydraulic Accumulator Tightening Torque (reference): 40–41 N·m (4.0–4.2 kg-m)

  • Air Bleeder Tightening Torque: 5.9–9.8 N·m (0.6–1.0 kg-m) at the transfer and final-drive actuators; 5.9–7.8 N·m (0.6–0.8 kg-m) at the E-TS / ATTESA E-TS PRO hydraulic-unit suction-line bleeder

Nissan Manual Features & Selected Content Preview

Publication Pages
1999 R34 Supplement-I — Right-hand-drive, two-door GT-R and GT-R V-spec; RB26DETT twin-turbo engine, ETX13A manual transmission, four-wheel drive, and Electric Super HICAS. 204
R34 initial-production service reference, Publication No. SM8E-0R34J0 — RB20DE, RB25DE, and RB25DET applications, including manual and automatic transmission configurations. 230

Supplement-I documents changed or newly introduced GT-R systems and refers to the included initial-production reference for supporting information.

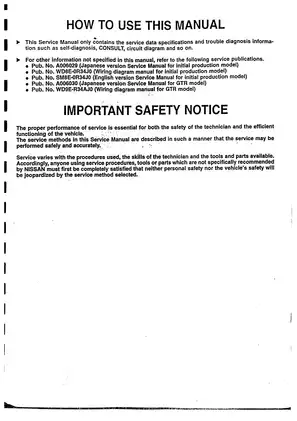

Coverage limits: Both publications concentrate on service-data specifications and trouble diagnosis. They refer readers to separate Japanese workshop manuals and full wiring-diagram manuals for other procedures; those publications are not included. The RB26DETT section focuses on engine controls rather than a full internal engine overhaul.

PDF Search, Bookmarks, and Diagram Detail

Search and navigation: The initial-production reference has searchable OCR text and embedded PDF bookmarks for its main sections and selected subsections. Supplement-I has neither text search nor embedded bookmarks. Small wiring labels in both files require zooming; the RB26DETT engine-control circuit is presented sideways.

This 434-page PDF set is supplied as a ZIP download containing two printable English PDFs. The publication totals include six cover/front-matter pages and two blank pages.


Engine Controls, ATTESA Hydraulics, and Electronic Diagnosis

The following highlights are selected coverage, not a complete contents list. Additional topics in the initial-production reference include remote-control entry and xenon-headlamp troubleshooting.

  • RB26DETT engine controls: System descriptions, vacuum-hose routing, component locations, fail-safe functions, self-diagnosis, symptom charts, and ECM input/output reference data.

  • ATTESA hydraulic service: Step-by-step procedures for fluid inspection, air bleeding, evacuation, pressure testing, lock inspection, and actuator, accumulator, and hydraulic-line replacement.

  • GT-R and V-spec control systems: Separate E-TS/ABS and ATTESA E-TS PRO diagnostic sections, with hydraulic circuits, component checks, active tests, and symptom-based fault isolation.

  • Electric Super HICAS: Pre-inspection, circuit testing, control-unit terminal specifications, CONSULT and manual self-diagnosis, malfunction-code charts, and system-specific symptom checks.

  • GT-R electrical systems: NATS, multi-function display, SRS seat-belt pretensioners, fully automatic air conditioning, combination meter, warning systems, rear defogger, and heated mirrors.

  • Initial-production diagnostics: Engine and automatic-transmission controls, ABS/TCS, SRS, climate control, and body-electrical troubleshooting for the configurations covered by the baseline publication.

  • GT-R service data: Recommended fluids, engine mechanical specifications, clutch, transmission, transfer, rear final drive, drive shaft, suspension, wheels and tires, brakes, steering, and Super HICAS.

This is specialized diagnostic and specification material suited to technicians and experienced owners who can interpret circuit diagrams, control-unit terminal data, CONSULT displays, and hydraulic test procedures.

Engine Testing and Driveline Service

The RB26DETT checks include idle-speed and ignition-timing inspection and adjustment, air/fuel-ratio inspection, fuel-pressure testing, and fuel-cut verification. ECM reference tables pair terminal measurements with oscilloscope waveforms and the applicable operating conditions.

Transfer-system coverage distinguishes standard ATTESA E-TS from the V-spec E-TS PRO arrangement with its active rear differential. Applicable bleeding, pressure, and lock checks include methods with and without CONSULT. These separate procedures help identify the correct hydraulic circuit and diagnostic routine before repair or actuator replacement.

The service-data sections provide inspection limits, adjustment data, shim selections, and component-specific torque specifications. These tables support the documented checks but do not replace the workshop procedures referenced elsewhere.

Circuit Diagrams and CONSULT Diagnosis

Representative drawings include the RB26DETT engine-control circuit and ECM terminal layout, ATTESA E-TS PRO hydraulic circuit, and E-TS/ABS system diagram. Electric Super HICAS, fully automatic air-conditioning, and multi-function-display circuits provide further system-specific references.

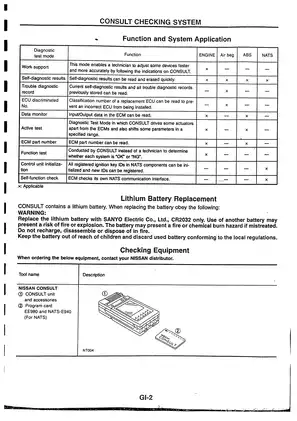

CONSULT tables extend beyond stored codes to monitored signals, active tests, fail-safe states, and control-unit input/output values. Diagnostic charts address wheel-speed and G sensors, throttle position, hydraulic pressure switching, E-TS and active-LSD solenoids, and HICAS steering-angle and yaw-rate signals.

NATS and display faults: The immobilizer section covers key recognition, ECM/IMMU communication, and lock-mode diagnosis. Initialization and key registration require CONSULT hardware and NATS software, with operating-manual references. Multi-function-display coverage includes sensor checks, symptom diagnosis, and initial throttle-position adjustment.

Initial-Production Reference and Repair Precautions

The baseline publication adds automatic-transmission line-pressure and stall tests, shift-lock and reverse-buzzer circuits, and related CONSULT monitoring. Its electrical sections include power-window, central-locking, meter, and other body-system checks.

Test probes must not spread control-unit connector terminals, which can compromise electrical contact. The ATTESA accumulator contains high-pressure nitrogen and must not be disassembled or exposed to welding.

Fuel and ATTESA hydraulic circuits must be depressurized before service, and the applicable Nissan safety instructions should be followed whenever repair work involves pressurized fluid, the brake system, SRS components, or electrical testing.

Selected Rear Final-Drive Inspection Limits

For the R200H and R200Z rear final drives, the service-data tables specify drive-gear runout of less than 0.05 mm at the reverse side of the gear. The listed drive-gear backlash is 0.13–0.18 mm.

The R200Z has a separate pressure-ring clearance specification of 0–0.05 mm, accompanied by a pressure-ring shim table. These entries illustrate the differential-specific inspection and adjustment data included in Supplement-I.
