Nissan Skyline R34 & GT-R Service Manual Set (1999–2002) (P/N SM8E-0R34J0)

447 Pages • 1 Printable PDF (English) • Download

4.7starstarstarstarstar_half(3)
$18.49 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Nissan Models Covered & Key Technical Specifications

Models: Skyline R34, Skyline R34 GT-R

Models & Model Codes:

Skyline R34 — GF-HR34, GF-ER34, GF-ENR34

Sub-models / Variants:

  • 20GT 2-door Coupe (M/T: GGHAREFR34EDA, A/T: GGHAREAR34EDA) and 20GT 4-door Sedan (M/T: BGHAREFR34EDA, A/T: BGHAREAR34EDA) — RB20DE (L/B), 5-speed manual FS5W71C or 4-speed automatic RE4R01B (4AX03).

  • 25GT 2-door Coupe (M/T: GGKAREFR34EDA, A/T: GGKAREAR34EDA), 25GT / 25GT-X 4-door Sedan A/T (BGKAREAR34EDA), and 25GT-X 4-door Sedan M/T (BGKAREFR34EDA) — RB25DE, 5-speed manual FS5W71C or 4-speed automatic RE4R01B (4AX01), as listed for each variant.

  • 25GT TURBO 2-door Coupe (M/T: GGKBRTFR34UDA, A/T: GGKBRTAR34UDA) and 25GT TURBO 4-door Sedan (M/T: BGKBRTFR34UDA, A/T: BGKBRTAR34UDA) — RB25DET, 5-speed manual FS5R30A or 4-speed automatic RE4R01B (4AX00), 2WD with Electric SUPER HICAS.

  • The listed 20GT, 25GT and 25GT-X model codes specify 2WD. The engine-control chapter also includes RB25DE 4WD circuit information. The automatic-transmission chapter covers E-ATx and Dual matic M-ATx.

Skyline R34 GT-R — GF-BNR34

Sub-models / Variants:

  • GT-R 2-door Coupe (GGJPRVYR34ZDA) and GT-R V spec 2-door Coupe (GGJPRWYR34ZDA) — RB26DETT, 6-speed manual ETX13A, 4WD with SUPER HICAS.

Model Years: 1999–2002 (1999, 2000, 2001, 2002)

Serial Numbers: GF-HR34: From HR34-000001, GF-ER34: From ER34-000001, GF-ENR34: From ENR34-000001, GF-BNR34: From BNR34-000001


  • Engine Types: Inline-6 (RB20DE, RB25DE, RB25DET, RB26DETT)

  • Intake Valve Clearance (Cold): 0.31 ± 0.04 mm (RB20DE, RB25DE, RB25DET); 0.45 ± 0.03 mm (RB26DETT)

  • Fuel Tank Capacity: Approx. 65 liters (17.2 US gal)

  • Cooling System Capacity: Approx. 9.4 liters (2.5 US gal) for RB20DE, RB25DE and RB25DET; approx. 9.0 liters for RB26DETT; including reservoir at MAX level

  • ECM/TCM Layout: 104-pin digital ECM control (RB20DE, RB25DE, RB25DET; TCM integrated on RB20DE/RB25DET A/T models); 76-pin digital ECM control (RB26DETT)

Nissan Manual Features & Selected Content Preview

Publication Pages

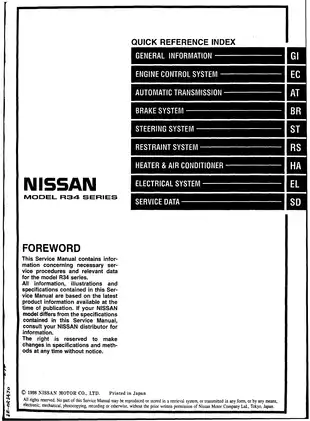

Nissan R34 Service Manual (P/N SM8E-0R34J0) — Skyline GF-HR34, GF-ER34 and GF-ENR34, including 20GT, 25GT, 25GT-X and 25GT TURBO coupe and sedan variants 230
Nissan R34 Service Manual Supplement-I — GF-BNR34 GT-R and GT-R V spec 204

The base manual covers initial-production diagnostics and service specifications. Supplement-I adds GT-R-specific engine, driveline and electrical coverage and refers back to the base manual for selected procedures.

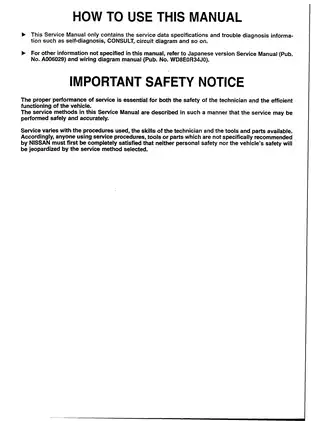

The set focuses on diagnosis, service data and selected repairs. For work beyond these procedures, including full overhauls and complete vehicle wiring references, Nissan directs readers to separate Japanese service manuals and wiring-diagram publications.

Text Search, Bookmarks and Wiring Detail

Search and navigation: OCR text search covers most of the base manual, and the maintenance checklists have searchable text. Bookmarks jump to the base chapters and the start of each addition. Use the printed index for Supplement-I, whose pages lack searchable text. Small wiring labels need zooming, and some diagrams are printed sideways.

The download is one printable English PDF with 447 pages, including the covers and introductory pages, two blank pages within Supplement-I, and 13 appended pages of maintenance checklists.


Engine, Transmission and ATTESA Diagnostics

Selected topics are listed below. The base manual also covers combination-meter removal and wiper and deicer circuits.

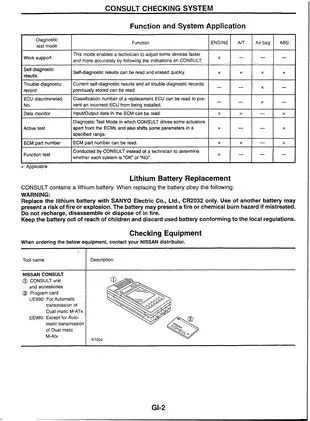

  • Engine controls: Idle-speed and ignition-timing adjustments, air/fuel ratio and fuel-pressure checks, CONSULT diagnosis, and ECM signal references for RB20DE, RB25DE, RB25DET and RB26DETT.
  • Automatic transmissions: RE4R01B/4AT and Dual matic M-ATx diagnosis, including shift-lock circuits, fail-safe operation, line-pressure and stall tests, and clutch-and-band charts.
  • GT-R driveline: Step-by-step procedures for bleeding and evacuating the E-TS and ATTESA E-TS PRO hydraulics, plus pressure and lock checks and actuator and accumulator replacement.
  • Chassis and restraints: ABS, TCS, Electric SUPER HICAS and SRS diagnostics, with warning-lamp interpretation, circuit diagrams and control-unit signal references.
  • Body electrical: Central locking, remote entry, power windows, xenon headlamps and sunroof circuits, plus GT-R NATS immobilizer and multi-function display diagnosis.
  • Climate control: Automatic A/C performance and gauge-pressure tests, built-in self-diagnosis, door-actuator checks and deodorizing filter replacement.
  • Service references: Clutch, transmission, final-drive, axle, suspension and steering specifications, component torque tables, and maintenance checklists with separate guidance for severe driving conditions.

The set suits technicians and experienced owners who can read electrical diagrams and use pressure gauges and the applicable Nissan CONSULT functions.

ECM Signals and Automatic Shift Tests

ECM/TCM terminal layouts and input/output tables identify mass airflow, knock and crankshaft or camshaft position signals. The automatic-transmission chapter distinguishes the integrated controller on RB20DE and RB25DET models from the separate RB25DE ECM and TCM, helping you match electrical tests to the correct setup.

Diagnostic Test Modes I and II sit alongside CONSULT data monitoring, active tests and function tests. Vacuum hose drawings and symptom matrix charts help narrow down sensor and actuator faults behind starting, idle and drivability complaints.

Shift pattern charts distinguish operating modes and throttle openings. The line-pressure section explains how to interpret test results and specifies Nissan pressure gauge ST2505 S001. Follow Nissan’s fuel-system precautions before connecting a pressure gauge to check fuel pressure.

GT-R Hydraulics and Mechanical Service Data

The standard GT-R uses E-TS/ABS. The V spec uses ATTESA E-TS PRO, which combines transfer control, the active limited-slip differential and ABS. Hydraulic circuit diagrams and component-location views help trace pressure and driveline faults, including faults involving the V spec’s active differential.

The removal and installation procedures also cover hydraulic lines. Prolonged direct-power testing can overheat the E-TS actuator motor, and impact or dropping can damage the G sensor.

Mechanical service data for the FS5W71C, FS5R30A and ETX13A manual transmissions includes adjustment and tightening references. The tables also cover front and rear final drives, propeller shafts, drive shafts, suspension components and steering gear.

Body Electronics and Fault-Code Access

ABS fault-code retrieval uses the diagnostic connector. The SRS chapter covers ignition and driver-door switch self-diagnosis, CONSULT checks and fault charts for airbags and seat-belt pretensioners. Nissan warns that current from an ordinary circuit tester can activate the restraint system.

The remote-entry ID Code Entry Procedure covers replacement and additional transmitters. GT-R NATS diagnosis requires CONSULT with NATS software. Initialization and ignition-key registration procedures are in the separate CONSULT NATS operation manual.

The GT-R multi-function display section covers sensor checks, symptom diagnosis and initial throttle-position adjustment. Automatic climate-control diagnosis also covers the magnetic clutch and blower motor circuits.

A Preview of Fuel Pressure and E-TS Solenoid Resistance

The fuel-pressure reference for RB20DE, RB25DE, RB25DET and RB26DETT is 0.25 MPa (2.5 kg/cm²) at idle and 0.29 MPa (3.0 kg/cm²) with the pressure-regulator vacuum hose disconnected.

For the standard GT-R E-TS/ABS actuator, the component checks list approximately 6 Ω across the disconnected E-TS solenoid and approximately 11 Ω across the disconnected fail-safe solenoid.
