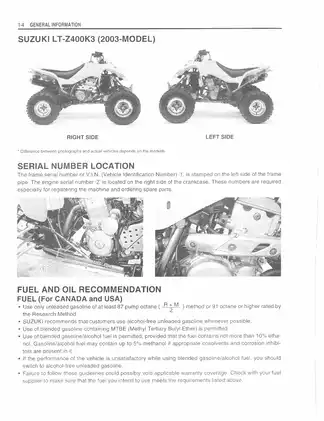

Suzuki LT-Z400K3 ATV Service & Parts Manual Set — 2003

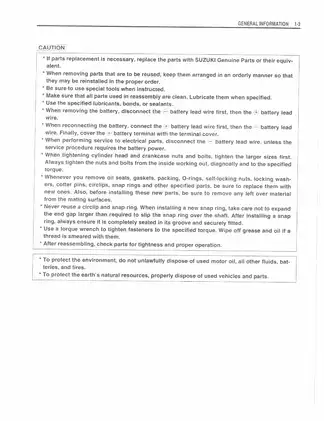

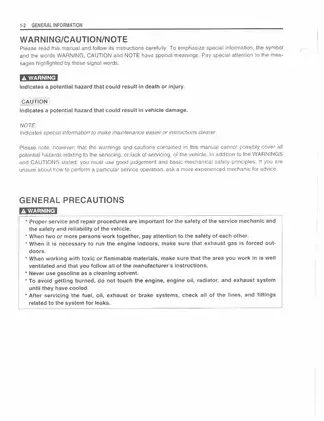

The service manual provides workshop procedures, while the parts catalog pairs exploded views with component callouts and replacement-part numbers. Assembly instructions belong to the service manual.

PDF Search, Bookmarks and Diagram Detail

Navigation and wiring labels: Technical pages do not support PDF text search. Embedded bookmarks open the service sections and parts catalog. Small wire-color codes in the full wiring diagram require zooming.

One printable PDF contains 378 pages, including one additional reference-link page. The service-manual total above includes two blank pages and two repeated pages.

Engine Repair and ATV System Diagnosis

These selected coverage highlights outline the main workshop areas. Other documented topics include spark-arrester cleaning and reverse-lock release cable adjustment.

• Periodic maintenance: Service schedules, valve-clearance adjustment, tappet-shim selection tables, oil and filter changes, spark-plug inspection, and drive-chain adjustment.

• Engine and drivetrain: Step-by-step engine removal, crankcase separation, cylinder-head service, clutch repair, and transmission disassembly and reassembly.

• Fuel system: Fuel-valve inspection, MIKUNI BSR36 carburetor disassembly and cleaning, needle-valve inspection, float-height adjustment, and regional specification tables.

• Cooling and lubrication: Cooling-circuit pressure checks, radiator-cap testing, thermostat and fan-switch checks, water-pump seal replacement, and lubrication-system diagrams.

• Brakes and chassis: Caliper and master-cylinder service, hydraulic brake bleeding, steering alignment, suspension adjustments, and swingarm and rear-axle bearing replacement.

• Electrical diagnosis: Charging, starter and CDI ignition troubleshooting charts, coil tests, starter-motor overhaul, and the complete wiring diagram.

This set suits mechanics familiar with engine measurements and electrical fault tracing who have the workshop tools required for internal repairs.

Engine Inspection and Reassembly

The manual provides factory baselines for periodic maintenance and overhaul planning. Compression and oil-pressure checks connect test results with possible internal faults, helping determine which components need closer inspection.

Internal measurements: Cylinder-bore, piston-ring, conrod and crankshaft inspections include service limits. Valve-seat cutter-angle drawings and camshaft-journal checks extend the cylinder-head coverage beyond routine valve adjustment.

Drivetrain assembly: Transmission cross sections show gear, washer and snap-ring positions. Clutch illustrations distinguish drive-plate arrangements, while balancer-shaft and driven-gear drawings identify assembly marks. Crankcase illustrations show sealant application points alongside component-specific torque specifications.

Starter one-way clutch checks cover directional operation, and starter torque-limiter inspection includes slip-torque testing. The camshaft/automatic decompression assembly and torque limiter are treated as non-serviceable units.

Repair cautions: Crankcase disassembly notes warn that releasing the oil-pump idler-shaft retaining ring too early can let the shaft fall inside. Oil-filter illustrations identify the cap’s triangle alignment mark and warn that incorrect filter installation can seriously damage the engine.

Carburetor, Cooling and Oil Circuits

Regional carburetor tables distinguish USA/Canada and California specifications, including identification numbers and pilot-screw differences. Needle-valve inspection addresses overflow faults, while float-height guidance supports fuel-level checks.

Cooling-system coverage separates fan-motor testing, fan thermo-switch checks and coolant-temperature warning-switch tests. The cooling-system illustration and Engine Lubrication System Chart trace coolant and oil circulation through the engine, radiator, oil tank and pump components.

Brake, Steering and Suspension Service

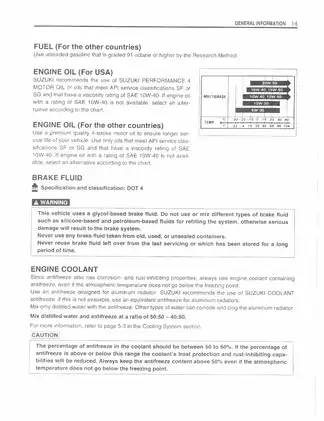

Brake inspection data include disc-thickness and runout limits, plus caliper and master-cylinder measurements. Maintenance charts also specify brake-fluid classification and cold tire-inflation pressures.

Chassis procedures cover front wishbone pivots, steering-shaft bushings and rear suspension linkage bearings. Rear-shock coverage includes removal, inspection, preload and damping adjustment; the sealed shock is replaced as a unit. Brake work requires the manual’s fluid-handling precautions and operating checks.

Electrical Fault Tracing and Workshop Tools

Charging and no-spark flowcharts link symptoms to generator, regulator/rectifier, pickup-coil and CDI checks. Starter-system drawings show the clutch and neutral-switch circuits, supporting fault tracing before replacement parts are selected.

Special-tool references identify equipment required for the documented work, including crankcase separating tool 09920-13120 and multi-circuit tester 09900-25008.

Valve, Idle and Coolant Specification Examples

Valve checks: Cold tappet-clearance specifications for the LT-Z400K3 are 0.10–0.20 mm intake and 0.20–0.30 mm exhaust.

Idle and coolant data: Idle speed is specified at 1,500 ± 100 r/min with the engine hot. Coolant capacity is 1.2 L, including the reserve tank.
