2007 Arctic Cat Crossfire, F-Series, M-Series, Panther, Z, Bearcat Snowmobile Service Manual Set

1,182 Pages • Printable PDF • 233.35 MB • Download

4.7starstarstarstarstar_half(3)
$17.69 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Arctic Cat Models Covered & Key Technical Specifications

Models: Panther 370 (engine AA37A9), Z 370 (engine AA37A9), Bearcat 570 (engine AA56A6), Panther 570 (engine AA56A6), Z 570 (engine AA56A6), Crossfire 500 (engine AX50L6), Crossfire 600 (engine AJ60L4), Crossfire 800 (engine AB80L1), Crossfire 1000 (engine AB10L1), M-Series 600 / M6 (engine AJ60L4), M-Series 800 / M8 (engine AB80L1), M-Series 1000 / M1000 (engine AB10L1), F-Series 500 / F5 (engine AX50L6), F-Series 600 / F6 (engine AJ60L4), F-Series 800 / F8 (engine AB80L1), F-Series 1000 / F1000 (engine AB10L1), AC 120 (engine AA12A2), Bearcat Wide Track (engine K6A-B), Panther 660 (engine K6A-B), T660 Touring (engine K6A-B), T660 Turbo Touring (engine K6A-B), T660 Turbo Trail (engine K6A-B), Jaguar Z1 (engine AA11L1)

Sub-models / Variants: EFI Models, Carbureted Models, Electric Start Models, APV Models, Non-APV Engines; Bearcat Wide Track Non-Turbo and Turbo; Panther 660 Touring and Trail; Jaguar Z1 early-build and regular-build ACT gear cases

Model Years: 1997–2007 (1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007)


  • Engine displacement options: 367 cc, 499 cc, 565 cc, 599 cc, 794 cc, 999 cc (two-stroke engines)

  • Cooling systems: Fan Cooled, Liquid Cooled

  • Fuel system: EFI, Carbureted; Oil Injection lubricates the two-stroke engines

  • Spark plug (standard): BR9EYA (two-stroke engines), BPR6ES (AC 120), KR8AI (660 cc non-turbo/turbo models), CR8EKB (Jaguar Z1)

  • Compression ratios: 6.30:1 to 6.46:1 (two-stroke engines)

  • Ignition type: CDI/NOI (370/500/570/800/1000 cc two-stroke engines), CD/NOI (600 cc two-stroke engines), Transistorized (AC 120/Jaguar Z1)

  • Lighting coil output: 12V/185W to 12V/280W (two-stroke engines, at 3000 RPM)

  • Drive variants: Centrifugal clutch and chain drive (AC 120); standard driven pulley and chain case (Bearcat 570, Panther 370/570, Z 370/570, Bearcat Wide Track Non-Turbo, Panther 660, T660 Touring); ACT Roller Driven Pulley with chain case (660 cc turbo models); ACT Roller Driven Pulley with ACT gear case (Crossfire/F-Series/M-Series, Jaguar Z1)

Arctic Cat Manual Features & Selected Content Preview

Publication Pages
2007 Two-Stroke Snowmobile Service Manual — Bearcat 570; Panther 370/570; Z 370/570; Crossfire 500/600/800/1000; M-Series 600/800/1000; F-Series 500/600/800/1000 648
2007 Four-Stroke Snowmobile Service Manual — AC 120; Bearcat Wide Track non-turbo/turbo; Panther 660; T660 Touring and Turbo Touring/Trail; Jaguar Z1 534

The separate engine-family procedures and clutch-calibration charts help match the repair method and drive setup to the snowmobile being serviced.

EFI diagnostic limits: Testing the two-stroke 800/1000 EFI system refers to the separate EFI Diagnostic System Manual P/N 2257-850. Certain four-stroke EFI component tests refer to Arctic Cat Diagnostic System Manual P/N 2256-974 or Laptop Diagnostic Tool P/N 0744-048. These diagnostic manuals are not included.

Text Search, Bookmarks and PDF Layout

Search and drawing detail: Text search covers the main text in both manuals; some drawing labels are not searchable. Embedded bookmarks open both manuals and their nine main sections. Small ignition-schematic labels are clearer when zoomed.

One printable, 1,182-page PDF combines both manuals. The total includes two added cover pages, one at the start of each manual.


Engine, EFI, Clutch and Suspension Service

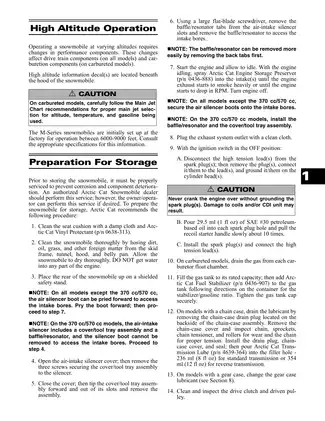

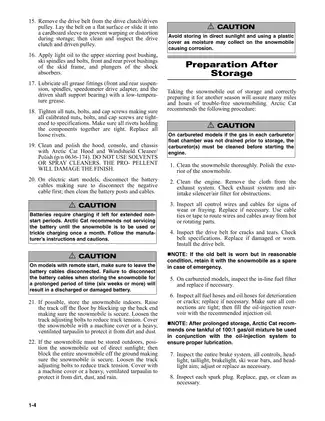

The following selected service topics outline the coverage rather than reproduce the full contents. Other subjects include storage preparation and post-break-in checklists.

  • Engine repair: Step-by-step engine removal, disassembly, component inspection, reassembly and installation for the covered two- and four-stroke engine families.

  • Fuel and EFI: Carburetor overhaul and synchronization, throttle-body and TPS service, self-diagnostic codes, injector and sensor checks, and fuel-pressure testing.

  • Ignition and starting: Resistance and peak-voltage tests, CCU/ECU checks, APV servomotor and potentiometer testing, charging-system diagnosis, and starter-motor service.

  • Clutches and drive systems: Standard and ACT roller driven-pulley repair, chain-case and gear-case service, performance calibration, driveshaft and brake-disc work.

  • Brakes and chassis: Hydraulic master-cylinder and caliper repair, mechanical brake adjustment, steering-component service, ski alignment and related troubleshooting.

  • Track and suspension: Skid-frame repair, track alignment, drive-sprocket timing, rebuildable-shock overhaul, oil filling, air bleeding and nitrogen charging.

  • Drawings and specifications: Assembly and cooling schematics, component-location views, torque patterns and tables, capacities, clearances, wear limits and electrical test specifications.

This set suits technicians and experienced snowmobile owners with the pullers, pressure-testing equipment, electrical meters and shock-service equipment required for the documented work.

Engine Internals, Cooling and Lubrication

Two-stroke sections cover pistons, cylinders, reed valves, crankshafts, recoil starters and water pumps, with separate Arctic Power Valve (APV), Exhaust Controlled Timing (ECT) and engine pressure-testing material. Oil-injection coverage includes pump synchronization, bleeding and check-valve testing.

The four-stroke material adds camshaft and timing work, valve inspection and adjustment, compression and oil-pressure testing, oil-flow charts, water-pump repair, and 660 oil-pump/pressure-relief-valve service. Turbocharger and intercooler service is also included.

The 660 valve section directs valve, guide and seat reconditioning to a qualified machine shop.

Oil-pump cautions explain how misaligning the control-rod socket and ball can damage the connector. The 660 sections also address oil entering the upper engine after excessive tipping and the risk of severe damage on restart.

Fuel Diagnosis and Electrical Tests

Carbureted models receive main-jet selection and detailed cleaning, inspection and adjustment procedures. The two-stroke EFI material separates the 500/600 and 800/1000 systems; the 500/600 section explains dashboard code retrieval and references the separate EFI Analyzer Usage Manual P/N 2259-020 for analyzer use.

Chassis electrical tests cover sensors, warmers, reverse alarms and shift actuators, with model-specific terminal and wire-color references.

Drive Variants, Bodywork and Shock Service

The drive chapters distinguish standard chain-case and ACT gear-case layouts, reverse and non-reverse systems, and clutch calibrations for trail, mountain, touring and utility applications.

Steering and body procedures extend to steering posts, tie rods, spindles, suspension arms, panels, seats, tanks, lighting and controls.

Rear-suspension charts identify skid-frame mounting, track applications and spring choices. Rebuildable-shock sections distinguish ACT, Fox and position-sensitive designs, with valving and piston-location data. The shock chapters require pressure release before disassembly and specify nitrogen for charging.

Schematics and Referenced Workshop Tools

Named references include Assembly Schematics, Cooling System Schematics, Electrical Components Location Schematics and Cooling System Flow/Component Schematics. Suspension references add Slide Rail/Articulating Skid Frame Schematics and Drive Sprocket/Timing Marks Location. A separate model-by-model wiring-diagram supplement is not included.

Engine-tool references include Clutch Puller P/N 0644-207, Flywheel Puller P/N 0744-040 and Piston-Pin Puller P/N 0644-328.

Fuel-system work references EFI Analyzer Kit P/N 0744-049 and Fuel Pressure Test Kit P/N 0644-493; shock service references Nitrogen Regulator P/N 0644-151.

Examples of Valve Clearances and ACT Fluid Capacities

For the 660 cc engines, cold exhaust-valve clearance at 59–77°F is 0.18–0.23 mm on non-turbo models and 0.30–0.35 mm on turbo models. The specifications accompany the valve-inspection and adjustment coverage.

Jaguar Z1 gear-case reassembly data distinguishes an 8 fl oz ACT Drive Fluid fill for early-build units from 12 fl oz for regular-build units.
