2008 Arctic Cat Crossfire 500, Crossfire 600, M-Series 600, M-Series 800, Panther 570, and Bearcat 570 Snowmobile Service Manual Set

The two manuals bring engine repair, electrical diagnosis, drivetrain service, and chassis procedures together, with separate specifications and procedures for the applicable models.

Combined PDF, Text Search and Chapter Bookmarks

Search and diagram detail: The main text is searchable, and embedded bookmarks open the chapters of both manuals. Some illustration labels are outside the searchable text layer. Small labels in component schematics and terminal views require enlargement.

One printable English-language PDF contains 1,119 pages: 647 pages of two-stroke documentation, 471 pages of four-stroke documentation, and one added introductory page already included in the total.

Engine, EFI, Drivetrain and Suspension Coverage

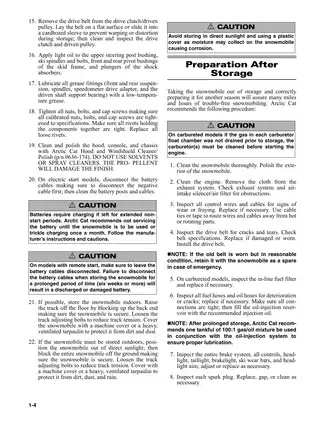

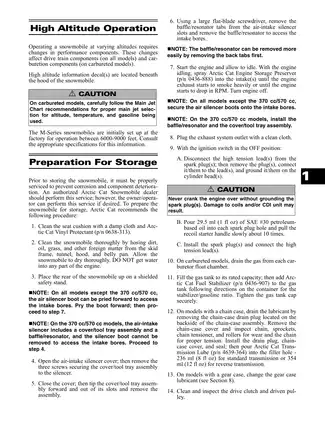

These content highlights are a selection from the manuals. Further topics include storage preparation and handlebar-warmer testing.

• Engine repair: Step-by-step engine removal, disassembly, component inspection, measurement, reassembly, and installation procedures for the covered two-stroke and four-stroke engines.

• Four-stroke valve and turbo service: Valve inspection and adjustment, camshaft and timing-chain work, compression testing, and turbocharger/intercooler removal and installation.

• Fuel and lubrication systems: Carburetor cleaning, adjustment and synchronization; EFI throttle-body service; oil-injection pump synchronization, bleeding, and testing.

• Electrical diagnosis: ECU and CCU fault codes, ignition resistance and peak-voltage tests, starter-motor service, and alternator or magneto procedures.

• Cooling and exhaust controls: Water-pump repair, engine pressure testing, cooling-system schematics, APV servicing, and Exhaust Controlled Timing system information.

• Clutches and brakes: Drive-clutch and driven-pulley service, belt alignment and deflection checks, chain-case and gear-case repair, and hydraulic or mechanical brake procedures.

• Steering, tracks and shocks: Steering-component replacement, ski alignment, skid-frame repair, track adjustment, and ACT, position-sensitive, Fox Air, and Fox Zero Pro shock servicing.

The measurement procedures, electrical test equipment, and specialized suspension work make this set suited to professional technicians, independent repair shops, and experienced DIY owners with appropriate workshop equipment.

Engine Inspection and Assembly References

Critical internal-engine checks are supported by piston-to-cylinder clearance, ring end-gap, crankshaft runout, piston replacement, and cylinder-head volume references. These give technicians the limits needed to evaluate parts before reassembly instead of relying on visual inspection alone.

Four-stroke coverage adds valve-train inspection, timing-chain installation, and bearing-selection charts tied to crankcase and crankshaft markings. The 1100 cc main-bearing section warns that replacing only one bearing half can cause severe engine damage.

Assembly schematics identify component relationships and specified sealing products, including Three Bond sealant 0636-070 and applicable Loctite thread lockers. General and component-specific torque information is accompanied by metric-to-imperial reference charts. Oil Flow Charts illustrate the four-stroke lubrication circuits.

EFI Fault Tracing and Diagnostic References

The diagnostic material addresses ignition coils, exhaust-temperature sensors, APV components, and chassis-control faults. Flash-code explanations and troubleshooting charts help narrow a fault to the relevant system before parts are replaced.

Electrical Components Location Schematics identify sensors and control units. The Electric Start Key Switch terminal view supports the accompanying switch-test table, while electrical specifications identify test connections and reference readings.

Some analyzer-based EFI work refers to separate publications: EFI Diagnostic System Manual 2257-850, EFI Analyzer Usage Manual 2259-020, and Arctic Cat Diagnostic System Manual 2256-974. Those referenced manuals and diagnostic tools are not included in this PDF.

Drive Alignment, Brake Repair and Skid-Frame Service

The drivetrain chapters distinguish standard chain-case arrangements, including procedures with and without reverse, from ACT gear-case systems. ACT roller-driven-pulley coverage also includes the four-stroke Bearcat Wide Track Turbo.

Clutch-alignment information specifies different tools for Crossfire/M-Series and F-Series applications. The ACT pulley section also warns that allowing the driven pulley to float on the output shaft can damage the pulley.

Suspension servicing charts direct the reader to the appropriate skid-frame procedure. The four-stroke material includes the Bearcat Wide Track articulating skid frame and separate Jaguar Z1 and TZ1 rear-suspension procedures. Shock sections provide disassembly, inspection, bleeding, and recharging information for the applicable rebuildable units.

Proper maintenance and repair require following the safety instructions, torque values, and service limits given in the documentation. Rotating engine and drivetrain components, electrical systems, and precision engine assemblies should be serviced only with the machine secured and the applicable manual procedure understood before work begins.

APV Cable and Cold Valve-Clearance Examples

For two-stroke APV systems, the cable-length specifications are 36.0 ± 1 mm for the 600 cc engine and 35.0 ± 1 mm for the 800/1000 cc engines.

The four-stroke 660 cc tables list cold exhaust-valve clearance at 0.18–0.23 mm for non-turbo engines and 0.30–0.35 mm for turbo engines, with the engine at 59–77°F. These separate specifications distinguish the two valve-train applications.
