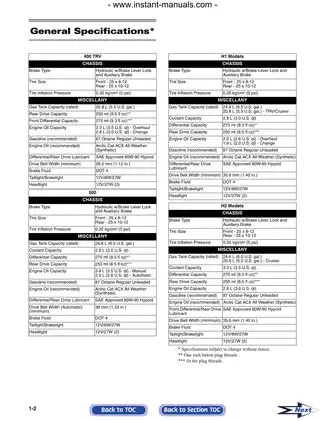

Arctic Cat Models Covered & Key Technical Specifications

Models: 400 TRV, 500, 550, 700, 1000 Thundercat

Sub-models / Variants: Manual Transmission (500), Automatic Transmission (400 TRV, 500, H1 Models, H2 Models), H1 Models (550, 700), H2 Models (Thundercat), TRV (550 H1 TRV), Cruiser (550/700 H1 Cruiser, H2 Cruiser), Mud Pro (separate supplement required)

Model Year: 2009


  • Engine oil capacity (400 TRV): 3.3 L (3.5 U.S. qt) overhaul, 2.8 L (3.0 U.S. qt) change

  • Coolant capacity: 2.9 L (3.0 U.S. qt) to 3.3 L (3.5 U.S. qt) depending on model

  • Brake fluid specification: DOT 4

  • Headlight specification: 12V/37W (2) or 12V/27W (2)

  • Fuel octane rating: 87 minimum octane regular unleaded

  • Front tire size: 25 x 8-12

  • Rear tire size: 25 x 10-12

Arctic Cat Manual Features & Selected Content Preview

This English-language Arctic Cat factory service manual covers 2009 400 TRV; 500 Automatic and Manual; 550 H1 TRV; 700 H1 EFI; 550/700 H1 Cruiser; and 1000 H2 Thundercat and H2 Cruiser configurations. P/N 2258-380; copyrighted August 2008.

PDF Text Search, Navigation and Page Count

Search and illustration detail: Searchable text is available throughout the service sections. There are no embedded PDF bookmarks or active contents-page links. Small labels in fuse layouts and connector photos benefit from enlargement; some photo labels have low contrast.

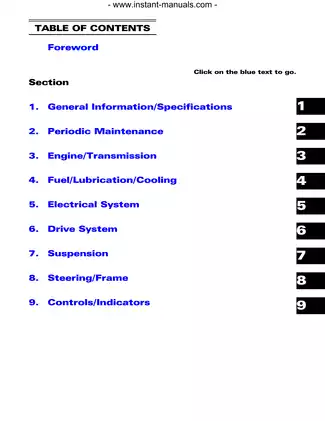

A single printable, 349-page PDF contains 347 section pages and two preliminary pages: the foreword and contents. The original cover is not included.


Engine Overhaul, EFI Testing and Chassis Service

The following selected contents highlight key workshop topics rather than reproduce the full contents. Further topics include storage preparation and speedometer/tachometer/LCD replacement.

  • Engine repair: Step-by-step engine removal and installation, top-end repair, valve and piston service, cam timing, crankcase separation, internal inspection, and reassembly.

  • Transmission service: Separate manual-clutch and multi-speed geartrain procedures, plus automatic drive and driven pulleys, V-belts, centrifugal and one-way clutches, and bevel-drive setup.

  • Fuel systems: Keihin carburetor disassembly and rebuilding, electric-choke testing, H1/H2 EFI throttle-body work, and electric and vacuum-pulse fuel-pump tests.

  • Lubrication and cooling: Oil-pressure testing, oil-cooler service, radiator and thermostat inspection, cooling-fan replacement, and configuration-specific water-pump procedures.

  • Electrical diagnosis: CDI and ECU system tests, starter and charging checks, sensor and actuator testing, ECU code retrieval and clearing, ignition-timing verification, and TPS adjustment.

  • Final drive: Front differential and electronic differential-lock service, drive-axle and CV-boot replacement, rear gear-case work, hub service, and troubleshooting charts.

  • Brakes and chassis: Hydraulic brake inspection, bleeding and pad burnishing; shock and A-arm service; steering-post, tie-rod and knuckle work; and toe-in adjustment.

Written to aid service personnel, this manual is best suited to technicians and experienced owners with established workshop skills, precision measuring equipment, and the specified service tools.

Engine Access and Internal Repair

The configuration-specific sections distinguish work that can be performed with the engine installed from repairs requiring removal. On H2 models, servicing the rear cylinder head, cylinder, or piston requires engine/transmission removal. These access notes help establish the required disassembly before work begins.

Internal coverage includes cylinder-head and valve inspection, piston rings, camshafts and rocker arms, starter and magneto components, oil pumps, bearings, seals, crankshafts, and installation checks. Valve, guide, and seat machining is referred to a qualified machine shop.

Manual Geartrains and Automatic Drives

The 500 Manual section follows the clutch, shift forks, shift cam, countershaft, driveshaft, reverse gearing, and output shaft through inspection and assembly. Recoil-starter service is also covered for the 500.

Automatic and H1/H2 sections distinguish CVT components from the internal transmission. Bevel-gear backlash, tooth-contact illustrations, and shim-correction charts support gear-mesh checks after shaft or gear replacement. The H2 driven pulley is replaced as an assembly rather than internally rebuilt.

Fuel, Lubrication and Cooling Differences

Carburetor procedures distinguish the 400’s Keihin CVK34 from the 500’s CVK36. EFI sections cover throttle-body removal and installation, fuel-pressure checks, and fuel-level-sensor testing.

Cooling procedures separate the serviceable 500 water-pump arrangements from H1/H2 pumps, which require complete assembly replacement. Oil-pressure testing includes model-specific connection points, test conditions, and diagnostic checks for readings outside specification.

ECU Fault Tracing and Electrical Tests

The ECU code list distinguishes active and stored faults. It covers CKP, H1 APS/H2 MAP, TPS, ECT, speed, IAT and tilt sensors, ignition coils, injectors, ISC, fuel-pump and cooling-fan relays, ECU power, and the H2 communication link.

Diagnostic-connector procedures include code retrieval, clearing, and the post-repair check. Component tests use resistance, voltage, peak-voltage, and charging specifications. Connector photos and fuse layouts accompany the tests; full vehicle wiring diagrams are not included.

Service Tools and Assembly Illustrations

Specified equipment includes Crankcase Separator/Crankshaft Remover 0444-009, Driven Pulley Compressors 0444-121 and 0444-140, Oil Pressure Test Kit 0644-495, Diagnostic Harness 0486-219, Test Plug/Error Code List 0444-216, and Pinion Gear/Shaft Removal Tool 0444-127.

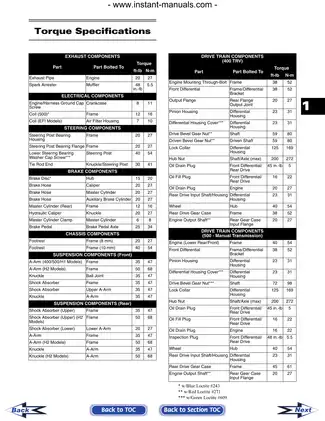

Illustrations include the carburetor schematic, water-pump assembly, clutch/oil-pump group, manual-transmission crankcase geartrain, cam-timing alignment views, and bevel-gear contact patterns. Reference tables cover component torques, fluids, engine clearances, wear limits, compression, clutch measurements, and electrical test values.

Coverage Limits and Repair Cautions

Y-12, T-14, DVX 300/250 Utility, and 366 models require separate service publications. 700 Mud Pro-specific work requires the separate supplement, which is not included here.

Brake-caliper and hand-master-cylinder procedures cover inspection and assembly replacement rather than internal rebuilding. Frame coverage includes crack and weld inspection, body panels, and racks; it does not provide frame-welding standards.

Direction-sensitive transmission dogs, gears, and bushings can cause shifting faults or serious damage if reversed or installed with misaligned oil passages. Unsupported axles can damage inner CV joints, and hanging calipers can damage their hoses.

Fuel-system work, spring-loaded clutch and recoil assemblies, hydraulic brakes, and repairs beneath a raised ATV require the support equipment, eye protection, and fuel-handling precautions specified in the manual.

Examples of Valve-Clearance and TPS Specifications

For H1/H2 engines, the cold valve-clearance specifications are 0.1016 mm intake and 0.1524 mm exhaust.

For EFI TPS checks with the ignition ON, the manual specifies approximately 0.60 DC volt at closed throttle and 4.0 DC volts at full throttle.
