1980 Suzuki SP400 Service & Repair Manual (99000-85660-0E3)

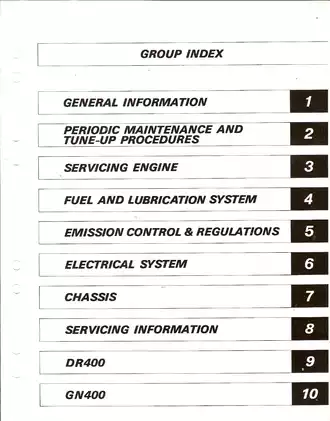

This Suzuki SP400 service manual covers maintenance, diagnosis, and repair for the 1980 model. The August 1980 printing carries cover reference 99000-85660-0E3. The DR400 and GN400 supplements listed in the group index are not included in this PDF.

• Periodic maintenance: Service schedules, manual cam-chain tensioner adjustment, valve-clearance checks, starter de-compressor cable adjustment, and brake and control adjustments.

• Engine repair: Compression and oil-pressure testing, engine removal and remounting, cylinder-head disassembly, valve-seat servicing, and piston and cylinder inspection.

• Clutch and transmission: Crankcase separation, crankshaft inspection, clutch-plate checks, transmission assembly, shift-fork inspection, and kick-starter service.

• Fuel and lubrication: Carburetor disassembly, fuel-level inspection, float-height adjustment, needle-valve checks, oil-pump inspection, and lubrication diagrams.

• Electrical diagnosis: CDI-unit and ignition-coil tests, magneto-coil resistance checks, charging and lighting output tests, switch-continuity tables, and a wiring diagram.

• Chassis service: Wheel-bearing replacement, expanding drum-brake inspection, telescopic fork repair, steering-stem service, and swingarm-bearing replacement.

Written primarily for experienced mechanics, this manual also supports apprentices and DIY mechanics with the tools and measuring skills needed for the work described.

Engine Repair, Valve Timing, and Transmission Assembly

The engine chapter separates upper- and lower-end disassembly, inspection, and reassembly. Valve-guide replacement and valve-seat cutting receive dedicated procedures, alongside camshaft-journal checks, piston-ring inspection, and crankshaft and connecting-rod measurements.

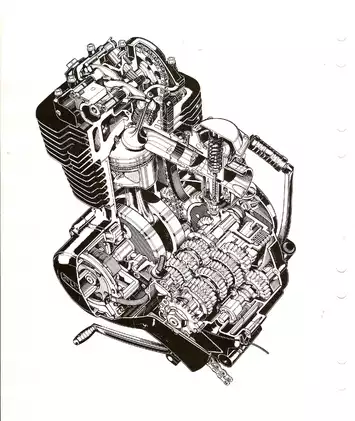

Engine cutaway views and the valve timing diagram support the mechanical descriptions. Transmission section views identify gear, washer, and circlip positions, while the starter de-compressor and kick-starter assembly illustrations explain their component relationships.

Assembly cautions: The cylinder-head cover section warns that tightening the cover with the tachometer driven gear fitted can break the cover. The transmission section identifies an oil-seal spacer whose reversed installation blocks oil delivery to the driveshaft.

Carburetor Service and Emission-Control Components

The Mikuni BS36SS material explains diaphragm and piston operation, then separates the slow, main, starting, and float systems. Fuel-level and float-height checks accompany needle-valve inspection for wear, sticking, and overflow.

Factory mixture calibration: The emission-control chapter identifies the close-tolerance main, needle, and pilot jets and the fixed jet-needle configuration. It describes the pilot screw as factory preset and sealed, rather than a routine mixture adjustment.

Lubrication diagrams trace oil distribution through the engine and transmission. The oil-viscosity chart and separate refill specifications distinguish routine oil changes, filter changes, and engine overhaul.

Ignition, Charging, and Wiring Diagnosis

The CDI terminal-resistance matrix and separate magneto- and ignition-coil tests help distinguish possible causes of weak or absent spark before components are replaced. Tool references include Suzuki pocket tester 09900-25002 and electro tester 09900-28106.

Charging and lighting checks provide their required test conditions and output specifications. The advance characteristics chart explains ignition behavior across engine speeds.

The main wiring diagram includes wire-color codes and switch connections. Wire- and cable-routing illustrations support reassembly, while troubleshooting tables connect starting, running, charging, and chassis complaints with possible causes.

Drum Brakes, Forks, and Steering

Chassis procedures cover brake-drum and lining inspection, wheel and axle checks, and front-fork damper and oil-seal service. Steering-stem work includes bearing-race installation and inspection of the bearing components.

Rear-suspension service addresses swingarm pivot wear, bearing replacement, and shock-absorber removal and remounting. Separate engine and chassis torque tables collect the related fastener specifications.

Servicing fuel and high-voltage ignition systems carries safety risks. Use appropriate protective equipment and a well-ventilated workspace, and follow the manual’s task-specific precautions.

A Preview of Valve, Head-Fastener, and Float-Height Data

These examples represent a small selection of the adjustment and fastening data in the manual.

The maintenance chapter gives a cold intake and exhaust valve setting of 0.08 mm (0.003 in); the service-data summary lists a cold-clearance range of 0.03–0.08 mm (0.001–0.003 in).

Cylinder-head specifications distinguish the four 10 mm nuts at 35–40 N·m (25.5–29.0 lb-ft), with the engine cold, from the two 6 mm nuts at 7–11 N·m (5.0–8.0 lb-ft).

Carburetor float height is listed as 25.4 ± 1.0 mm (1.00 ± 0.04 in), with the gasket removed and the free float arm just contacting the needle valve.

PDF Search, Diagram Detail, and Included Pages

Search and navigation: PDF text search and embedded bookmarks are not available. Small wire-color codes and CDI schematic labels are legible when enlarged. The file skips printed page 1-7, listed in the contents as “Precautions and General Instructions.”

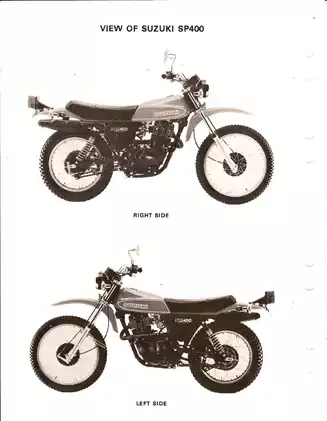

One printable English PDF contains 154 pages total. That total already includes five introductory pages—the cover, motorcycle views, foreword, group index, and engine cutaway—and eight section contents pages.
