Suzuki Models Covered & Key Technical Specifications

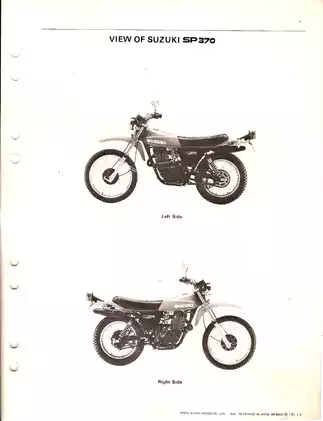

Model: SP370

Model Year: 1978


  • Engine type: Four-stroke, air-cooled, SOHC, single-cylinder

  • Displacement: 369 cc

  • Transmission: 5-speed constant mesh

  • Carburetor: Mikuni VM32SS

  • Front suspension: Telescopic, oil dampened

  • Rear suspension: Swinging arm, gas/oil dampened, 5-way adjustable spring

  • Ignition system: Magneto with 10° B.T.D.C. (below 1,500 rpm) / 35° B.T.D.C. (above 3,500 rpm) timing

  • Fuel capacity: 8.5 liters (including 1.8 liter reserve)

  • Electrical system: 6V 4AH battery, 15A fuse

Suzuki Manual Features & Selected Content Preview

This PDF reproduces Suzuki Motor Co., Ltd.'s June 1978 factory service manual for the 1978 Suzuki SP370, P/N SR-6500.

PDF Search, Navigation, and Wiring Detail

Finding information: PDF text search is not available, and there are no embedded PDF bookmarks. Small wire-color codes and switch labels in the wiring and charging diagrams are legible when enlarged.

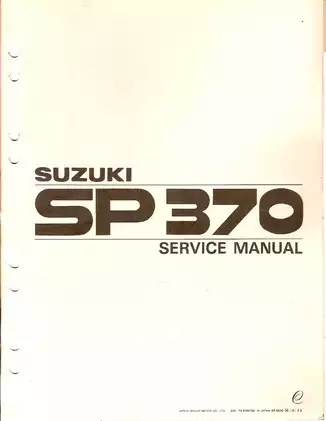

Supplied as one printable, 184-page PDF in English, including the original cover and three introductory pages.


Engine Overhaul, Carburetor Service, and Chassis Repair

The selected topics below are a preview rather than a complete contents list. Further subjects include fuel-cock cleaning and headlamp-beam adjustment.

  • Engine repair: Step-by-step procedures for engine removal, top-end disassembly, cylinder and piston inspection, crankcase separation, and reassembly.

  • Clutch and transmission: Wet multi-plate clutch repair, primary-drive inspection, kick-start mechanism service, and transmission and gear-shifting assembly.

  • Fuel system: Mikuni VM32SS carburetor overhaul, fuel-level checking, float adjustment, dual throttle-cable setup, and emission-control service requirements.

  • Electrical diagnosis: Magneto ignition and charging tests, mechanical-advance checks, switch continuity charts, lighting data, and a complete wiring diagram.

  • Wheels and suspension: Drum-brake service, wheel-bearing and axle checks, steering-head bearings, front-fork repair, and rear swingarm bearing replacement.

  • Workshop references: Symptom-based troubleshooting tables, tightening torques, wear limits, numbered exploded views, special-tool references, and disassembly flow charts.

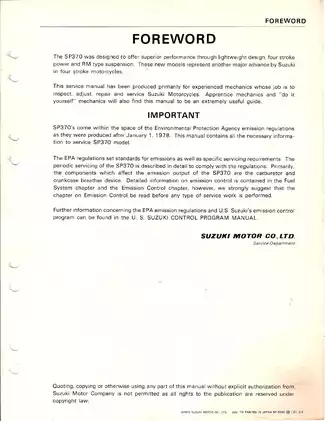

Suzuki identifies experienced mechanics as the primary audience and also includes apprentice and do-it-yourself mechanics; deeper repair work requires normal workshop skills and the specified tools and test equipment.

Maintenance and Fault Diagnosis

The factory maintenance schedule is backed by procedures for the battery, cylinder-head and exhaust fasteners, foam air cleaner, cam-drive chain, and valve clearance. It also covers spark plugs, breaker points, ignition timing, engine oil and filter, carburetor idle speed, control cables, drive chain, drum brakes, tires, steering, and critical chassis fasteners.

Troubleshooting tables address hard starting, rough running, overheating, abnormal engine noise, weak or absent spark, charging faults, steering problems, suspension complaints, and poor or dragging brakes. The fuel, spark, and compression checks help narrow a starting complaint before choosing which assembly needs further inspection.

Engine, Lubrication, and Drivetrain

Top-end work: Coverage extends to valve-guide replacement, stem seals, valve-seat cutting, spring inspection, rocker arms, camshaft journals, cam timing, and chain-tensioner setup. Cylinder, piston, and ring sections provide inspection methods, service limits, rebore guidance, and oversize-part identification.

Lower-end inspection: The manual treats the flywheel magneto, engine sprocket, clutch and primary drive, oil pump and strainer, kick-start mechanism, shift cam and forks, and crankshaft removal and installation. Inspection data covers runout, backlash, clearances, wear limits, oil-pump condition, and an engine oil-pressure test for the wet-sump lubrication system.

Engine installation includes engine-mount shimming and component-specific tightening data. Factory clearances, inspection limits, and assembly views support both restoration work and routine bench inspection by providing criteria for assessing removed components.

Assembly cautions: The manual warns that tightening the cylinder-head cover with the tachometer driven gear installed can break the cover. It also explains that hammering the crankshaft during removal or installation can disturb crankshaft alignment.

VM32SS Carburetor and Emission Controls

The fuel-system chapter explains the starter, main-metering, idle, and float circuits before detailing overhaul and inspection. It distinguishes needle-valve wear from contamination that can cause fuel overflow and includes air-cleaner and crankcase-breather servicing.

The U.S. emissions material applies to SP370 motorcycles produced after January 1, 1978. It identifies the close-tolerance main, needle, and pilot jets and warns against substituting standard jets. The factory-set air and pilot screws are not routine service adjustments.

Electrical Tests and Circuit References

Electrical coverage includes the ignition coil, spark plug, advance governor, points, condenser, half-wave charging system, battery, rectifier, voltage regulator, switches, horn, and lighting circuits.

Charging-current measurements and rectifier circuit tests accompany the charging-system schematic. Ignition and lighting circuit diagrams, switch test charts, and the full wiring diagram with its wire-color key support fault tracing.

Chassis Service and Workshop Tools

Chassis procedures cover wheel and brake disassembly, sprocket and chain inspection, handlebar controls, steering races, fork oil-seal and damper service, swingarm bearings, frame replacement, and cable and harness routing.

The gas/oil rear-shock section explains construction, mounting, and disposal precautions rather than internal rebuilding.

Visual references include the SP370 lubrication diagram and disassembly flow charts for Engine Overhaul, Carburetor Assembly, and Front Fork. Numbered exploded views identify component names and assembly relationships rather than serving as a replacement-parts catalog.

The special-tool section lists Suzuki numbers, including crankshaft installer 09910-32812, crankshaft remover 09920-13111, compression gauge 09915-64510 with adapter 09915-63210, and front-fork oil-seal installer 09940-53111.

Fuel-system work, brake repair, engine removal, and the high-pressure nitrogen rear shock require correct support, clean working practices, and suitable shop equipment. Follow the factory cautions and use qualified assistance whenever the job exceeds your tools or experience.

Preview of Valve, Compression, and Clutch Inspection Data

The valve-clearance section specifies 0.08 mm for both intake and exhaust with the engine cold.

For compression testing with the engine warmed and the throttle fully open, the engine chapter lists a standard pressure of 10–13 kg/cm² and a service limit of 7 kg/cm².

Clutch inspection distinguishes the drive plates’ new thickness of 3.4–3.6 mm from their 3.1 mm wear limit, alongside separate checks for spring length and plate distortion.
