Suzuki GS750 & GS750E Service Manual Set – 1976
186 Pages • Printable PDF • 86.69 MB • Download
Suzuki Models Covered & Key Technical Specifications
Models: GS750, GS750E
Model Years: 1976–1978 (1976, 1977, 1978)
Sub-models / Variants: GS750E — United States (E03), Canada (E28), Australia (E24), Europe
-
Engine displacement: 748 cc (45.6 cu in)
-
Engine type: Four-stroke cycle, air-cooled, DOHC, 4 cylinders
-
Compression ratio: 8.7:1
-
Carburetor: MIKUNI VM26SS, four
-
Transmission: 5-speed constant mesh
-
Ignition timing: 17° B.T.D.C. below 1,500 rpm; 37° B.T.D.C. above 2,500 rpm
-
Fuel tank capacity: 18 liters (4.8 US gal)
-
Dry weight: 223 kg (492 lbs)
Suzuki Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

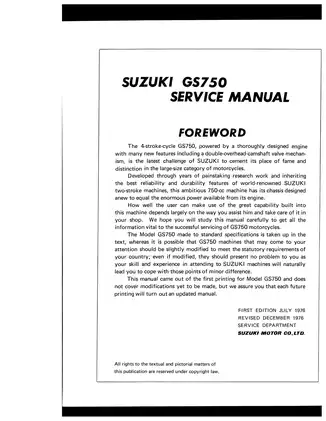

| Suzuki GS750 Service Manual — Suzuki Motor Co., Ltd.; first edition July 1976, revised December 1976. Covers the original single-front-disc GS750. | 180, including 173 pages of content and front matter, 2 cover pages, and 5 blank separator pages |
| Supplement for Model GS750E — Changes for the twin-front-disc, cast-wheel version, including regional suspension specifications. | 6 |
Use the base manual for the shared service procedures and the supplement for GS750E differences. The supplement refers back to the original manual for brake servicing while supplying the changed inspection dimensions and model-specific instructions.
PDF Reading and Page Count

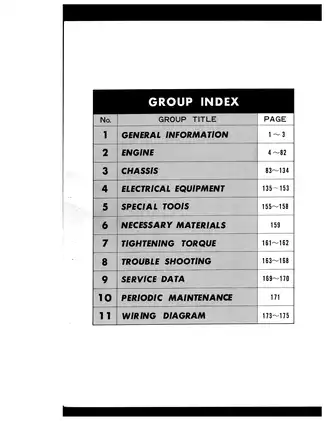

Search, navigation, and wiring detail: PDF text search is not available, and there are no embedded PDF bookmarks. The printed group index and section contents provide page references. The main wiring diagram spans two pages; small wire-color codes and switch labels require zooming for comfortable reading.
Supplied as one printable PDF in English, with 186 pages total. Both publications, the two cover pages, and the five blank separator pages are already included in that total.
Engine, Chassis, and Electrical Service
The following selected coverage highlights outline the main repair areas rather than reproduce the full contents. Additional topics include recommended service materials and a riding-safety inspection guide.
-
Engine repair: Step-by-step procedures for engine removal, disassembly, inspection, and reassembly, with valve timing, cam-chain tensioner service, and tappet adjustment.
-
Clutch and transmission: Wet-clutch inspection and adjustment, gear backlash measurement, shift-fork checks, transmission assembly, and kick-starter installation.
-
Carburetors and engine checks: Mikuni VM26SS disassembly, float-chamber fuel-level adjustment, carburetor balancing, compression testing, and oil-pump pressure testing.
-
Brakes and chassis: Steering-stem race replacement, front-fork rebuilding, swinging-arm bearing service, master-cylinder and caliper repair, and brake bleeding.
-
Electrical diagnosis: Charging-system tests, starter-motor inspection, ignition timing checks, switch continuity charts, and wiring diagrams showing U.S./Canada differences.
-
GS750E changes: Twin-disc front-brake inspection data, cast-wheel checks, revised front-disc wear limits, and market-specific suspension charts.
Written for service personnel experienced with Suzuki machines, the manual assumes mechanical knowledge and access to workshop measuring equipment and the specified special tools.
Cylinder Head and Internal Engine Repair
Cylinder-head coverage extends to valve-guide replacement and reaming, valve-seat refacing, and valve-spring inspection. Camshaft-journal clearances, piston-to-cylinder fit, ring measurements, valve-stem diameters, and crankshaft deflection provide criteria for assessing internal wear.
Timing and assembly: Illustrations identify the intake and exhaust camshafts, sprocket alignment, and bearing-cap orientation. The head-installation section supplies the tightening sequence, and the tappet shim chart lists replacement part numbers. The tachometer-drive warning explains how incorrect installation can break the drive gear and camshaft worm teeth.
Clutch and gearbox inspection: Exploded views locate gears, washers, circlips, and shift forks. Wear checks distinguish clutch-plate thinning, plate distortion, spring deterioration, and fork wear associated with jumping out of gear.
Fuel-System Setup and Lubrication Diagnosis
The carburetor circuit diagram supports cleaning and inspection, while the jetting table, fuel-level checks, and throttle-valve setup instructions cover adjustment. Synchronization includes calibration of the carburetor balancer before comparing the carburetors.
Engine cutaways and lubrication-path illustrations trace oil delivery to the engine and transmission. Pump inspection covers rotor and body clearances. Together with the pressure test, these checks help assess suspected pump wear; compression-test guidance relates low readings to cylinder, piston-ring, and valve-sealing faults before repair is planned.
Brakes, Suspension, and Cast Wheels
Chassis coverage includes steering-head components, fork internals, rear shock-unit inspection, and spring-preload adjustment. Wheel-bearing, rim-runout, balance, drive-chain, and sprocket checks accompany swinging-arm service. Front and rear master cylinders and calipers receive separate repair coverage.
GS750E inspection differences: The supplement changes the front master-cylinder and caliper dimensions and the front-disc wear limit. These distinctions help select the correct inspection criteria for the brake assembly being repaired.
Exploded front- and rear-wheel views identify the cast-wheel assemblies. The supplement also warns that metal-hammer impacts during balance-weight installation can damage the aluminum wheel. Spring-characteristic charts distinguish the regional suspension configurations.
Because working on motorcycle hydraulic brakes and internal engine components directly impacts rider safety, appropriate shop protocols must be maintained.
Charging, Starting, and Ignition Faults
The electrical section explains the three-phase alternator, full-wave rectifier, and SCR voltage regulator, with no-load tests and individual component checks. DENSO and MITSUBA starter motors have separate performance specifications and brush-wear limits.
The Charging System Diagram, Starting System Diagram, and Schematic Diagram of Ignition System support fault tracing. Contact-breaker adjustment includes timing-light verification; switch checks extend to the oil-pressure warning circuit and gear-position indicator.
Troubleshooting charts connect starting, running, clutch, shifting, suspension, and charging complaints with possible causes and corrective work.
Workshop Reference Data and Tools
Component-specific torque tables, fluid capacities, electrical test specifications, and periodic maintenance charts accompany the repair sections.
The illustrated special-tool list identifies the tappet depressor 09916-64510, carburetor balancer 09913-13121, and oil-pressure gauge 09915-74510, among other workshop tools.
A Preview of Valve and Cylinder Measurements
For both intake and exhaust valves, the tappet-clearance section specifies 0.03–0.08 mm with the engine cold. The associated instructions explain clearance measurement and adjustment by shim replacement.
Cylinder inspection data lists a piston-to-cylinder clearance of 0.050–0.060 mm, alongside standard bore dimensions, oversize piston options, and cylinder wear limits.
