2001–2005 Kawasaki ER-5 / ER500 Service Manual (P/N 99924-1267-04)

• Covers the 2001–2005 Kawasaki ER-5 (ER500-C1 through C5) and 2001 ER500-D1, with model-application and beginning-frame-number references.
• Details Keihin CVK34 carburetor service, including vacuum synchronization, service fuel-level checks, float adjustment, and disassembly.
• Combines cooling-system pressure testing and water-pump service with cylinder-head removal, camshaft timing, valve-clearance adjustment, and valve-seat repair.
• Follows engine removal through crankcase separation, crankshaft and balancer service, bearing-insert selection, and transmission disassembly.
• Addresses clutch inspection, drive-chain replacement, front disc-brake caliper and master-cylinder overhaul, rear drum-brake service, and hydraulic bleeding.
• Chassis procedures cover fork disassembly and oil-seal replacement, swingarm and wheel-bearing service, and steering-stem adjustment.
• Supports electrical fault tracing with alternator, regulator/rectifier, ignition, and starter tests, plus model- and market-specific wiring diagrams.

Technical Documentation and Reference

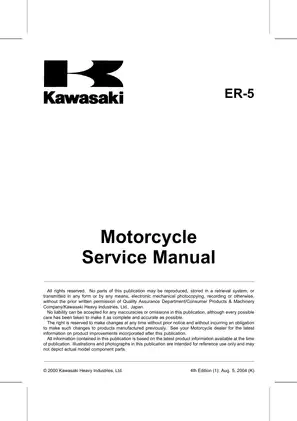

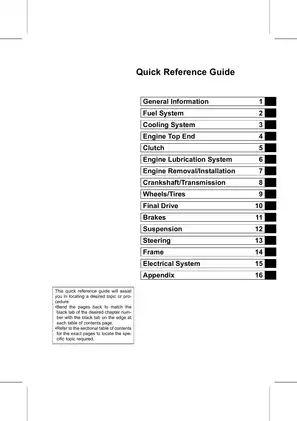

This 334-page PDF contains Kawasaki Heavy Industries, Ltd.’s ER-5 Motorcycle Service Manual, P/N 99924-1267-04, 4th Edition (1), dated August 5, 2004. Written primarily for trained mechanics in a properly equipped shop, it also supports basic maintenance and repair by owners familiar with mechanics, proper tool use, and workshop procedures.

The General Information chapter provides model identification data, base torque specifications for standard fasteners, and routing guidance for reassembly. Its Cable, Wire, and Hose Routing drawings identify harness branches, control cables, and fuel, vacuum, and coolant lines. Exploded assembly views mark lubrication and locking-agent requirements; component-specific torque information includes staged cylinder-head tightening.

Fuel, Cooling, and Top-End Repair

Carburetor specifications distinguish the standard N4BE jet needle from the ER500D’s N96R needle. The fuel section also covers vacuum fuel-tap checks and inspection of the carburetor-system coolant filter and valve. Its cleaning cautions explain how compressed air applied to an assembled carburetor can crush the floats and damage the vacuum-piston diaphragms.

The Coolant Flow Chart and Engine Oil Flow Chart trace the cooling and lubrication circuits. Radiator-cap and thermostat tests have their own specifications, while the lubrication chapter adds oil-pressure diagnosis and oil-pump and relief-valve inspection. Fluid-capacity tables accompany the service procedures.

For top-end repair, technicians get camshaft and valvetrain tolerances, intake and exhaust valve-clearance data, and the wobble method for valve-to-guide clearance. A Valve Seat Repair flowchart supports cylinder-head work. Piston-installation illustrations distinguish the C1–C4 arrow marking from the C5 circle marking.

The manual also warns that partially loosening and retightening the non-return cam-chain tensioner can damage both the tensioner and chain.

Drivetrain and Chassis Service

Lower-engine repair includes color-coded bearing selection for the crankshaft, connecting rods, and balancer shaft. The same chapter covers primary-chain replacement and positive neutral finder assembly. The clutch-housing procedure makes clear that removal requires major engine disassembly.

Final-drive specifications distinguish the earlier endless Enuma EK520SX-O chain from the C4-onward EK520MVXL. Drive-chain joint and riveting instructions identify the EK JOINT TOOL #50. Fork tables likewise separate C4-onward oil quantities, oil levels, and spring specifications from those for earlier models.

Electrical Diagnostics and Workshop Equipment

The wiring diagrams separate C1–C2/D1 models from C3-onward models outside Australia, with a separate Australian C1-onward/D1 diagram. An ignition troubleshooting flowchart connects circuit checks with coil and IC-igniter diagnosis. Dedicated procedures cover pickup-coil and ignition-coil primary peak-voltage testing; starter-motor service extends to brush and commutator inspection.

Special-tool references include Kawasaki’s Fuel Level Gauge 57001-1017, Fork Oil Level Gauge 57001-1290, and Peak Voltage Adapter 57001-1415. The appendix’s symptom-based Troubleshooting Guide connects starting, running, and handling complaints with possible mechanical or electrical causes.

Follow the manual’s electrical-isolation precautions around the radiator fan, which can start with the ignition switched off.
