2004 Ducati 999RS Workshop Manual (P/N 914.7.056.1A)

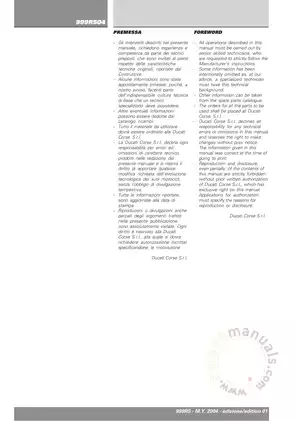

This 2004 Ducati Corse 999RS workshop manual, Edition 01, carries P/N 914.7.056.1A. It documents the 999RS competition configuration, identified as 999RS04, with English and Italian text.

Text Search, Bookmarks, and Wiring Detail

Search and diagram access: Main text and specification tables support text search, but text within software screenshots is not consistently searchable. Embedded bookmarks provide limited file-level navigation rather than chapter access. Small wiring-diagram labels require zooming.

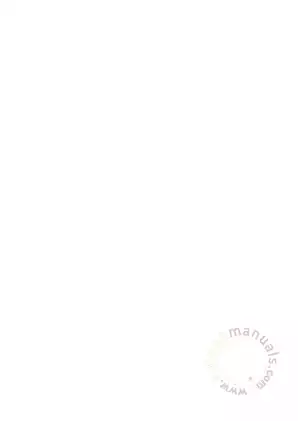

The download contains one printable 196-page PDF, including one added title page, six blank pages, and the original manufacturer cover and publication information.

Race Engine Overhaul and MF5 Electronics

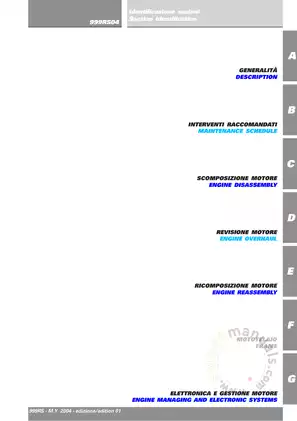

These selected workshop topics outline the main coverage. Other sections address instrument-panel alarm settings and wiring-harness routing.

• Engine disassembly and inspection: Crankcase separation, crankshaft and connecting-rod inspection, cylinder measurements, piston-ring checks, and bearing selection.

• Desmodromic cylinder heads: Head disassembly, opening and closing shim adjustment, rocker-arm inspection, camshaft installation, and valve-lift measurement.

• Clutch and gearbox: Anti-slip clutch overhaul, clutch fault diagnosis, gearbox inspection, selector-fork checks, and shaft and selector-drum shimming.

• Lubrication and cooling: Oil-pump inspection, lubrication circuit diagrams, water-pump bearing and mechanical-seal service, and alternator-cover assembly.

• Electrical fault finding: No-start, misfire, and dashboard-signal checks, supported by main front, side-harness, battery, and switch wiring diagrams.

• Racing electronics: Magneti Marelli MF5 programming instructions, electric gear-change lever calibration, gear-position sensor shimming, and suspension-sensor zeroing.

• Service references: Engine and vehicle maintenance schedules, separate engine and frame torque tables, wear limits, and part-numbered special-tool lists.

Written for senior skilled technicians, this manual assumes specialist workshop knowledge rather than teaching basic repair skills.

Engine Inspection and Reassembly Limits

Missing procedures: Printed pages 157–165 are absent from this PDF. The gap interrupts cylinder, piston, and head assembly and omits the listed procedures for timing-belt installation, tensioning, replacement, and cam timing. The file does not provide an uninterrupted engine-rebuild sequence.

The retained overhaul material covers valve-leak testing, valve-pocket depth measurement, crankshaft classification, and connecting-rod bearing selection. A reusable engine data record sheet provides space for measurements, bearing classes, and bolt-tightening history. These records and inspection limits support decisions about component reuse during an overhaul.

The Pankl titanium connecting-rod warnings explain how minor impact damage can initiate invisible cracks and later fatigue failure. Connecting-rod bolts are limited to three total tightenings, including original assembly, with tightening controlled by measured stretch.

The rocker-arm and shaft assembly diagram identifies cylinder-head component positions. Tool references include head-nut wrench 88713.2096 and connecting-rod protection tool 041.1.029.2A.

MF5 Mapping, Sensor Setup, and Fault Diagnosis

The VISION instructions describe BIN software installation, editing the horizontal and vertical injection tables, coolant-temperature correction, and writing settings to the selected ECU map bank. The gear-recognition threshold table is linked to physical gear-position sensor shimming.

Electric gear-change lever calibration uses control unit 286.1.025.1A. The suspension-sensor reset procedure is written for a Magneti Marelli tester with a DAS4 data logger. The referenced software package and diagnostic hardware are not included in this PDF download.

Misfire troubleshooting considers electric gear-change operation alongside ignition and fuel-system causes. This gives technicians a documented basis for investigating shift-related symptoms rather than limiting checks to spark plugs and coils.

Chassis Coverage Limit and Service References

Section F, “Frame,” is absent. Öhlins suspension specifications, vehicle maintenance schedules, and chassis torque tables remain, but the dedicated frame-service chapter is not included.

The maintenance references specify lubricants, threadlockers, sealants, and component replacement requirements. Engine fastener data distinguish multi-stage head-nut tightening from connecting-rod bolt-stretch requirements. The lubrication circuit diagram traces oil delivery to the heads, crankshaft, and piston-cooling circuits.

Engine service requires suitable lifting and support equipment and observance of the manual’s workshop safety precautions.

Selected Valve, Squish, and Gear-Sensor Values

For the 999RS engine, the cold intake opening clearance is 0.14–0.19 mm. The cylinder-head procedures distinguish opening clearance from closing clearance and explain the corresponding shim checks.

The squish-height section specifies 1.00–1.10 mm and describes measurement using lead bars, followed by cylinder-base gasket selection where correction is needed.

For gear-position sensor calibration using the default recognition thresholds, the specified first-gear output is 300 ± 50 mV with the main switch on.
