1986–1987 Suzuki VS700GL, VS750GL, VS800GL Service & Repair Manual (P/N 99500-38029-03E)

• Covers 1986-2004 Suzuki VS700GL, VS750GL, and VS800GL Intruder motorcycles, beginning with the VS700GL base manual and GLF/GLP views, then adding VS700GLE and VS700GLH; VS750GLJ, VS750GLK, GLFL/GLPL, and GLFM/GLPM variants; and every VS800GL model-year supplement from N through K4.
• Official Suzuki Motor Corporation publication P/N 99500-38029-03E, marked 15th Ed. April 2004 with a first-edition date of August 1988. This is a 482-page PDF organized into 22 factory group-index sections.
• Documents engine removal and reinstallation, full V-twin disassembly and reassembly, cylinder-head and valvetrain repair, piston and crankshaft inspection, clutch and transmission service, oil-pump work, and camshaft-timing setup.
• Provides dedicated shaft-drive repair for the secondary and final bevel gear assemblies, including removal, bearing and seal service, shim selection, backlash measurement, tooth-contact inspection, and final remounting.
• Details the dual Mikuni carburetor system, fuel pump and relay, float and fuel-level checks, carburetor balancing, lubrication-pressure testing, cooling-system diagnosis, EPA carburetor components, and evaporative-emission layouts for applicable market versions.
• Handles front and rear wheel and brake service, front-fork and steering-stem work, rear suspension and swingarm repair, hydraulic clutch service, and model-specific cable, harness, and hose routing.
• Includes charging, ignition, starter, instrument, temperature-indicator, switch, and battery diagnosis; model-specific wiring diagrams; troubleshooting charts; special-tool references; torque tables; wear limits; and electrical test data.

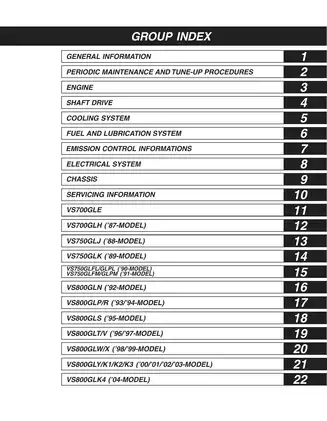

How the 22 Groups Work

The first ten groups form the full base shop manual: general information, periodic maintenance, engine, shaft drive, cooling, fuel and lubrication, emission controls, electrical, chassis, and servicing information. Groups 11 through 22 are cumulative supplements for later models. They record only the specifications, components, procedures, wiring, or routing that changed and direct the technician back to the earlier groups for everything that remained the same. A later VS800 section is therefore used together with the base chapters and the applicable intervening updates; it is not a stand-alone abbreviated manual.

The individual change chapters are labeled for VS700GLE and VS700GLH; VS750GLJ, VS750GLK, and the 1990 L and 1991 M GLF/GLP variants; and VS800GLN, P/R, S, T/V, W/X, Y/K1/K2/K3, and K4. GLF/GLP configurations, market codes, California-related emission equipment, and year-specific carburetor, electrical, steering, cable-routing, and service-data changes are separated where the factory documentation calls them out.

Repair Depth and Shop Reference

The engine section goes well beyond routine maintenance. It covers compression diagnosis, components that can be removed with the engine installed, full engine removal, teardown, inspection, bearing and component selection, and final assembly. Cylinder-head and top-end repair includes the cylinder-head cover, camshafts, rocker arms, valve guides and seats, cylinders, pistons, and rings. Bottom-end and drive work covers connecting rods, crankpin and crankcase bearings, clutch, generator and signal generator, starter clutch, oil pump, gearshift components, and transmission shafts. Factory wear limits, clearance data, selection tables, lubrication notes, and component-specific tightening specifications support those procedures.

The shaft-drive chapter is equally specific. It contains exploded construction views for the secondary and final bevel gears, propeller-shaft and bearing-case work, shim charts, backlash checks, and illustrated tooth-contact patterns. Suzuki treats the drive and driven bevel gears as matched pairs, and the manual requires backlash to be checked again after tooth-contact adjustment. Missing either point can leave the bevel gears with an incorrect contact pattern and put the gears and bearings at risk of damage.

Fuel-system coverage identifies the front and rear carburetor circuits, including diaphragm and piston operation, slow, transient-enrichment, main, starter, and float systems. The repair sections cover carburetor disassembly and reassembly, needle-valve inspection, float-height adjustment, fuel-level inspection, and synchronization. Cooling-system material includes the coolant-flow layout, radiator and hose service, thermostat, water pump, engine thermo-switch, and fan motor. Chassis chapters cover the front disc brake and master cylinder, rear wheel and drum brake, front fork, steering stem, rear shock absorber, swingarm bearings, and hydraulic clutch master-cylinder work.

Useful illustrations and diagnostic aids include the secondary-bevel exploded view and tooth-contact chart, cooling-system flow drawing, fuel-system layout, charging-system circuit, model-specific wiring diagrams, and cable/harness/hose routing views. The special-tool index names factory tools such as carburetor balancer 09913-13121, compression gauge 09915-64510, oil-pressure gauge 09915-74510, backlash measuring tool 09924-34510, final-drive gear bearing holder wrench 09924-62410, and ignitor checker 09930-70710.

The brake and hydraulic-clutch circuits use glycol-based fluid. The manual specifically warns against mixing silicone- or petroleum-based fluid because component damage can result. Engine removal and shaft-drive or wheel work also involve heavy assemblies; use stable lifting and holding equipment and follow the manual's safety cautions before beginning the work.
