Canon iR7105, iR7095 & iR7086 Copier Service Manual (2006)
588 Pages • Printable PDF • 25.02 MB • Download
Canon Models Covered & Key Technical Specifications
Models & Model Codes: iR7105 (iR7105i, Japan), Canon iR7095 (iR7095i, Japan), iR7086 (iR7086N, Japan), iR7095P
Sub-models / Variants: 100V model, 200V model, 208V model, 230V model (European and non-European versions)
Model Year: 2006
-
Engine/Print Engine Type: Dry, 1-component toner projection
-
Photosensitive Medium: Amorphous silicon drum (108-mm diameter)
-
Print Resolution: 1200 (equivalent) x 600 dpi
-
Reading Resolution: 600 x 600 dpi
-
Hard Disk Capacity: 40 GB
-
Weight: 280 kg (approx., including ADF)
-
Power Supply Rating: 200V/15A (50/60Hz), 208V/12A (60Hz), 230V/13A (50Hz)

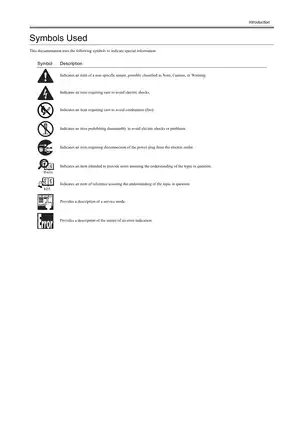

Canon Manual Features & Selected Content Preview
Canon’s February 3, 2006 service manual covers the iR7105, iR7095, and iR7086 copier series. Dedicated iR7095P sections address installation, accessory checks, controlled shutdown, network testing, and e-RDS service.
PDF Search, Bookmarks, and Wiring Detail
Finding service information: Text search works through most of the manual. Two maintenance pages have no searchable text. Bookmarks cover all chapters, with eight section links in Chapter 13 that fail to open their targets. Small connector and pin labels in the main PCB wiring and motor diagrams are clear when zoomed in.
The manual is supplied as one printable English-language PDF with 588 pages. That total includes both covers, the closing date page, and 44 blank pages.
Copier Repair, Image Checks, and Fault Diagnosis
These selected service topics give a sample of the coverage. The manual also documents regional counter display defaults and Voice Guidance Kit installation.
- Accessory setup: Configuration drawings, installation order, and operating checks for side paper decks, finishers, the stacker, and Card Reader-D1.
- Controller and reader service: Main controller and HDD replacement, reader and laser scanner removal, and post-replacement adjustments such as shading correction and mirror positioning.
- Image formation: Drum, charging, and developing assembly service, with surface-potential checks and charging-wire adjustments.
- Paper path and fixing: Pickup, registration, duplex, delivery, and fixing-unit repairs, with skew correction, double-feed sensor checks, and fixing-nip inspection.
- Fault isolation: Error and alarm codes, printer, DADF, and finisher jam codes, service-mode I/O checks, network PING tests, and e-RDS troubleshooting.
- Software and storage: Service Support Tool (SST) and USB upgrades, HDD formatting and recovery, service data backup and restore, and MEAP compatibility.
- Scheduled maintenance: Service counters, periodic replacement tables, and consumable-life estimates for planning maintenance visits.
Canon wrote this manual for qualified service personnel responsible for copier installation, maintenance, and repair.
Reader and Finisher Configurations
Reader variants: Outside Japan, the iR7105 and iR7095 use DADF-Q1 and the iR7086 uses DADF-M1. The reader firmware table identifies the Japanese DADF-Q1 variants. The two reader configurations have separate scanner replacement adjustments, white-level procedures, jam codes, and self-diagnostic references. Rated output is 105 ppm for the iR7105, 95 ppm for the iR7095, and 86 ppm for the iR7086.
Accessory combinations: The system drawings show how Paper Deck-W1/X1, Finisher-V1, Saddle Finisher-V2, High Capacity Stacker-A1, folding and punching units, an inserter, and a booklet trimmer fit into the copier setup. The trimmer pairs with the saddle finisher, the inserter requires its mounting kit, and the standard punch unit and professional puncher are alternative configurations. The installation section covers regional power, ventilation, leveling, and workspace. Detailed work on the finishers, stacker, and side decks calls for the separate accessory documentation.
Board Replacement and Image-Quality Checks
Controller and optics: Component procedures cover DDR-SDRAM, Boot ROM, the video and reader interface PCBs, the DC controller, and high-voltage and power supply boards. Reader service includes the CCD unit, scanning lamp, inverter PCB, scanner drive cable, and mirror bases. The laser exposure chapter explains the four-beam system.
Image and paper-path diagnosis: Test patterns and A3 charts help isolate reader faults from printer faults through density slope, solid-black density, fogging, and image-position checks. The potential-control block and timing diagrams show how charging and developing interact. Paper-path procedures cover motors, solenoids, clutches, rollers, belts, and sensors, including roller orientation. The fixing chapter covers both rollers, heaters, thermistors, thermal protection, the cleaning web or belt, and separation claws.
Wiring, Software Recovery, and Service Tools
Signal tracing: The machine cross section, major PCB wiring diagram, and power-on sequence help locate assemblies and trace connections. Electrical tables link motors, fans, sensors, switches, solenoids, and PCBs to connector IDs, service-mode I/O, part numbers, and related fault codes.
Recovery and tools: The upgrade chapter covers normal and safe download modes, controller software, and MEAP backup handling. The tool table lists the FY9-2002 digital multimeter, FY9-4008 laser power checker, FY9-3040 mirror positioning tool, FY9-9196 NA-3 test sheet, FY9-3041 potential sensor tester electrode, and FY9-3014 environment sensor meter.
Service cautions: Cutting main power during HDD access can damage the drive and trigger E602. The charging assembly instructions flag wire contact with the transfer guide as a breakage risk and poor connector contact as a cause of blank prints. Disconnect power and follow the manual’s laser, high-voltage, and hot fixing-unit precautions before internal service.
Sample Fixing Nip and Charging-Wire Settings
With both fixing rollers fully heated, the service-mode nip check specifies a center width of 9.0 ± 0.5 mm for 100 V and 200 V units and 10.0 ± 0.5 mm for 208 V and 230 V units.
The image formation adjustment section specifies a transfer charging-wire height of 9.0 ± 0.2 mm.
