Kawasaki Brute Force 750 4x4i / KVF750 4x4 Service Manual, 2005–2007 (P/N 99924-1334-02)

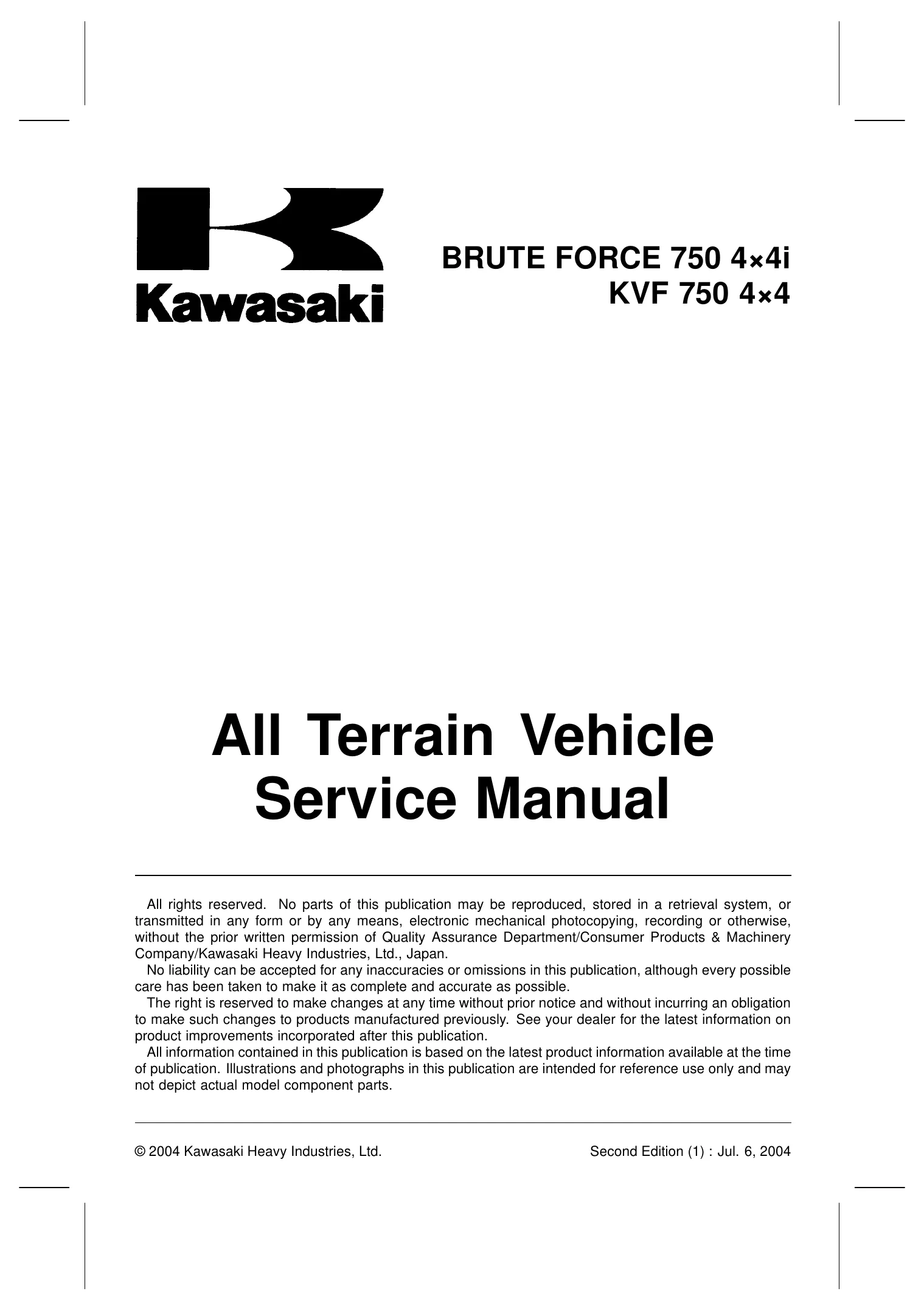

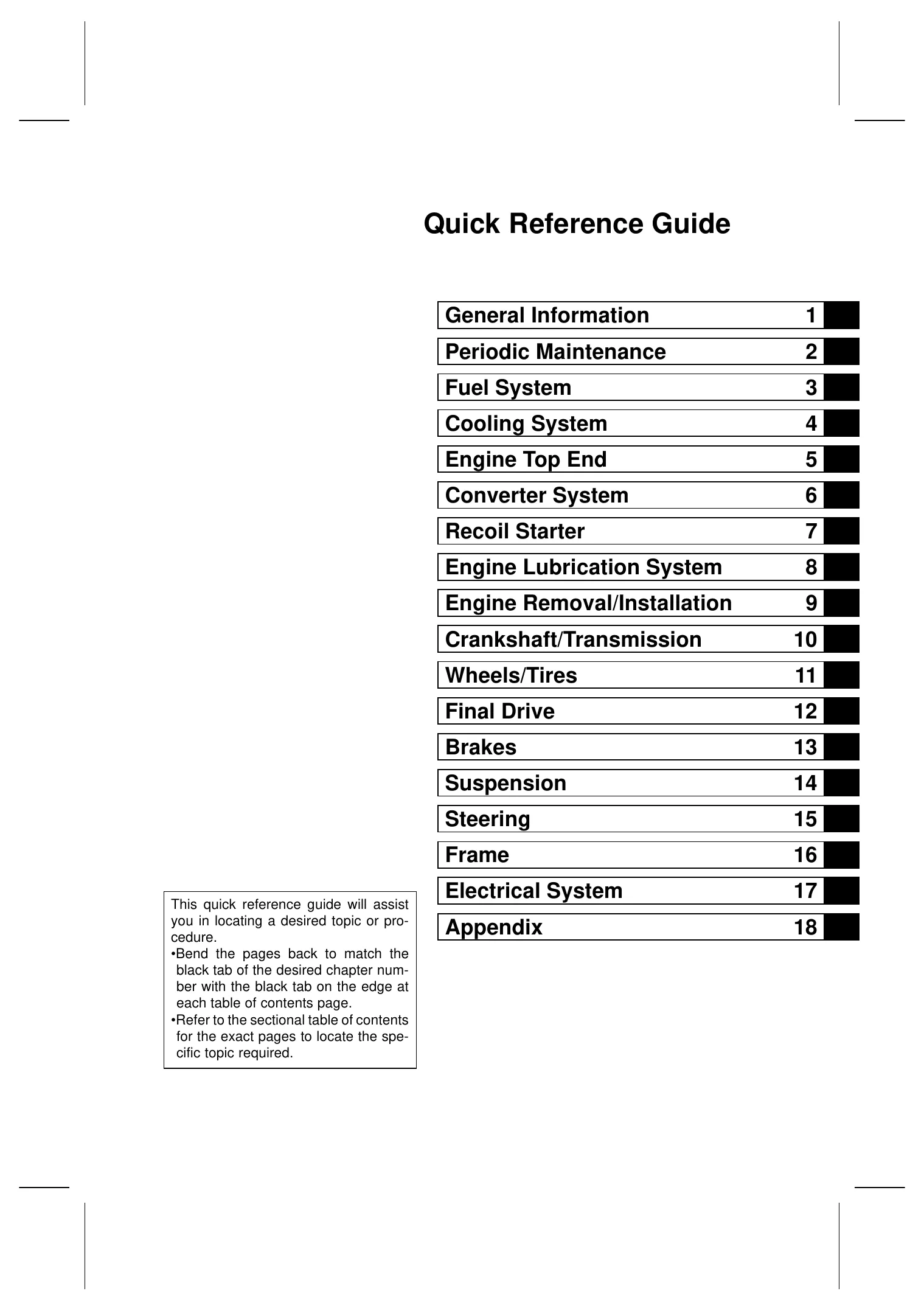

Kawasaki's Brute Force 750 4x4i / KVF750 4x4 service manual, P/N 99924-1334-02, covers the 2005 KVF750-A1 base model and KVF750-B1 camouflage model. This Second Edition (1), dated July 6, 2004, has 18 service chapters. The B1 shares the A1's controls, features, and specifications.

Searchable Service Text and Wiring Detail

Text search and diagram detail: Service text is searchable, with embedded bookmarks for chapters, procedures, and tables. Labels within the main wiring diagrams are not text-searchable; small wire-color codes are legible when enlarged.

ZIP download containing one printable English PDF: 532 pages, including nine preliminary manual pages, 521 chapter pages with their blank pages, one final model-application page, and one additional introductory page. The ZIP also contains an internet shortcut.

Engine, Belt Drive, and ATV System Repairs

These are selected service topics, rather than a complete contents list. Other sections cover recoil-starter inspection and removal of body panels, carriers, and guards.

• Engine repair: Engine removal and installation, rocker cases, camshafts and KACR components, cam-chain timing, cylinder-head and valve work, piston inspection, and crankcase/transmission repair.

• Fuel and intake: Dual Keihin CVKR-34 carburetor service, fuel-level testing and synchronization, carburetor separation and joining, air-cleaner service, and fuel-system checks.

• Cooling system: Cooling-system pressure testing, water-pump mechanical-seal replacement, radiator inspection, thermostat testing, and coolant service.

• Belt converter: Drive-belt inspection and deflection adjustment, drive and driven pulley overhaul, spider-shoe clearance adjustment, Kawasaki Engine Brake Control, and belt-failure detection.

• Final drive: Output bevel gears, front limited-slip differential and rear final gear-case overhaul, backlash and tooth-contact adjustment, and axle/propeller-shaft service.

• Brakes and chassis: Front hydraulic brake bleeding and caliper service, rear internal wet-brake repair, double-wishbone suspension, wheel alignment, and steering service.

• Electrical diagnosis: Digital DC-CDI ignition and charging tests, starter-motor repair, actuator troubleshooting, the main wiring diagram, and system-specific circuit references.

Written primarily for trained mechanics in a properly equipped shop, this manual also supports owners doing basic maintenance and repair who understand mechanics, proper tool use, and workshop procedures.

Engine Inspection and Lubrication

The engine sections add compression testing, valve-guide and valve-seat work, piston and ring wear measurements, and connecting-rod bearing selection. Separate crankcase and transmission instructions cover shift-fork, gear, and bearing inspection.

Oil-pressure diagnosis connects abnormal readings to the relief valve, oil pump, crankshaft bearings, or lubrication-system restrictions. Component-specific torque tables, tightening sequences, approved lubricants and sealants, capacities, and service limits support assembly-level repair.

The non-return cam-chain tensioner requires specific handling: partial loosening and retightening can damage the tensioner and chain, while turning the crankshaft with it removed can disturb timing and damage valves.

Carburetor Service and Fuel-Pump Coverage

The carburetor section provides step-by-step disassembly and assembly instructions, with separate front and rear fuel-level settings and inspection of internal components.

Fuel-pump coverage is removal, installation, and functional inspection rather than internal pump overhaul.

Cooling-System Checks

Radiator-cap checks and thermostat inspection supplement the pressure-testing procedures when investigating coolant loss or overheating. Water-pump leakage checks distinguish the relevant sealing components, while the Coolant Flow Chart shows circulation through the system.

Converter Setup and High-Altitude Settings

The High Altitude Setting Information table matches drive-pulley ramp weights and spring spacers to front and rear carburetor main jets.

The converter chapter also warns that switching the ignition off with the cover removed can trigger an incorrect engine-brake actuator learning operation.

Final-Drive and Chassis Repair

Shim-selection tables distinguish output, front, and rear bevel-gear adjustments. LSD clutch-torque inspection addresses hard steering, front gear-case overheating, and noise when cornering, helping relate recognizable symptoms to the appropriate driveline checks.

Front disc-brake instructions cover the master cylinder, calipers, hoses, pads, discs, and fluid service. Rear wet-brake disassembly and assembly are documented within the rear final gear-case procedures. Chassis sections add suspension-arm and steering-bearing work.

Electrical Fault Tracing and Reference Diagrams

Failure-indication and malfunction tables separate 2WD/4WD actuator faults from engine-brake actuator faults and direct the reader to controller-power, switch, and sensor checks.

Additional electrical coverage includes the multifunction meter, vehicle-down sensor, carburetor heaters, radiator fan, lighting, and starter clutch. Regional callouts distinguish U.S., Canadian, European, British, and Australian equipment where applicable.

Named references include the Engine Oil Flow Chart, Meter Circuit, Actuator Control System Circuit, and Cable, Wire, and Hose Routing plates alongside the main Wiring Diagram. Exploded-view sections pair assembly drawings with fastener tables and assembly notes.

The general troubleshooting guide groups starting, low- and high-speed running, overheating, transmission, brake, steering, and electrical complaints by likely cause.

Specified tools: Carburetor checks identify Fuel Level Gauge 57001-1017 and Vacuum Gauge 57001-1369. Driveline work references Drive & Driven Pulley Holder 57001-1473 and Gear Holder & Socket Wrench, Hex 24 57001-1489.

Electrical checks identify Hand Tester 57001-1394 and Needle Adapter Set 57001-1457.

Because this manual covers rotating converter pulleys, fuel, cooling and brake systems, supported-vehicle electrical checks, and high-voltage ignition testing, follow the factory warnings, specified tools, tightening sequences, and inspection limits.

Examples of Valve and Carburetor Specifications

For the covered A1/B1 engine, cold valve clearance is 0.10–0.15 mm at the inlet valves and 0.20–0.25 mm at the exhaust valves.

Carburetor synchronization is specified as less than 2.7 kPa difference between the two carburetors at idle. The fuel-system section pairs this limit with the vacuum-gauge inspection and adjustment procedure.
