Suzuki LT-R450 QuadRacer R450 2006 ATV Service Manual (P/N 95106-06150-05E)

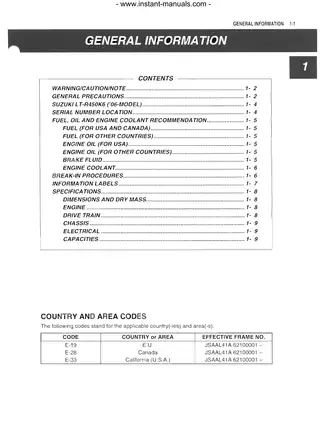

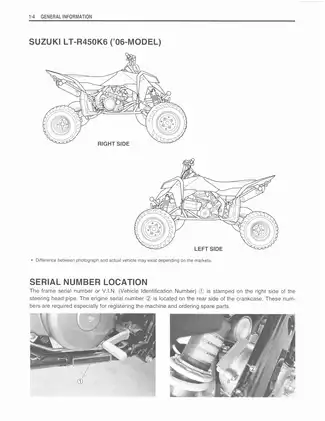

Suzuki service manual P/N 95106-06150-05E covers the 2006 LT-R450K6 / QuadRacer R450, including E-19 (E.U.), E-28 (Canada), and E-33 (California, U.S.A.) configurations from effective frame No. JSAAL41A 62100001 onward. This is K6-only coverage; later model-year update chapters are not included.

PDF Search, Bookmarks and Diagram Detail

Search and wiring labels: The PDF has a searchable text layer with recognition errors and gaps in some tables and diagram labels. Embedded bookmarks open the main sections and wiring diagram. Small labels in the full wiring diagram require zooming.

One printable English-language PDF with 428 pages total, including one cover and seven blank divider pages.

Engine, FI and Chassis Service Coverage

These are selected contents, rather than a full table of contents. Other topics include spark-arrester cleaning and crankcase-emission control.

• Engine and transmission repair: Step-by-step removal, teardown and reassembly procedures, with cylinder-head and valve service, cam timing, crankshaft inspection, clutch repair and transmission work.

• FI and fuel-system diagnosis: ECM terminals, user- and dealer-mode self-diagnosis, DTC and fail-safe tables, SDS checks and resets, sensor circuits, TPS adjustment, fuel-pressure and pump-delivery tests, and injector service.

• Cooling and lubrication: Radiator and cap testing, cooling-fan and relay checks, thermostat inspection, water-pump overhaul, oil-pressure testing, plus dry-sump oil tank, return tank, hose, filter, strainer and pump service.

• Chassis and brakes: Caliper and master-cylinder repair, disc inspection, bleeding, wheels and tires, suspension setup, steering and toe adjustment, swingarm, cushion linkage, rear axle and drive-chain service.

• Maintenance and factory data: Periodic service chart, valve-clearance and tappet-shim procedures, compression checks, component-specific torque tables, general bolt chart, service limits, capacities, adjustment data and electrical test specifications.

• Diagrams and routing: Component assembly views, diagnostic charts, electrical component locations, and dedicated wiring-harness, cable, fuel-hose, cooling-hose, oil-hose and brake-hose routing pages.

Built around complete teardown and fault isolation rather than basic owner maintenance alone, this service manual is suited to mechanics and experienced DIY owners who can interpret factory specifications and use dedicated pullers, gauges and electrical test equipment.

Engine and Drivetrain Detail

DOHC valve-train coverage addresses titanium valves and seats, tappet shims, camshafts, automatic decompression, and the cam chain and tensioner.

Separate procedures cover the liquid-cooled engine’s piston and rings, connecting rod, balancer, starter clutch, generator, clutch pack, gearshift mechanism, transmission shafts and crankcase. The service-data chapter organizes wear limits, clearances, runout limits and gear ratios by assembly.

The inspection limits and transmission section views support decisions about component reuse and show washer, bushing and snap-ring placement during reassembly.

The manual flags the primary drive gear nut’s left-hand thread and warns that striking the generator rotor instead of using the specified puller can damage it.

Fuel Injection, Electrical and Routing References

The FI fault trees distinguish sensor and wiring faults from ECM problems. They cover crankshaft-position, intake-pressure, throttle-position, coolant- and intake-temperature, tip-over, gear-position, injector, ignition, fuel-pump relay and cooling-fan circuits.

SDS sample-data and fault-time records let technicians compare normal operating readings with the conditions recorded when a fault occurred. Reverse battery polarity or an improper ohmmeter connection can damage the ECM or sensors; disconnecting power before recording a fault can erase the stored DTC.

Throttle-body coverage includes disassembly, passage cleaning and reassembly, with injector-seal and TPS-alignment details. The throttle valve remains installed.

The electrical section adds charging-system, starter-motor, ignition, relay, switch, lighting and maintenance-free battery testing.

Named visual references include FI System Parts Location, FI System Wiring Diagram, Engine Lubrication System Chart, Wiring Harness Routing, Oil Hose Routing and the full Wiring Diagram. Regional pages distinguish E-28 reflector and brake-light/taillight installation from the other covered configurations.

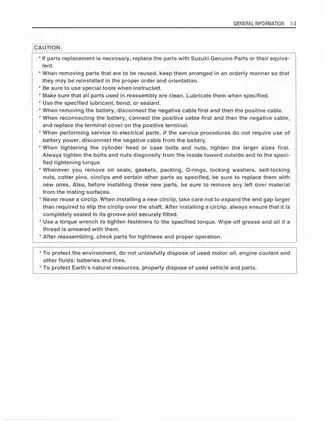

Tools, Suspension Scope and Safety

Suzuki tool numbers include SDS set 09904-41010, multi-circuit tester 09900-25008, TPS test harness 09900-28630, crankshaft installer 09910-32812 and rear axle nut wrench set 09940-92460.

Front and rear suspension coverage includes removal, inspection, linkage service, spring preload and damping adjustment. The shock absorbers themselves are unserviceable units; controlled gas-release instructions are for disposal only.

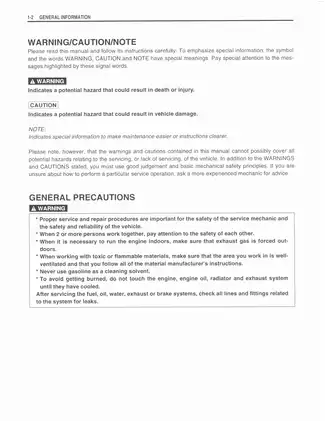

Fuel-system, brake, and pressurized damper work can create fire, braking, or stored-gas hazards, so these procedures require the factory cautions and appropriate shop equipment.

Valve-Clearance and Fuel-Test Examples

Cold valve-clearance specifications are 0.10–0.20 mm for the intake valves and 0.20–0.30 mm for the exhaust valves, alongside tappet-shim selection information.

Fuel-pressure inspection specifies approximately 294 kPa with the ignition switched on. Injector-circuit diagnosis gives a resistance range of 9–17 Ω at 20°C (68°F).
