2004–2009 Suzuki LT-Z250 QuadSport 250 Service Manual (P/N 99500-42175-03E)

• Model coverage: Covers Suzuki LT-Z250K4 through LT-Z250K9 QuadSport 250 models for 2004-2009 in a 323-page PDF, using the K4 manual as the base and separate K5, K6, K7, K8, and K9 update sections.
• Engine repair: Details engine removal and installation, top- and bottom-end disassembly, cylinder-head and valve service, camshaft and cam-chain work, cylinder and piston inspection, crankshaft service, oil-pump work, and final reassembly.
• Clutch, transmission, and rear drive: Provides centrifugal-clutch engagement and lock-up checks, wet multi-plate clutch service, five-speed/reverse transmission overhaul, gearshift-fork inspection, reverse mechanism service, and secondary/final bevel-gear backlash, shim, and tooth-contact procedures.
• Fuel and lubrication systems: Covers the MIKUNI BSR29 carburetor from removal and cleaning through inspection, reassembly, and installation, along with the fuel valve, oil-pressure testing, oil filter and strainer, oil pump, and lubrication circuit.
• Chassis repair: Includes front disc-brake and rear drum-brake service, hydraulic brake bleeding, caliper and master-cylinder overhaul, wheel and hub work, front and rear suspension, steering and toe-in adjustment, swingarm and rear-axle service, and reverse-lock cable adjustment.
• Electrical diagnosis: Supplies charging-, starter-, and CDI ignition-system troubleshooting; generator, regulator/rectifier, relay, starter-motor, switch, diode, lamp, and MF-battery tests; plus the main wiring diagram and harness-routing information.

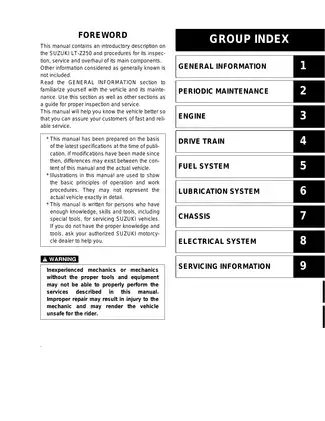

Suzuki wrote this manual for people who already have the knowledge, skills, and proper workshop tools—including special tools—to service its vehicles. Because it assumes general mechanical knowledge rather than teaching fundamentals, it is suited to experienced mechanics equipped for measurement-intensive diagnosis and repair.

Model-Year and Regional Differences

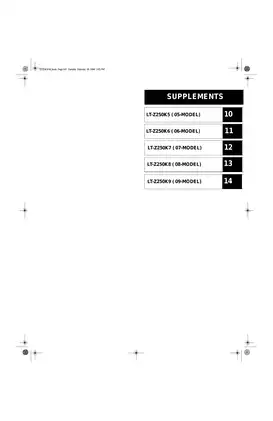

The main repair chapters are based on the 2004 LT-Z250K4. The K5 supplement adds revised specifications and service data, updated chassis torque information, a caliper-bolt thread-lock instruction, and a K4/K5 front-brake-hose routing comparison. K6 carries revised specifications and service data. K7 retains the K6 data and adds E-33 label placement; K8 retains the K7 data and updates the information-label table. The K9 section adds revised specifications and service data, fuel-tank construction, and region-specific pilot-screw service for E-28 and E-33 machines. Unchanged procedures refer back to the preceding chapters rather than being repeated in each supplement.

Regional references are identified inside the manual as E-19 for the EU, E-28 for Canada, and E-33 for the USA and California. That distinction matters in carburetor settings and service, fuel information, labels, and lighting.

Shop Procedures, Specifications, and Special Tools

Service-data tables cover valves and guides, camshaft and cylinder head, piston and cylinder, connecting rod and crankshaft, clutch and transmission, carburetor, electrical equipment, brakes and wheels, and fuel and oil. Separate engine, drive-train, and chassis torque tables sit alongside wear limits, clearances, runout limits, shim-selection data, capacities, and electrical test specifications.

The special-tool directory gives Suzuki numbers for the equipment called out in the procedures. Representative examples are the 09920-13120 crankcase separator, 09910-32812 crankshaft installer, 09920-53730 clutch sleeve hub holder, 09913-70210 bearing installer set, and 09900-25008 multi-circuit tester set.

Diagrams, Troubleshooting, and Repair Cautions

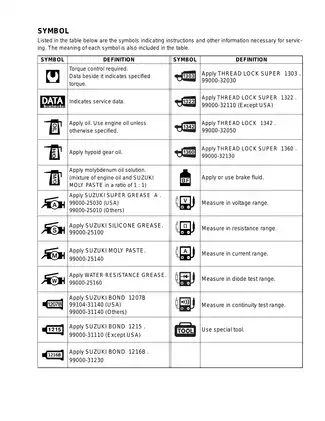

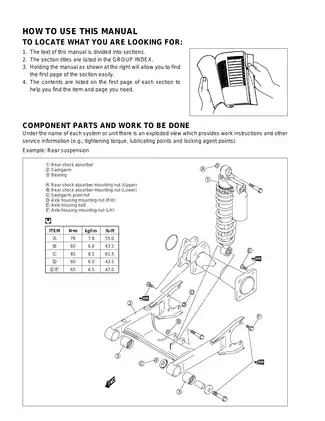

Named reference material includes the main wiring diagram, charging/starter/ignition troubleshooting charts, the engine lubrication circuit and flow chart, secondary bevel-gear construction and shim-selection views, front brake hose routing, and carburetor hose routing. Exploded assembly views identify component order and pair parts with the related tightening or lubrication notes.

The engine section flags the oil-filter installation orientation because incorrect placement can cause serious engine damage. The BSR29 carburetor chapter also warns that applying compressed air before removing the diaphragm can damage it.

The rear shock section establishes an important repair limit: removal, inspection, spring-preload setting, installation, and gas-release disposal are covered, but the shock absorber is identified as an unserviceable sealed unit and is not internally rebuilt. Brake, fuel, tire, battery, rotating-driveline, and pressurized shock work should be carried out with the specified equipment and the factory safety precautions; improper repair can injure the mechanic or leave the ATV unsafe.
