2001-2005 Chrysler Town & Country / Voyager / Caravan Service Manual
Complete repair and diagnostic procedures for your 2001-2005 Chrysler Town & Country, Voyager, and Caravan. Includes detailed diagrams and specifications for all systems. Part number: townandcountry_2001-2005.zip
Manual Preview

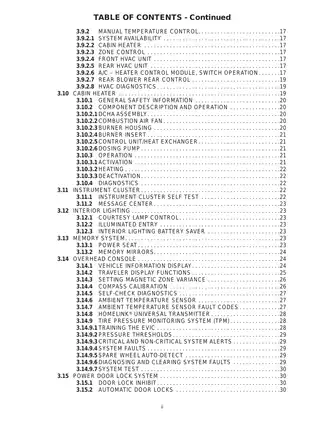

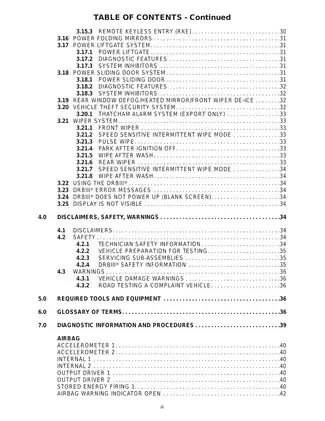

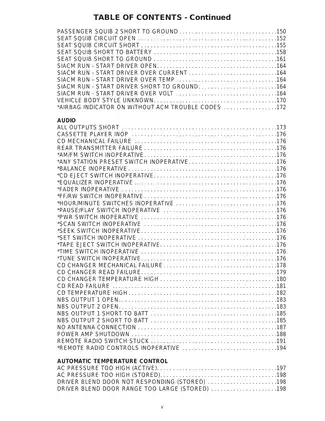

Sample pages from the 2001-2005 Chrysler Town & Country / Voyager / Caravan Service Manual manual
Purchase & Download
Town-Country Models Covered & Key Technical Specifications
Models: 2001–2005 Chrysler Town & Country, 2001–2005 Chrysler Voyager, 2001–2005 Chrysler Caravan
Sub-models / Variants: LHD (Left-Hand Drive), RHD (Right-Hand Drive), Base, Midline
Build Years: 2001–2005
Technical Data:
- Communication: PCI Bus (Programmable Communication Interface) multiplex system
- Data Transmission Rate: 10,800 bits per second
- Bus Voltage: 0–7.5 volts during transmission
- Chime Sound Intensity: Approximately 72 decibels
- Operating System Voltage (Cabin Heater): Voltage above 15.5 volts triggers B1802 error code
Town-Country Manual Features & Content Preview
2001–2005 Chrysler Town & Country Service and Diagnostic Documentation
- Covers 2001–2005 Chrysler Town & Country, Chrysler Voyager, and Caravan, including all LHD and RHD variants.
- Official factory-level diagnostic publication, documented for the 2001–2005 production cycle.
- Features a detailed six-step troubleshooting methodology optimized for DRBIII diagnostic tool utilization.
- Contains extensive electrical system mapping, including 1,142 pages of schematics, pinout tables, and diagnostic logic.
- Re-download the file any time, no expiration.
- OCR text layer lets you jump to a torque spec by keyword.
- This 2001–2005 Chrysler Town & Country service manual serves as the primary technical reference for body electronics, airbag systems, and climate control configurations.
System Scope and Diagnostics
This 2001–2005 Chrysler Town & Country service manual details the complex body electrical architecture utilized across the RS and RG platform. The content focuses on the interaction between modules over the PCI bus, covering everything from the Airbag system's staged deployment controllers to the intricate workings of the Automatic Temperature Control (ATC) and Manual Temperature Control (MTC) modules. Diagnostic segments provide logic flow for every active and stored trouble code related to instrument clusters, exterior lighting, memory seats, and the specialized Diesel Cabin Heater Assist (DCHA) components.
Electrical Reference and System Operation
The documentation provides a deep dive into component locations, harness connector pinouts, and bus signaling characteristics. Reference values for the ambient temperature sensor include a resistance range of 29.33–35.99 Kilohms at 0°C (32°F). Blower motor pulse-width modulated (PWM) ground signals are specified for both front and rear units, ensuring accurate fan speed control. Diagnostic tables document the behavior of the Tire Pressure Monitoring (TPM) system, including critical pressure alerts triggered below 179 kPa (26 PSI). For further study on factory standards, refer to what an OEM service publication covers to understand how the PCI bus communication and module wiring are mapped for professional technicians. Reference only — always consult a certified technician before performing service on this equipment.
