Chrysler Town & Country LX/LXi 1996–2000 Service Manual Set

The diagnostic books isolate faults; the matching service groups supply removal and repair procedures. NS and export GS applications differ, so matching the engine, drivetrain, and steering configuration matters before selecting a procedure.

Coverage note: The files are organized into 1996–1997, 1998, and 2000 folders; a separate 1999 manual is not included. FWD/AWD, LHD/RHD, short- and long-wheelbase, and commercial-van configurations are covered where specified in the relevant sections.

PDF Files, Search and Diagram Detail

Search and navigation: Service text and diagnostic charts are generally searchable, but many 2000 Group 8W diagrams and some illustration labels are not. Most service PDFs have embedded bookmarks; the body and diesel diagnostic books do not, and a few bookmark entries elsewhere have unusable destinations. Small wiring labels require zooming, and some body-diagnostic illustrations have faint lettering.

The ZIP contains 191 printable English PDFs totaling 8,021 pages. This total includes six navigation pages, the four-page 1998 front-matter section, all blank pages, and the three-page supplementary trouble-code reference.

Engine, Transaxle and GS Diagnostic Coverage

The following selection of covered work highlights the main repair areas. Other topics include exhaust/turbocharger service and overhead-console diagnostics.

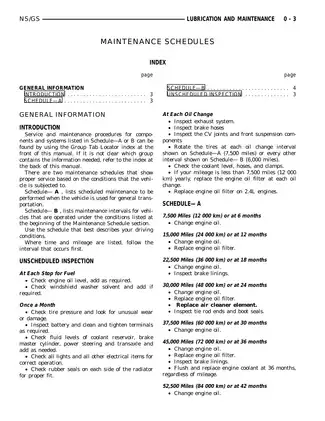

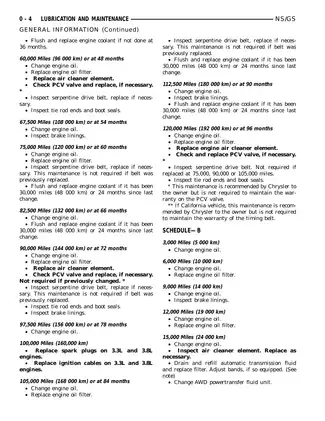

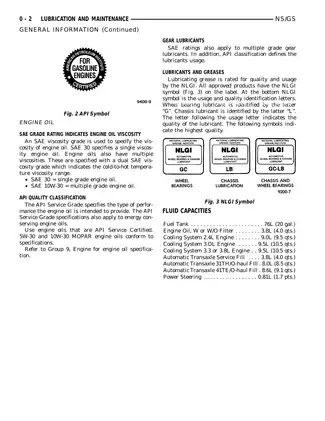

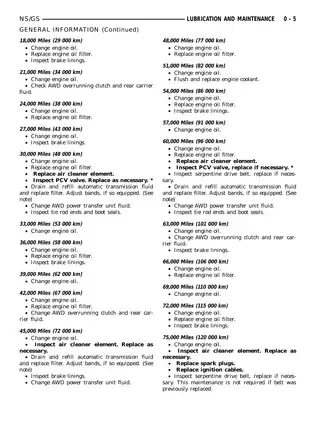

• Maintenance and engine repair: Maintenance schedules, compression and leakage testing, engine removal, timing-system repair, cylinder-head service, internal inspection, and assembly specifications.

• Transaxles and AWD: Automatic-transaxle pressure and air tests, clutch-pack and valve-body work, manual-transaxle repair, clutch service, and PTU/driveline procedures.

• Brakes, suspension, and steering: Alignment, suspension repair, base-brake and Mark 20i ABS/traction-control service, bleeding, rotor/drum work, and power-steering testing.

• Fuel and cooling systems: Fuel-delivery diagnosis, diesel injection-pump timing, emissions-system tests, cooling-system diagnosis, and water-pump and thermostat service.

• HVAC and body: Front/rear HVAC diagnosis, R-134a service, actuator calibration, stationary-glass replacement, seats, body panels, sliding-door mechanisms, and liftgate hardware.

• Dedicated GS diagnostics: Body, gasoline-powertrain, and VM diesel fault isolation, DRBIII routines, DTC tests, verification procedures, and applicable module programming.

• Electrical reference: Group 8W wiring diagrams, connector pin-outs, power distribution, grounds, splices, and circuit diagnostics for control, safety, and convenience systems.

Written for professional automotive technicians involved in daily repair work, these manuals use DRBIII diagnostics and component-specific workshop tools.

Engine Repair and Inspection

Across the set, engine chapters cover 2.0L SOHC, 2.4L DOHC, 2.5L VM turbo-diesel, 3.0L V6, 3.3L V6, and 3.8L V6 applications, with 2000 flex-fuel coverage identified separately.

Step-by-step procedures cover engine removal and installation, cylinder-head and valvetrain work, timing-belt or timing-chain service, and oil-pump repair. Crankshaft, piston, and bearing inspection sections provide fitting data, wear limits, torque specifications, and special-tool references.

Automatic and Manual Transaxles

The 31TH and 41TE sections cover preliminary diagnosis, road tests, hydraulic-pressure and clutch/servo air tests, fluid/filter and cooler service, torque-converter removal, and internal reconditioning. Differential and shaft repair and adjustment procedures extend the coverage beyond routine service.

A-598 sections address gearsets, synchronizers, shift cables, seals, and bearing preload; A-558 procedures identify the applicable RHD installations. AWD material covers the power transfer unit, propeller shaft, and rear driveline module.

PTU service limits: The 2000 PTU section limits service to fluid, seals, gaskets, one ball bearing, and the output flange. Failure of the ring gear and pinion, tapered roller bearings, case, covers, or pinion carrier calls for replacement of the complete unit.

Handling cautions: The 41TE instructions warn that mixing clutch discs or plates can cause unit failure and that handling the valve body by its manual valve can damage it; the PTU removal section also warns against allowing the propeller shaft to hang unsupported.

HVAC, Chassis and Body Work

HVAC procedures include actuator calibration, diagnostics, and cooldown testing after control-module replacement. Refrigerant recovery, evacuation, leak checking, and front/rear component service accompany the R-134a information.

Body sections address water-leak and wind-noise diagnosis alongside glass, door, seat, and trim work. Brake procedures distinguish base hydraulics from the applicable ABS system, while steering sections provide pump/gear service, flow and pressure tests, and air-removal procedures.

Body and Powertrain Fault Isolation

Body systems: The GS diagnostic book follows a six-step troubleshooting structure. It covers airbag, BCM, SKIS/VTSS, audio, chime, compass/mini-trip computer, mechanical instrument cluster, door-ajar inputs, lighting, fuel-level sender, manual A/C, power locks, RKE, folding mirrors, and front/rear wipers.

CCD tests address nonresponding modules, missing bias or termination, and bus wiring faults. DRBIII routines include code handling, BCM tests, RKE transmitter programming, compass setup, and body, airbag, and theft-system verification.

Gasoline and diesel: PCM/ECM and SKIS sections provide OBD/DTC tests, driveability checks, and component-location views. Gasoline diagnostics cover charging, injectors, ignition, crank/cam signals, oxygen sensors, misfire, EGR, catalyst, and EVAP faults.

The VM diesel book adds boost, accelerator-pedal, glow-relay, fuel-quantity, needle-movement, and timing-governing diagnostics. Applicable PCM, SKIM, and ignition-key programming procedures are identified in the gasoline diagnostic volume.

Wiring, Locations and Workshop Tools

Electrical references include power-distribution and junction-block diagrams, fuel/ignition schematics, transmission-control circuits, airbag/ABS diagrams, and BCM/CCD/power-lock/VTSS sheets. Connector pin-outs and ground/splice views support circuit tracing.

Location sections identify the data link connector, BCM, fuse block, airbag modules, instrument cluster, RKE, SKIS, power distribution center, and wiper/washer components. These views connect the diagnostic charts to the relevant harness and component locations.

Tool references include DRBIII, transaxle pressure gauges C-3292 and C-3293SP, spring compressor C-3575-A, and trim stick C-4755.

The electrical precautions explain how disconnecting powered modules or piercing wire insulation can cause module damage or later corrosion.

Safety note: Follow the section-specific precautions before working on airbag squib circuits, powered control modules, brake hydraulics, fuel systems, or R-134a refrigerant. Use the prescribed isolation and recovery methods to prevent module damage, accidental deployment, fire, or personal injury.

Examples of Engine Clearance and Wear Data

For the 2000 3.3L/3.8L engines, the piston-ring specifications list a top compression-ring gap of 0.30–0.55 mm, with a 1.0 mm wear limit. These values accompany the internal engine inspection and fitting information.

The same engine section gives crankshaft end play as 0.09–0.24 mm and lists a separate wear limit of 0.381 mm, distinguishing the standard range from the replacement threshold.
