Chrysler / Dodge Town & Country, Voyager & Caravan 2001–2005 Diagnostic & Repair Manual Set
5,651 Pages • ZIP Download: 21 Printable PDFs • 59.37 MB
Town-Country Models Covered & Key Technical Specifications
Models: Chrysler Town & Country, Chrysler Voyager, Caravan
Sub-models / Variants: SE, Sport, SXT, C/V, LHD (Left Hand Drive), RHD (Right Hand Drive), 3-speed transaxle, High-line, Base
Diesel variants: RG 2.5L (R2516C5; MTX), RG 2.8L (R2816C5.05A; ATX)
Transaxle variants: RS/RG electronic automatic transaxles (41TE/AE; 41TE TCM/EATX; 40TE/41TE PCM/NGC), NV T850 5-speed manual transaxle (2.4L gasoline / 2.5L turbo diesel)
Model Years: 2001–2005 (2001, 2002, 2003, 2004, 2005)
-
Vehicle communication speed: 10800 bps
-
Chime sound intensity: 72 dB
-
Tire pressure threshold (Low, EVIC system, warning ON): 179 kPa (26 PSI)
-
Tire pressure threshold (High, EVIC system, warning ON): 310 kPa (45 PSI)
Town-Country Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 2001–2002 Gasoline Powertrain Diagnostics — Town & Country, Caravan/Grand Caravan and Voyager/Grand Voyager; 2.4L and 3.3L/3.8L engines | 332 |
| 2002 Body Diagnostic Procedures — LHD/RHD | 1,168 |
| 2002 Chassis Diagnostics — ABS, traction control and adjustable pedals | 78 |
| 2002 RG 2.5L Diesel Powertrain Diagnostics | 264 |
| 2002 RS/RG 41TE/AE Transaxle Diagnostics | 182 |
| 2003 RG 2.5L Diesel Service Supplement | 149 |
| 2003 RG 2.5L Diesel Powertrain Diagnostics | 282 |
| 2005 Body Diagnostic Procedures — LHD/RHD | 1,402 |
| 2005 Chassis Diagnostics — ABS and traction control | 84 |
| 2005 RG 2.5L/2.8L Diesel Powertrain Diagnostics | 288 |
| 2005 RG Diesel Service Supplement | 333 |
| 2005 RS Gasoline Powertrain Diagnostics — supplied as 2005-RG-Powertrain.pdf | 368 |
| 2005 RS Gasoline Powertrain Diagnostics — supplied as 2005-RS-Powertrain.pdf | 370 |
| 2005 RS/RG Electronic Transaxle Diagnostics | 334 |
| Separate covers, forewords and section locators — four PDFs | 12 |
| Technical-publication launch pages — two PDFs | 2 |
| Supplementary Dodge/Chrysler/Jeep DTC reference | 3 |
The diagnostic books address faults in their listed model years and control systems. The diesel supplements provide mechanical repair procedures alongside the separate diesel diagnostic volumes.
Coverage limits: The Body, Chassis, Powertrain and Transmission diagnostic books refer to separate service information for many component removal and repair procedures. The diesel supplements direct readers to the corresponding Voyager Service Manual for other systems; those complete base service manuals are not included.
Searchable Text, Chapter Bookmarks and Diagram Detail
Text search and diagram navigation: Main text supports searching, while many schematic and chart labels are embedded as images. The technical volumes have internal chapter bookmarks, but some cross-file links have invalid or unavailable targets. Six supporting PDFs have no embedded bookmarks; the 2005 launch page has cross-file bookmarks. Small wiring labels require zooming.
The ZIP contains 21 printable PDFs totaling 5,651 pages. That total includes 12 separately stored front-matter pages, two launch pages, a three-page DTC reference, and 46 internal note, blank and feedback pages; two additional blank pages are already included in the front-matter count.
RS/RG Fault Diagnosis and Diesel Mechanical Repair
The following highlights are a selection of the contents. Other topics include compass calibration and diesel maintenance schedules.
-

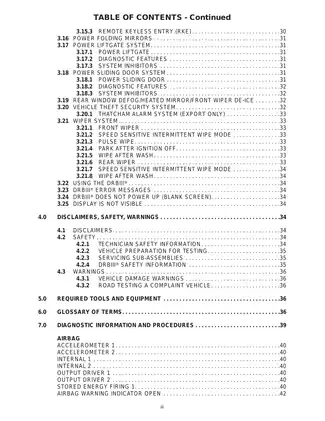

Body electronics: DRBIII fault isolation for BCM/FCM communication, power sliding doors, the power liftgate, security systems, lighting and wipers.
-

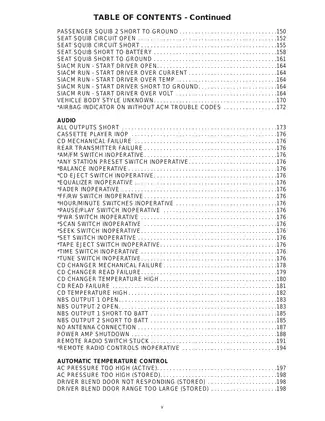

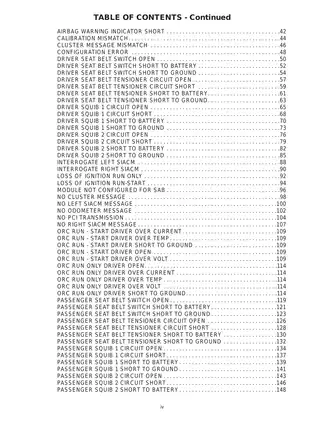

HVAC and restraints: Airbag and OCS verification, automatic/manual temperature-control diagnosis, HVAC cooldown tests, door recalibration and diesel cabin-heater checks.
-
ABS and traction control: Teves system diagnostics, wheel-speed sensor tests, controller checks, pump circuits and brake-warning indicator fault tracing.
-
Gasoline and diesel controls: Step-by-step DTC procedures, no-start and driveability testing, charging checks, sensor diagnosis and PCM/ECM verification.
-
Diesel engine repair: Engine removal and installation, cylinder-head work, piston/liner inspection, timing-belt service, turbocharger repair and common-rail fuel-system procedures.
-
Transmission and driveline: Electronic-transaxle diagnosis, DRBIII Quick Learn, NV T850 disassembly and assembly, clutch hydraulics, Power Transfer Unit and rear-driveline service.
Written for professional automotive technicians, these publications assume familiarity with automotive diagnosis and the use of DRBIII equipment, electrical test instruments and the specified service tools.
Body Modules, PCI Communication and Wiring References
Network fault tracing: The single-wire PCI bus procedures combine module-by-module checks, short-circuit isolation and DRBIII lab-scope testing. Connector references cover the 49-way Front Control Module, BCM C1–C5 connectors, Integrated Power Module connections and dedicated sliding-door and liftgate modules.
Schematics include Airbag System, PCM Communication, Integrated Power Module/Body Control Module Power and Grounds, Power Liftgate System and Power Sliding Door System, with a separate PCI Bus Lab Scope Pattern. Together with connector views and active/stored DTC information, these references support fault tracing beyond a generic code description.

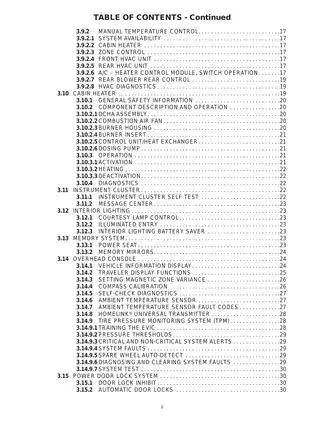

Equipment differences: Body coverage addresses the instrument cluster, memory seats and mirrors, adjustable pedals, RKE/VTSS and diesel cabin-heater assist. The 2005 material also covers Occupant Classification System logic, Park Assist, hands-free telecommunications, power windows and SKREEM-based tire-pressure monitoring.
The earlier EVIC tire-pressure system uses a sensor-training procedure. The 2005 SKREEM system learns sensor IDs while driving and uses different warning thresholds.
ABS, Gasoline Controls and Diagnostic Tools
The chassis books distinguish Teves Mark 20 and Mark 20e ABS systems, with traction-control operation, controller inputs, hydraulic-control-unit circuits and verification tests. Adjustable-pedal diagnosis is also included in the 2002 chassis volume.
Gasoline diagnostics address the 2.4L and 3.3L/3.8L engines, including fuel control, ignition, emissions monitoring and intermittent faults. The 2005 NGC PCM documentation identifies four color-coded 38-pin connectors and specifies Miller #3638 Terminal Removal Pick and #8815 Pinout Box; incorrect terminal release or probing can damage connectors and terminals.
Common-Rail Diesel Engine and Driveline Service
The diesel service material distinguishes the manual-transmission 2.5L application from the automatic-transmission 2.8L application. Repair coverage extends to cylinder-head and internal-engine inspection, timing-belt tensioning, cooling, exhaust, turbocharger, fuel-system and emissions components, with compression, fluid-capacity and component-specific torque tables.
The timing sections explain how incorrect engine positioning during cylinder-head or timing-belt work can cause valve and piston damage. Listed tools include VM.1051 and VM.1083 locating pins and VM.1074 Timing Belt Retainer.
Clutch and transaxle work: NV T850 coverage includes internal disassembly, inspection and assembly. Electronic-transaxle references add Clutch Volume Index data, DTC event data, verification tests and electronic pinion-factor programming where applicable.
Rear-driveline coverage distinguishes the ATF+4 overrunning-clutch sump from the differential’s 80W-90 lubricant requirement. The rear differential itself is serviced as an assembly.
A Preview of PCI Bus, Sensor and Quick Learn Data
PCI bus operation is described as zero volts when idle and approximately 7.5 volts during transmission. Ambient-temperature sensor checks include a resistance range of 17.99–21.81 kΩ at 10°C (50°F).
For the 2005 SKREEM tire-pressure system, the low-pressure warning switches ON at 193 kPa (28 PSI) and OFF at 227 kPa (33 PSI), illustrating the system-specific warning and reset data.
The electronic-transaxle Quick Learn prerequisites include transmission-oil temperature between 15°C and 93°C (60°F and 200°F), alongside the other operating conditions specified in the procedure.
Follow the factory safety and isolation procedures for electrical, restraint, high-pressure diesel fuel, transmission and A/C work.
