Hyundai Elantra GLS 2007 Service Manual Set

The system files let you open the relevant repair section directly and consult the accompanying wiring and component-location information. The separate code references supply brief DTC descriptions; diagnostic test sequences appear in the corresponding system files.

Check individual file headings: Most sections in the 2007–2008 folder identify a 2007 Elantra GLS or SE, while the steering chapter identifies a 2008 model. The separate cabin-air-filter sheet describes an Elantra 2001–2006 procedure. The file named “maintenance reminder light” contains Tucson TPMS information, not an Elantra maintenance-reminder procedure.

Transmission repair limits: The automatic-transaxle material includes diagnosis and service, but a separate complete overhaul volume is not included. The manual-transaxle sections address service, removal, installation, and shift controls rather than a complete internal rebuild.

PDF Search, Wiring Detail, and File Contents

Search and diagram access: System text and figure captions are searchable, but labels within diagram images and the two separate DTC references are not. None of the PDFs has embedded bookmarks. Small labels in the wiring PDFs require zooming.

The ZIP contains 96 printable PDFs totaling 4,989 pages. That total already includes the 52 pages of separate DTC references, the eight-page Tucson TPMS file, and 69 pages containing figure captions without the corresponding illustration on the same page. Two HTML indexes are also included.

Engine Repair, Chassis Service, and Circuit Diagnosis

This selection of contents is not a complete table of contents. Further topics include rear-window defogger grid repair and sunroof initialization.

• Engine and fuel management: G4GC engine disassembly, timing-belt and valve-clearance procedures, cylinder-head and block repair, CVVT checks, cooling, lubrication, and OBD-II diagnosis.

• Transaxles and driveline: Automatic-transaxle pressure checks and road tests, manual-transaxle removal and installation, clutch repair, shift-control inspection, axle shafts, and hubs.

• Brakes and chassis: Base brakes, ABS, TCS, EBD, ESC, suspension, steering, and wheel alignment, with bleeding, HECU testing, variant coding, and steering-angle calibration.

• Heating and air conditioning: Refrigerant recovery and charging, performance and leak tests, compressor and actuator service, and diagnosis of manual and automatic climate controls.

• Electrical systems: Wiring diagrams, component locations, starting and charging tests, immobilizer teaching, keyless-entry functions, lighting, and accessory-circuit checks.

• Restraints and body: Airbag diagnosis and replacement, occupant-classification components, interior and exterior panels, glass, seats, and seat-belt service.

Suited to technicians and experienced mechanics with precision measuring tools, suitable scan equipment, and experience working with the systems being serviced.

G4GC Engine Inspection and Fuel-System Diagnosis

The engine sections contain step-by-step procedures for removing the engine and transaxle assembly, servicing the timing system, and dismantling and inspecting the cylinder head and engine block.

Internal inspection extends to valve seats and guides, cam-lobe measurements, piston and connecting-rod orientation, crankshaft journals, and bearing selection from identification marks. Mechanical lash-adjuster procedures explain shim measurement and selection. Cooling and lubrication coverage includes pressure testing, water-pump and thermostat inspection, oil-pump checks, and related replacement work.

Fault tracing: Fuel-system chapters connect ECM terminal information and sensor or actuator tests with DTC-specific checks. Freeze-frame data, readiness monitors, intermittent-fault investigation, and harness and connector inspection support diagnosis before a component is condemned.

Transmission Differences and Chassis Electronics

The 2006 material identifies the F4A42 automatic and M5BF2 manual transaxles. Later sections identify A4CF2 automatic and M5CF2 manual units. Operating-element charts, sectional views, hydraulic circuits, symptom charts, and electrical checks distinguish the automatic-transaxle documentation from basic fluid-service instructions.

Control-system material covers speed sensors, range switches, temperature sensing, and solenoids. Clutch sections add hydraulic bleeding, cover and disc inspection, release components, and master- and release-cylinder work.

Steering configurations: The earlier files describe hydraulic power steering, including pump, hose, and steering-gear service. The later steering chapter addresses motor-driven EPS, Hi-Scan Pro diagnosis, absolute steering-position calibration, and EPS type recognition.

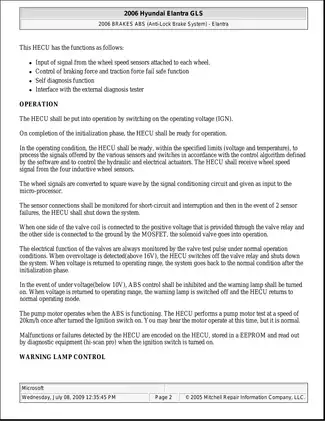

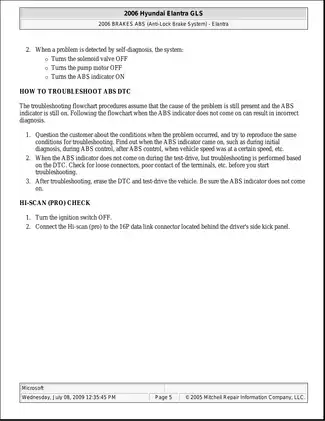

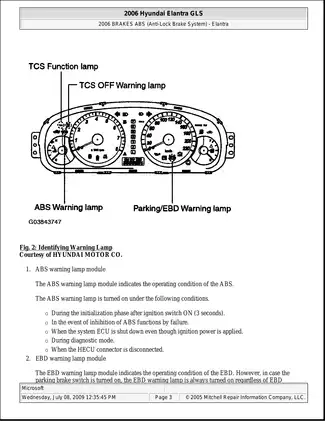

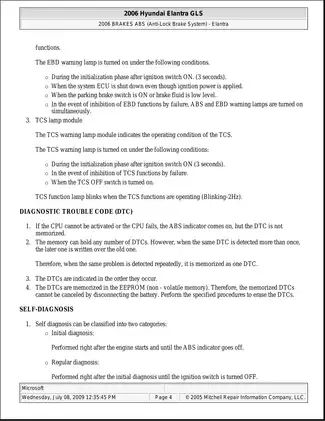

Brake-control documentation adds warning-lamp behavior, fail-safe logic, wheel-speed-sensor checks, and HECU connector information. ESC replacement procedures include variant coding, with separate steering-angle-sensor calibration material.

Wiring References, Body Systems, and Tools

The collection contains approximately 4,700 numbered figure entries, including many illustrations credited to Hyundai Motor Co. Examples include automatic-transaxle hydraulic circuits and sectional views, ABS/ESC hydraulic and HECU diagrams, G4GC timing and bearing-identification drawings, HVAC refrigeration-cycle and airflow diagrams, and electrical ground- and power-distribution circuits.

Starting, charging, SRS, immobilizer, and keyless-entry circuits supplement the general wiring files. Component-location information helps connect schematic references with the relevant connectors, grounds, and assemblies.

Service equipment: Tool charts cover engine support, valve shims and guides, seal installation, steering, suspension, HVAC, and SRS work. G4GC examples include engine-support fixtures 09200-38001/09200-1C000, valve-clearance tool 09220-2D000, and valve-spring compressor components 09222-28000/09222-28100.

Torque tables, capacities, electrical test values, adjustment specifications, and wear limits accompany the relevant procedures.

Assembly Cautions and Shop Requirements

Incorrect adjustment direction can cause a timing-belt tensioner malfunction; an incorrect cylinder-head bolt-release sequence can warp or crack the head. Bearing-clearance correction relies on the marked bearing-selection system, without filing, scraping, or shimming bearings or caps.

SRS, pressurized fuel and brake systems, refrigerant handling, and engine removal require the isolation, recovery, lifting, and protective equipment specified for the work. Check the individual section’s vehicle identification before selecting a procedure.

Examples of Cold Valve Settings and Bearing Clearances

For the 2007 G4GC engine, the valve-clearance specifications list cold settings at 20°C (68°F) of 0.20 mm for intake valves and 0.28 mm for exhaust valves. The related MLA section includes shim-selection information.

The crankshaft inspection section lists standard main bearing-to-journal oil clearance as 0.028–0.046 mm. Bearing-selection tables relate the block and crankshaft identification marks to the appropriate bearing grades.
