Honda ATC200M ATV Service Manual 1984–1985 (P/N 61VM301)

Honda factory shop manual for 1984–1985 ATC200M three-wheel ATVs, P/N 61VM301, covering maintenance, fault diagnosis, and mechanical repair.

PDF Search, Chapter Bookmarks, and Wiring Detail

Search and diagram navigation: OCR text search is available, but recognition errors can prevent some terms from being found. Bookmarks cover the contents, service chapters, and wiring diagrams. Small wiring labels require zooming.

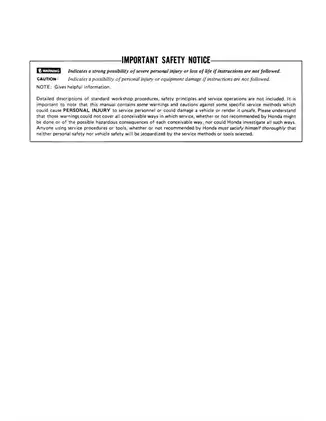

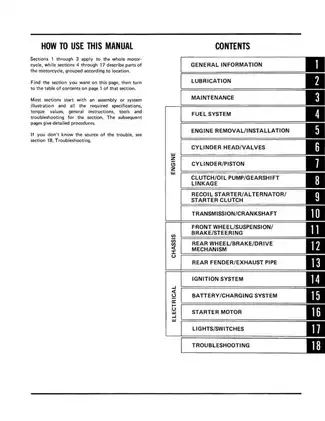

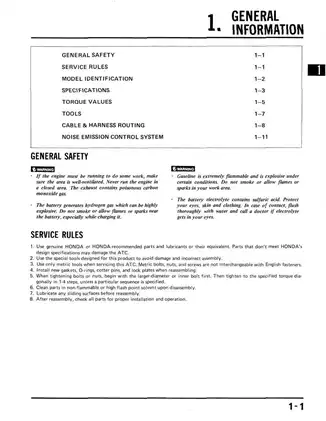

One printable, English-language 214-page PDF, including the original cover, safety notice, contents page, and four memo pages.

Engine Overhaul, Drivetrain Service, and Electrical Diagnosis

The following selected repair topics outline the manual’s coverage. Additional subjects include rear-fender removal and exhaust-pipe and muffler service.

• Routine maintenance: Engine lubrication, oil-filter screen and rotor cleaning, air-cleaner service, spark-plug checks, valve-clearance adjustment, cam-chain tension, and drive-chain maintenance.

• Engine repair: Engine removal and installation, cylinder-head disassembly, valve-guide replacement, valve-seat inspection and refacing, camshaft and rocker-arm inspection, and cylinder/piston service.

• Clutch and drivetrain: Centrifugal and manual clutch service, oil-pump inspection, gearshift-linkage repair, recoil starter and starter clutch service, crankcase separation, and transmission assembly.

• Fuel system: Carburetor removal and overhaul, float/float-valve/jet inspection, float-level and pilot-screw adjustment, throttle-valve service, and factory high-altitude settings.

• Chassis and rear drive: Front/rear wheel and brake service, front-fork overhaul, steering-stem bearings, axle inspection, final driven sprocket, and rear bearing-holder service.

• Electrical troubleshooting: CDI ignition tests, battery and charging checks, starter-motor and relay diagnosis, switch-continuity charts, system schematics, and model-year wiring diagrams.

This manual is suited to technicians and experienced owners who are already comfortable with mechanical inspection, disassembly, measurement, and safe shop practice. Detailed explanations of standard workshop procedures and safety principles are not included.

Model-Year Differences That Matter

The manual separates 1984 from “After ’84” configurations where the machines differ. Carburetor identification is PD55A for 1984 and PD55C for After ’84.

Other differences include throttle-adjustment locations and throttle-lever hardware, cable/harness routing, spark-arrester service, ignition-coil test specifications, and ignition-switch continuity checks. Those distinctions are useful when diagnosing a no-spark or control problem, checking the correct carburetor configuration, or confirming which repair procedure applies before parts are removed.

Internal Engine and Transmission Work

Step-by-step procedures cover cylinder-head disassembly and assembly, valve-guide replacement, valve-seat refacing, piston-ring installation, and camshaft installation. Inspection tables distinguish standard dimensions from service limits.

The service information identifies operations requiring engine removal and components serviceable in the frame. Clutches, the oil pump, and gearshift linkage can be serviced without removing the engine; crankshaft and internal transmission work require crankcase separation.

Transmission inspection covers gear dogs, mainshaft and countershaft wear, shift forks, the fork guide shaft, and bearings. Assembly illustrations show gear order, thrust washers, and snap-ring placement.

Fuel-System Settings and Repair Cautions

The carburetor chapter distinguishes initial pilot-screw settings from final adjustment and documents the high-altitude main-jet and needle-position changes. Its cautions address pilot-screw seat damage from overtightening and overheating or engine damage when high-altitude settings remain in use at lower elevations.

Clutch and crankshaft sections also warn about damage to the crankshaft oil-pressure pad during disassembly.

Electrical Tests and Symptom-Based Fault Tracing

Illustrated references include the 1984/After ’84 ignition-system schematic, charging-system circuit diagram, starter-system circuit diagram, switch-continuity charts, and separate full wiring diagrams for 1984 and After ’84.

Ignition tests cover the coil, alternator exciter coil, CDI unit, pulse generator, and timing. Charging and starting sections add battery-specific-gravity checks, charging-output tests, regulator and alternator-coil checks, and starter-motor brush, commutator, field-coil, and relay inspection.

The CDI test section specifies suitable meters and warns that an unsuitable tester can produce false readings. The final troubleshooting charts connect symptoms such as hard starting, loss of power, poor low- or high-speed performance, and handling problems with checks and probable causes.

Chassis Inspection and Workshop References

Front-fork procedures cover disassembly, spring and tube inspection, seal replacement, and reassembly. Wheel and rear-drive sections include bearing replacement, axle-runout checks, brake-drum and lining inspection, and driven-sprocket damper checks.

For wheel, suspension, and rear-drive work, the manual calls for the ATC to be properly supported before service.

Component-specific torque tables, standard torque data, wear limits, clearances, and electrical test values accompany the relevant sections. Factory tool references include clutch center holder 07923-9580000, flywheel puller 07733-0010000, fork seal driver 07747-0010100, and digital multi-tester KS-AHM-32-003, plus bearing, valve-guide, and steering-race tools.

Valve, Carburetor, and Fork Specification Examples

Cold intake and exhaust valve clearance is 0.05 mm (0.002 in). The PD55A and PD55C carburetors share a specified float level of 14 mm (0.55 in).

The front-fork assembly section specifies an oil level of 137 mm (5.4 in), measured from the top of the tube with the fork fully compressed.
