1996 Mercury 30 JET & 40 HP (4-Cylinder) Outboard Service Manual (P/N 90-814676R1)

Mercury Marine's December 1996 service manual, publication 90-814676R1, covers the 30 JET and 40 (4 CYL) outboards. It addresses electric-start and manual-start configurations, tiller controls, propeller and jet drives, and the documented trim and tilt designs.

• Ignition and starting: Black- and red-stator testing, switch-box diagnosis, charging checks, starter-circuit troubleshooting, Bosch starter repair, and rewind-starter reassembly.

• Fuel and carburetion: Fuel-pump rebuilds, WMA7B and WMA9 carburetor overhaul, float adjustment, enrichment-system tests, and carburetor synchronization.

• Powerhead and midsection: Powerhead removal, cylinder and crankshaft inspection, piston and reed-block service, and clamp/swivel bracket and drive-shaft housing procedures.

• Power trim and manual tilt: Design-specific hydraulic troubleshooting, trim-motor checks, leak-down diagnosis, seal replacement, reassembly, and system bleeding.

• Gear housing and jet drive: Water-pump and bearing-carrier service, gear-housing overhaul, pinion shimming, backlash measurement, and jet-impeller adjustment.

• Steering and controls: Ride-Guide installation and maintenance, tiller-handle cable work, Co-Pilot fitting, and shift-linkage and interlock adjustments.

• Oil injection: Pump-drive inspection, oil-line bleeding, pump-output testing, reservoir service, and low-oil sensor and warning-module fault isolation.

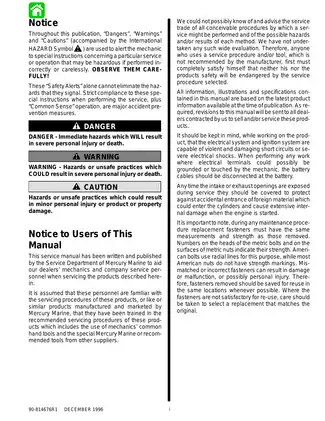

Written for Mercury dealer mechanics and company service personnel, this manual assumes training in outboard servicing and familiarity with common shop tools and the specified special tools.

Ignition and Fuel Diagnosis

Separate black- and red-stator test paths, including the red-stator adapter module, help identify the appropriate measurements before diagnosing a failed stator or switch box. Model-specific wiring diagrams and the Starter Circuit Troubleshooting Flow Chart support electrical fault tracing.

Fuel diagnosis distinguishes pump, carburetor, and enrichment-system symptoms. Carburetor Jet Orifice Sizes charts address altitude-dependent jet selection, while exploded fuel-pump and carburetor views accompany disassembly and assembly instructions.

Electrical and fuel work involves high voltage and flammable gasoline; follow the manual's isolation and fire-prevention precautions.

Internal Powerhead Repair

Cylinder inspection, honing, bearing checks, and connecting-rod assembly extend the coverage to internal engine repair, with wear limits, special tools, and torque data. The cylinder block and crankcase cover are identified as matched parts.

The piston assembly instructions warn that incorrect ring positioning at the locating pins can break the rings during assembly.

Power Trim and Manual Tilt Designs

Power-trim Designs I–IV have individual service sections; manual tilt is divided into Designs I–III and Design IV. Power Trim Flow Diagrams relate raising, lowering, and leak-down faults to the hydraulic circuits.

The Design I trim oil pump, Design IV trim motor, and manual-tilt nitrogen accumulator are not serviceable internally and are replaced as assemblies.

Gear Housing, Jet Drive, and Propellers

Propeller-drive procedures address forward/reverse gears, the clutch mechanism, bearing carriers, and pinion depth. Gear setup includes shimming and backlash measurements with specified service tools.

Jet-drive coverage adds liner wear, impeller clearance, reverse-gate adjustment, and installation-height assessment. The Boat Test Chart records operating results, while Flo-Torq I and II instructions address propeller installation.

Reinstalling a used water-pump impeller with its vane set reversed can cause premature failure.

Steering, Starting Controls, and Oil Injection

Single- and dual-outboard Ride-Guide layouts address cable routing and steering-coupler geometry. Tiller sections include neutral-start and lanyard-stop wiring, and the rewind starter has separate instructions for new and reused springs.

Oil-injection diagnostics distinguish low oil level from sensor, horn, or module faults. The pump volume test and crankshaft drive-gear inspection add mechanical checks alongside the electrical warning-system tests.

A Preview of Stator, Timing, and Float Data

These examples show a small part of the manual's ignition and carburetor data. For red-stator electric- and manual-start engines, resistance between GRN/WHT and WHT/GRN is specified as 660–710 ohms with a cold engine at room temperature.

The float-level specifications are 1/4 ± 1/64 inch for WMA7B and 11/16 ± 1/64 inch for WMA9 carburetors, measured from the float bottom to the casting.

The timing section specifies maximum advance of 30° BTDC at 5,500 RPM with the engine running.

PDF Search, Navigation, and Page Breakdown

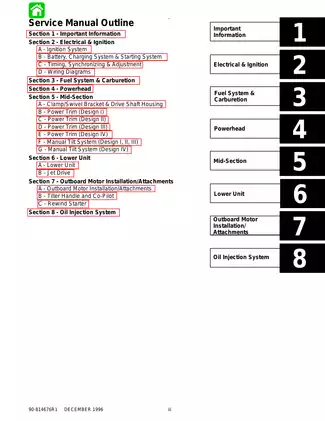

Text search and diagram navigation: Body text is searchable; some labels within diagrams are not. Embedded bookmarks link to service sections; the Oil Injection System parent entry has no destination, although its subentries work. Small wiring labels require enlargement for comfortable reading.

One printable English PDF contains 532 pages: the original cover, three introductory pages, and 528 section pages. Section dividers, contents pages, and the single Notes page are included in that total.
