Arctic Cat DVX 90 & Utility 90 ATV Service Manual (2008)

Arctic Cat service manual for the 2008 DVX 90 and 90 Utility youth ATVs, covering the Y-12 engine/transmission.

Searchable PDF with Section Bookmarks

Text search and section access: Searchable text runs through all ten sections, while labels within some illustrations are image-based. Embedded bookmarks open the contents page and each section. The red entries on the contents page are not active links.

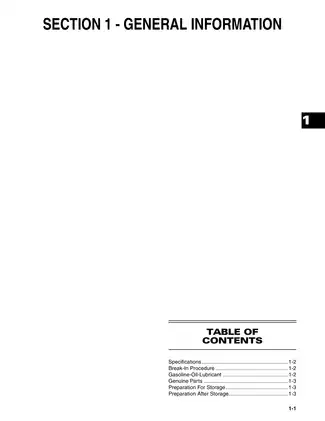

One printable English PDF contains 115 pages, including the opening contents page. The file starts with that page; the original cover and the foreword listed in the contents are not included.

Engine, CVT, Electrical and Chassis Service

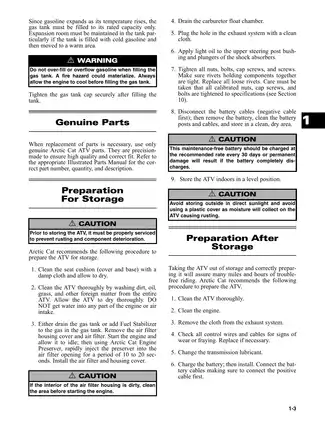

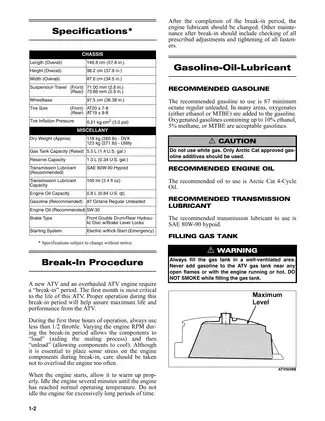

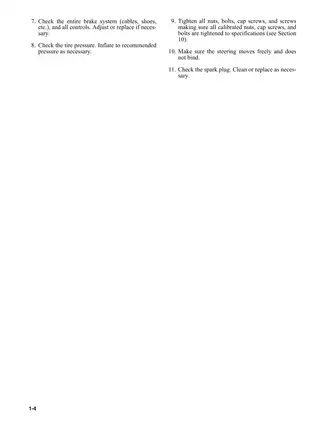

The following selected service topics outline the main workshop coverage. Other material includes break-in guidance and preparation for storage and return to service.

• Periodic maintenance: Valve/tappet adjustment, compression testing, air-filter and spark-plug service, spark-arrester cleaning, lubricant changes, throttle adjustment, and scheduled inspections.
• Engine repair: Step-by-step procedures for power-unit removal, crankcase separation, cylinder-head and valve service, oil-pump inspection, reassembly, installation, and operating checks.
• CVT and final drive: Belt replacement, drive-face and centrifugal-clutch inspection, driven-pulley service, reduction gears, chain adjustment, sprocket replacement, and rear-axle repair.
• Fuel system: Keihin PTE carburetor removal, disassembly, cleaning, inspection, float-height setup, pilot-screw baseline, reassembly, and fuel-tank and valve service.
• Electrical diagnosis: Timing-sensor, CDI/ignition-coil, stator/magneto, choke-circuit, switch, starter-circuit, battery, and regulator/rectifier tests, supported by symptom-based troubleshooting tables.
• Brakes and chassis: Front drum-brake adjustment and shoe replacement, rear hydraulic-disc pad service and bleeding, hub bearings, suspension, steering, handlebar controls, wheels, and tires.
• Workshop references: Periodic Maintenance Chart, Battery Charging Chart, Carburetor Schematic, piston-ring and timing illustrations, inspection limits, electrical specifications, fluid data, and component torque tables.

This service manual is suited to technicians and experienced owners with safe lifting equipment, pullers, precision measuring tools, and electrical test equipment. Engine assembly and electrical diagnosis require existing workshop knowledge.

Y-12 Engine and Transmission Repair

Internal engine work: The procedures extend from cooling-shroud and flywheel removal through top-end disassembly and crankcase separation. Inspection material covers piston and ring condition, cylinder trueness and clearance, head distortion, valve-guide and rocker-arm wear, valve springs, cam lobes, and oil-pump clearances. The specification table also provides connecting-rod limits and crankshaft-runout data.

Assembly references: Illustrated instructions identify cam and flywheel timing marks, piston-ring orientation, sealing points, fastener locations, and checks after installation. The manual specifies the Compression Tester Kit (P/N 0444-213) and Surface Plate (P/N 0644-016) for the related engine work.

CVT inspection: Measurement coverage includes roller guides, the movable drive-face collar, belt width, clutch housing and lining, and driven-pulley spring. Reassembly also covers the starter one-way gear, countershaft sprocket, reduction gears, bearings, seals, and final-drive gear train.

Incorrect piston-ring installation or oil-pump locating-pin and sprocket alignment can damage the engine or pump drive.

Fuel and Electrical Fault Finding

The carburetor material distinguishes jet, needle-valve, float, and choke problems, with separate troubleshooting entries for starting, low-speed running, high-speed running, and overflow. Fuel-system procedures also address the frame-mounted ON/RES/OFF valve, gas tank, and vent hoses; lubrication coverage includes the oil screen and pump.

Component testing: Electrical procedures specify voltage, peak-voltage, and resistance checks using the Fluke Model 73 Multimeter (P/N 0644-191) and Peak Voltage Reading Adapter (P/N 0644-307). These tests and the symptom tables help distinguish fuel, ignition, and charging faults before selecting repair work.

Ignition timing can be checked but is not adjustable. The procedure specifies the Arctic Cat Tachometer (P/N 0644-275) and Timing Light (P/N 0644-296). Lighting coverage includes a DVX-specific headlight-bulb procedure and brake/taillight checks.

Electrical scope: Test points and troubleshooting data are included, but a complete vehicle wiring diagram is not. The starter-motor procedure covers removal and replacement rather than an internal overhaul.

Axles, Suspension, Steering and Controls

Rear-axle coverage explains which bearing and axle jobs can be performed with the axle housing still attached to the swing arm. Separate procedures address front-hub bearings and seals, shock absorbers, A-arms, swing-arm bushings, steering-post bearings, tie rods, handlebar switches, brake levers, and the rear master-cylinder assembly.

The suspension instructions warn that overtightened shock hardware can damage the eyelet or mount. Parts-number lookup is referred to the separate Illustrated Parts Manual; this service manual is not a parts catalog.

Fuel-system work, battery service, compressed springs, brake repair, and supporting the ATV require the manual’s safety precautions, suitable workshop equipment, and qualified judgment.

Selected Valve-Clearance and CVT Wear Specifications

Valve adjustment: Intake and exhaust tappet clearance is 0.1 mm at room temperature, approximately 68°F. The maintenance section provides the associated inspection and adjustment procedure.

CVT wear checks: The specification table lists a minimum V-belt width of 16.5 mm and minimum centrifugal-clutch lining thickness of 1.0 mm. Dedicated component-measurement instructions accompany these limits.
