Arctic Cat DVX 90 & Utility 90 ATV Service & Repair Manual — 2007

This Arctic Cat service manual covers maintenance, troubleshooting, and repair of the 2007 DVX 90 and Utility 90 ATVs, including the Y-12 four-cycle engine and automatic belt-drive transmission.

Searchable Chapters and Color Wiring Diagram

Text search and diagram detail: The manual’s text pages are searchable, with embedded bookmarks for all eleven sections and the wiring diagram. The wiring diagram itself is not text-searchable; its small wire-color labels and terminal markings require zooming for comfortable reading.

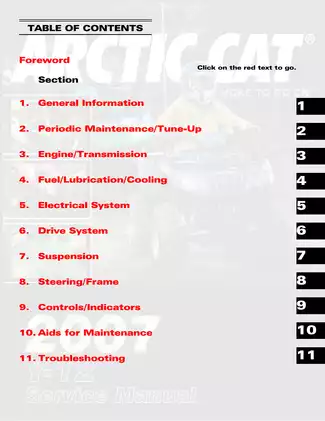

The download contains one printable, 115-page PDF in English. That total includes the opening contents page and the one-page wiring diagram appended after the troubleshooting section.

Engine Rebuilds, Belt Drive, and Electrical Diagnosis

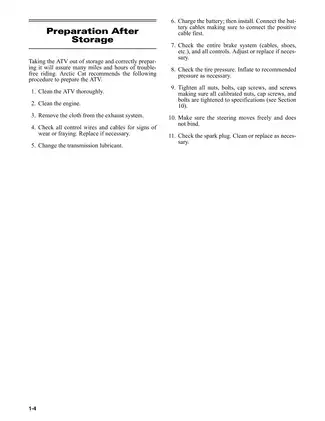

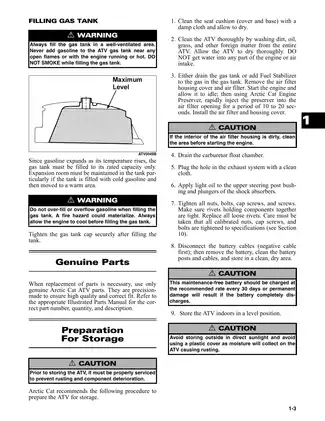

These selected content highlights outline the main workshop coverage. Other topics include storage preparation and muffler/spark arrester cleaning.

• Engine repair: Step-by-step procedures for engine removal, crankcase disassembly, top-end rebuilding, valve inspection, cam timing, and engine reinstallation.

• Automatic transmission: V-belt replacement, centrifugal clutch and driven-pulley inspection, drive-face assembly, and reduction-gear service.

• Fuel and lubrication: Keihin PTE carburetor disassembly, cleaning, float adjustment, and reassembly, plus fuel-valve inspection and oil-pump service.

• Electrical diagnosis: Timing-sensor, CDI/ignition-coil, stator, choke-circuit, and regulator/rectifier tests, supported by wiring color codes and a color wiring diagram.

• Brakes and final drive: Front drum-brake adjustment, shoe and rear-pad replacement, hydraulic brake bleeding, chain and sprocket service, and axle-bearing replacement.

• Suspension and steering: Shock absorber, A-arm, swing arm, steering-knuckle, steering-post, and tie-rod removal, inspection, and installation.

This manual is suited to technicians and experienced DIY owners familiar with engine measurement, electrical testing, and safely supporting an ATV during service.

Engine Inspection and Assembly Details

The engine chapter pairs component inspection procedures with wear limits for the piston, cylinder, valve train, crankshaft, clutch, and oil pump. These references support decisions about which components can be reused during a rebuild.

Camshaft timing illustrations and piston-ring positioning views supplement the assembly instructions. The manual warns that pressure from the valve adjusters during rocker-arm installation can damage a valve, and that a trapped cam chain can damage the sprocket, chain, or crankcase.

Cooling coverage concerns the engine’s cooling fan and shrouds, including their removal and installation and checks associated with overheating. The lubrication material covers the oil screen/filter and pump-clearance measurements.

Carburetor and Electrical Fault Finding

The Carburetor Schematic identifies the Keihin PTE components used in the disassembly and reassembly procedures. Fuel-system troubleshooting distinguishes starting problems, poor low-speed operation, high-speed faults, and overflow conditions.

Electrical tests specify connector or wire identification, meter settings, and expected readings. The procedures reference the Fluke Model 73 Multimeter (P/N 0644-191) and Peak Voltage Reading Adapter (P/N 0644-307), with a warning that other testers may produce different readings.

The color Wiring Diagram 0740-531 covers harness P/N 3303-419 for both models. Together with the symptom-based troubleshooting tables, it supports tracing starting, ignition, and charging faults to the relevant circuits.

Ignition timing is checked rather than adjusted. Starter-motor coverage consists of removal and replacement; the dedicated section identifies the motor as non-serviceable.

Chassis Service and Workshop References

The rear-axle section distinguishes axle and bearing work from jobs that require removing the axle housing. This helps establish the necessary disassembly before starting the repair.

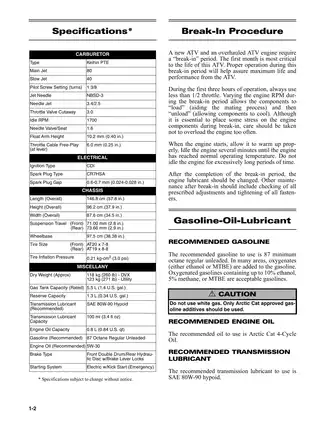

The Periodic Maintenance Chart organizes recurring service tasks, while Torque Specifications and the conversion chart provide assembly references across the engine, drivetrain, steering, and suspension.

Service precautions address secure ATV support, brake checks after brake-related work, and stored spring tension in the centrifugal clutch. Electrical precautions distinguish battery isolation for resistance tests from powered voltage checks.

Examples of Compression and Charging Test Data

Engine compression: The specified range is 195–230 psi with the engine warm, the battery fully charged, and the throttle fully open during electric-starter cranking.

Regulator/rectifier output: The manual specifies 12.1–15.2 VDC at a constant 3000 RPM, measured between the black and white wires with the regulator/rectifier connected. Its general electrical-testing guidance specifies room temperature, approximately 68°F.
