1985–1988 Yamaha YFM200 Moto-4 Service Manual (P/N LIT-11616-YF-20, LIT-11616-05-40)

• Covers the 1985-1988 Yamaha YFM200 Moto-4 models identified by Yamaha as YFM200N, YFM200DXS, YFM200DXT, and YFM200U, with the DXS and DXT factory supplements included.
• 259-page PDF containing three Yamaha publications - base YFM200N/DXS/DXT/U Service Manual P/N LIT-11616-YF-20: 191 pages; YFM200DXS Supplementary Service Manual P/N LIT-11616-05-40: 51 pages; YFM200DXT Supplementary Service Manual P/N LIT-11616-05-84: 17 pages.
• Documents engine removal and internal overhaul of the cylinder head, valves, camshaft and cam chain, piston and cylinder, crankshaft and connecting rod, oil pump, balancer, transmission, reverse mechanism, primary and secondary clutches, starter drive, and recoil starter.
• Details middle-gear, final-drive, and driveshaft repair, including disassembly, inspection, bearing and seal service, gear positioning, shim selection, backlash measurement, troubleshooting, and final assembly checks.
• Chassis coverage includes front and rear wheel service, drum-brake inspection and adjustment, steering shaft work, steering-knuckle and tie-rod service, lower-arm and shock-absorber inspection, swingarm service, and cable maintenance.
• Electrical sections provide the YFM200N wiring diagram, YFM200DXT circuit and wiring diagrams, starter-system fault tracing, starter relay and cut-off relay tests, charging and ignition checks, lighting-system diagnosis, switch inspection, and battery service.
• Factory reference material includes component-specific torque tables, wear limits, clearances, fluid-capacity and lubrication data, electrical test specifications, cable-routing views, exploded assemblies, and special-tool identification for engine, gearcase, suspension, and electrical repair.

Manual Set and Model-Specific Coverage

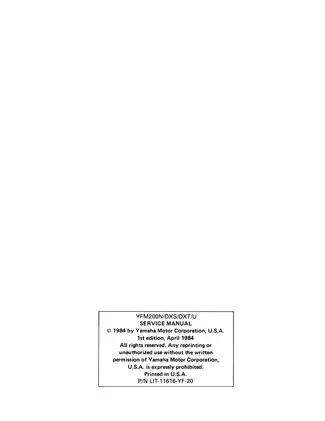

The set combines the April 1984 first edition of the base manual with the September 1985 DXS and April 1986 DXT first-edition supplements. The base book carries the common procedures for the 196.3 cc, air-cooled four-stroke YFM200 engine and shaft-drive chassis. The supplements document model-specific changes and direct the technician back to the base procedures for unchanged work, so they are not stand-alone manuals. With all three publications in one file, the main repair sequence and later model updates can be followed together.

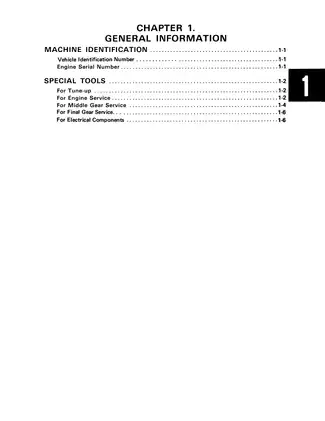

Machine-identification pages provide starting references for the covered builds: YFM200N VIN JY452H00*FC000101 and engine 52H-000101; YFM200DXS VIN JY41NU00*GC000101 and engine 1NU-000101; and YFM200DXT VIN JY42FH00*HC000101 and engine 2FH-000101. These are starting identifiers, not ending serial ranges.

The DXS supplement adds speed-limiter and rear-brake adjustments, front and rear shock settings, and cam-chain tensioner inspection and installation. It also covers steering-knuckle and tie-rod procedures, lower-arm free-play checks, rear shock and swingarm service, updated specifications, and model-specific cable routing. The DXT supplement concentrates on the revised electric-starting circuit, troubleshooting charts, starting circuit cut-off system and relay, rear brake switch, electrical specifications, and cable routing.

Engine, Transmission, and Shaft-Drive Repair

The engine chapter moves from removal through disassembly, inspection, repair, assembly, and adjustment. Inspection and repair coverage includes valve guides and seats, cam-chain and timing components, piston rings and cylinder, crankshaft and connecting rod, oil pump, primary and secondary clutches, transmission and reverse-shift mechanism, balancer assembly, bearings, and oil seals. Starter-drive and recoil-starter procedures are included as well. The carburetor section provides a sectional view along with removal, disassembly, inspection, assembly, and final adjustment coverage.

The shaft-drive material goes well beyond routine oil service. It includes middle-gear and final-gear exploded views, dedicated lash-measurement methods, gear-positioning calculations, bearing-retainer work, final-drive troubleshooting, and driveshaft removal, inspection, and installation. Yamaha treats gearcase shimming as required setup whenever the final-gear case, ring-gear bearing housing, or related bearings are replaced. The manual also warns that final-drive bearings and races removed during shaft service are not reusable, an important repair-planning point before teardown.

Electrical Diagrams, Tools, and Reference Data

Six especially useful visual references are the starter-circuit operation diagram, YFM200N wiring diagram, YFM200DXT circuit diagram, YFM200DXT wiring diagram, Middle Gear exploded view, and Final Gear exploded view. Separate lubrication diagrams and cable-routing drawings support reassembly. Electrical procedures cover the starter motor and relays, flywheel magneto, rectifier/regulator, charging coils, ignition spark and coil tests, lighting voltage checks, switches, and battery inspection.

Representative factory tools are identified by name and part number, including the crankshaft separator YU-01135, middle-gear lash tool YM-1392, final-gear lash tool YM-01231, and electro tester set YU-33260. These references help a shop determine whether a repair can be completed with available tooling before the machine is opened.

The PDF contains the YFM200N and YFM200DXT wiring diagrams. The DXS supplement's contents page lists a YFM200DXS wiring diagram, but the corresponding diagram is not included in this PDF; the DXS cable-routing pages are present.

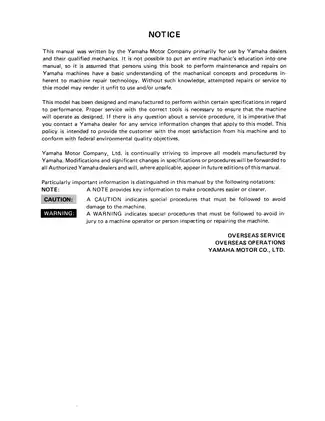

This factory service publication assumes basic mechanical knowledge. Review Yamaha's cautions and component-handling notes before working on the brake system, spring-loaded suspension, rotating drivetrain, or electrical circuits; safe support, electrical isolation, and correct tooling remain part of the repair.
