2000 Mercury MerCruiser 496 Mag HO / 496 Mag / 8.1S Horizon / 8.1S HO Engine Service Manual #30 (P/N 90-863161)

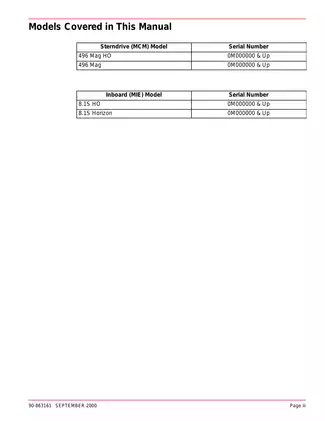

Mercury Marine Service Manual #30, P/N 90-863161, covers the 2000 MerCruiser 496 Mag HO and 496 Mag sterndrive engines, plus 8.1S Horizon and 8.1S HO inboard engines, from serial number 0M000000 & Up. This is the September 2000 edition.

Searchable Text and PDF Diagram Detail

Search and circuit labels: Body text is searchable, but some lettering within diagrams is graphical and cannot be searched. There are no embedded PDF bookmarks. Small wire-color labels in the Battery Isolator Diagram require zooming for comfortable reading.

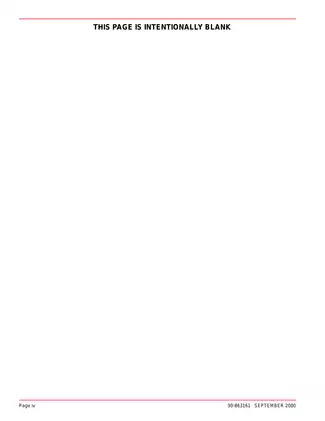

Supplied as one printable, English-language 355-page PDF, including the original cover and 27 intentionally blank pages.

Engine Overhaul, Fuel Service and Inboard Drive Work

The topics below are a selection of the manual’s contents, rather than a complete contents list. Other covered subjects include vacuum-gauge troubleshooting and auxiliary hot-water heater installation.

• Engine overhaul: Cylinder-head and valve conditioning, main and connecting-rod bearing inspection, piston replacement, crankshaft service, and timing-chain work.

• Engine installation: Separate MCM and MIE removal and installation procedures, engine alignment, throttle-cable adjustment, and configuration-specific connections.

• Fuel injection: Cool Fuel system disassembly and reassembly, boost-pump replacement, throttle-body service, and IAC, MAP sensor, and ECM procedures.

• Electrical service: Delco PG260 starter replacement, spark-plug and lead inspection, Delco alternator tests, and charging-circuit diagrams.

• Closed cooling: Pressure testing, heat-exchanger inspection and cleaning, thermostat testing, crossover replacement, and coolant filling procedures.

• Inboard transmissions: Velvet Drive 5000 and ZF/Hurth removal and installation, shift-cable adjustment, fluid service, pressure checks, and functional tests.

• Power steering: Pump and pulley replacement, hydraulic-hose service, fluid-level checks, and system filling and air bleeding.

Written for Mercury dealers’ mechanics and company service personnel already trained in servicing these products and using the recommended hand tools and special tools.

Engine Repair and Alignment

Internal repair coverage includes step-by-step procedures for cylinder-head disassembly, valve-seat repair, bearing-clearance checks with gauging plastic, and camshaft-bearing replacement. The Valve Assembly Exploded View identifies the spring, retainer, rotator, and seal arrangement.

Separate installation sections distinguish MCM engine-to-gimbal alignment from MIE engine-to-propeller-shaft alignment. The MCM section specifies Quicksilver Alignment Tool 91-805475A1 and warns that forcing the tool can damage the gimbal bearing or engine coupler.

Cool Fuel and Charging-System Diagnosis

The Cool Fuel System Exploded View and Fuel System Flow Diagrams show the pump, cooler, regulator, fuel return, and seawater connections. Component procedures cover IAC valve, MAP sensor, and ECM replacement; the sealed ECM is replaced as a unit.

On-engine alternator tests distinguish charging-output problems from wiring resistance and excitation- or sensing-circuit faults. These tests and the Battery Isolator Diagram support circuit tracing before a charging problem is attributed to the alternator itself.

Cooling, Exhaust and Steering Scope

Coolant and Water Flow Diagrams support hose and plumbing identification. Cooling procedures address internal heat-exchanger leakage, thermostat operation, system pressure loss, and air purging; maintenance sections also cover flushing, winter layup, draining, and recommissioning.

Exhaust procedures cover manifold, elbow, and riser removal, leak testing, sealing-surface inspection, and installation. The manual warns that retained water can enter the combustion chambers during elbow removal and cause severe engine damage; its troubleshooting tables also identify incorrect manifold-to-elbow gasket installation as a water-entry cause.

Missing exhaust section: Section 7B, Collectors, including Silent Choice exhaust service, appears in the contents but is absent from this PDF.

Power-steering coverage includes pulley tools and hose routing. The steering pump is designated non-repairable and is replaced rather than internally rebuilt.

Inboard Transmission Service Limits

The drive sections distinguish down-angle and V-drive installations, with shift-control arrangements for different propeller rotations. Velvet Drive pressure tests and ZF/Hurth functional tests include the related operating specifications.

Internal transmission repair: Velvet Drive repair literature is separate; this manual directs internal transmission repair to the transmission manufacturer’s service resources.

Selected Mounting, Bearing and Battery Specifications

Rear engine mount torque is specified at 38 lb-ft (51 Nm) in the MCM model installation section.

The engine tables list production main-bearing clearances of 0.0011–0.0024 in. for bearings Nos. 1–4 and 0.0025–0.0038 in. for No. 5. These are production clearances, not service wear limits.

Minimum battery requirements for the covered MCM and MIE engines are 650 CCA / 825 MCA / 150 Ah.

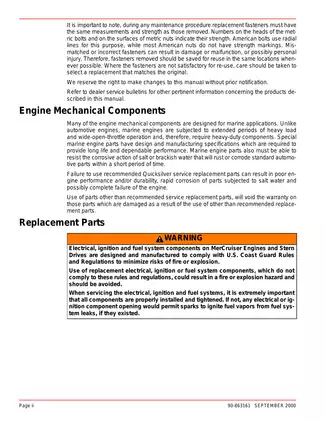

Note: Working on marine fuel and high-amperage electrical systems carries inherent fire and explosion risks. All service data shown here is for reference only — qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work.
