Mercury Mariner 45 Jet, 50, 55 & 60 HP Outboard Service Manual, 1996–2000 (P/N 90-817643R1)

565 Pages • ZIP Download: 24 Printable PDFs • 13.08 MB

4.3starstarstarstarstar_border(3)
$13.70 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

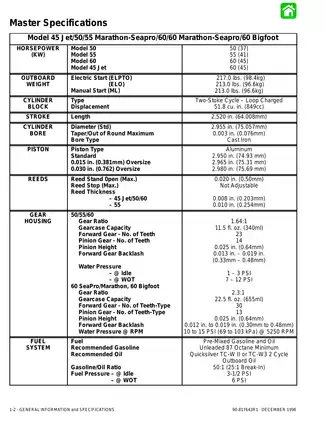

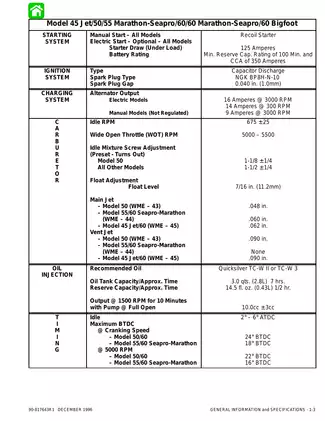

Mercury Models Covered & Key Technical Specifications

Models: Mariner 45 Jet, 50, 55, 60

Sub-models / Variants: Marathon, Sea Pro, Bigfoot; electric start (ELPTO, ELO); manual start (ML)

Model Years: 1996–2000 (1996, 1997, 1998, 1999, 2000)

Serial numbers: United States: 0D000750 and Above; Belgium: 09671687 and Above

Ignition test-chart serial breaks (U.S.): 55/60 Marathon/SeaPro: 0G277479 and Below / 0G277480 and Above; 45 Jet, 50/60 Electric: 0G277605 and Below / 0G277606 and Above

Original spark plug application: 50/55/60, Serial No. D000750 to D181999: NGK BU8H originally fitted; NGK BP8H-N-10 may also be used


  • Engine type: 3-cylinder, 2-cycle loop charged

  • Displacement: 51.8 cu. in. (849 cc)

  • Horsepower: 50 HP (Model 50), 55 HP (Model 55), 60 HP (Model 60 and Model 45 Jet)

  • Idle RPM: 650–750 RPM

  • Fuel type: Unleaded 87 octane minimum gasoline; 50:1 gasoline/oil mixture for premix configurations; fixed- or variable-ratio oil injection on equipped models

  • Spark plug gap: 0.040 in. (1.0 mm) for NGK BP8H-N-10

  • Gear housing variants: Standard 50/55/60: 1.64:1; 60 Big Foot/SeaPro/Marathon: 2.3:1, 4-1/4-inch torpedo; 45 Jet: jet drive

  • Water pressure (at idle): 1–3 PSI for the standard 50/55/60 gear housing

  • Water pressure (at WOT): 7–12 PSI for the standard 50/55/60 gear housing

  • Water pressure (60 Big Foot/SeaPro/Marathon): 10–15 PSI at 5250 RPM

Mercury Manual Features & Selected Content Preview

Mercury Marine service manual P/N 90-817643R1, December 1996 edition, covers Mercury and Mariner 45 Jet, 50, 55, and 60 outboards, including 55 Marathon, 55 SeaPro, 60 Marathon, 60 SeaPro, and 60 Big Foot configurations. Coverage starts at U.S. serial 0D000750 and Belgian serial 09671687. Match the engine’s serial number and installed hardware to the applicable procedures.

Searchable PDFs and Diagram Detail

Text search, bookmarks, and wiring detail: All 24 PDFs contain searchable text and embedded bookmarks for navigation within the individual files. Small wire-color labels and connector numbers in dense wiring diagrams are best read with zoom.

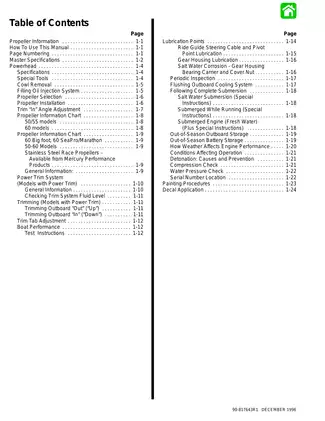

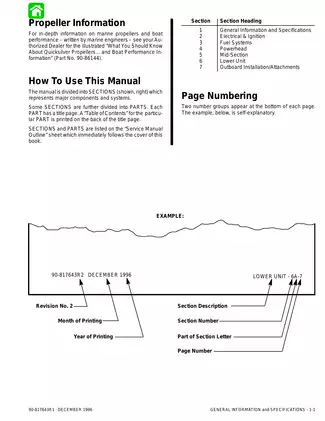

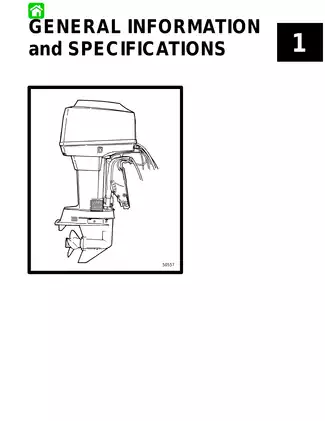

The ZIP contains 565 pages across 24 printable PDF files. That total includes the three-page cover, notices, and manual-outline file, plus the section and part title pages.


Powerhead, Fuel, Trim, and Drive Repair

The following topics are a selection from the manual, rather than a complete contents list. Further material includes storage, submersion recovery, painting, and decal application.

  • Powerhead repair: Step-by-step removal, disassembly, honing, piston and ring service, crankshaft and connecting-rod inspection, reassembly, torque sequencing, installation, and test-run procedures.

  • Fuel and oil injection: WME carburetor troubleshooting and rebuilding, fuel-pump service, enrichener testing, fixed- and variable-ratio oil injection, synchronization, bleeding, and warning-system diagnosis.

  • Ignition and starting: ADI ignition diagnosis, DVA and resistance tests, charging-system checks, starter-circuit troubleshooting, starter-motor repair, timing, and throttle-linkage adjustment.

  • Trim and tilt: Separate Power Trim Designs I–IV and Manual Tilt Designs I–IV sections, with hydraulic flow diagrams, leak-down diagnosis, electrical tests, and design-specific service procedures.

  • Lower-unit repair: Separate standard gearcase, 60 Big Foot/SeaPro/Marathon gearcase, and 45 Jet sections covering water pumps, bearings, seals, shaft setup, reassembly, and installation.

  • Installation and controls: Transom mounting, Ride-Guide and dual steering, remote controls, throttle/shift cables, electrical connections, tiller-handle and Co-Pilot service, and rewind-starter repair.

Written for dealer mechanics and service personnel, this manual assumes familiarity with outboard servicing and the use of standard shop tools and specified Mercury Marine service tools.

Powerhead Inspection and Routine Service

Exploded assemblies identify the cylinder block and crankcase, induction manifold and reed blocks, throttle linkage, thermostat, and cooling passages. Inspection data covers bore, piston, ring, crankshaft, reed, and wear-limit specifications, supported by component-specific torque tables and lubricant and sealant references.

General service material covers propeller selection and installation, trim-fluid checks, lubrication points, cooling-system flushing, compression and water-pressure checks, and corrosion care.

ADI Ignition, Charging, and Starter Diagnosis

The alternator-driven, distributorless capacitor-discharge ignition has separate black- and red-stator procedures. U.S. test charts distinguish earlier and later 55/60 Marathon/SeaPro and 45 Jet/50/60 electric-start applications. Earlier units require a stator part-number check before the appropriate DVA or resistance chart is selected.

The starting-system chapter includes a Starting Circuit Troubleshooting Flow Chart, solenoid tests, armature checks, brush replacement, and starter-motor reassembly. Timing tables distinguish the 55 HP calibration from the 50/60 settings.

WME Carburetors and Oil-Injection Variants

WME-43, WME-44, and WME-45 carburetor families are identified by application. Main-jet and bowl-vent data, high-altitude rejetting charts, float and idle-mixture adjustments, and troubleshooting charts support carburetor cleaning and rebuilding. Fuel-pump layouts distinguish standard 50/60 units from 55/60 SeaPro/Marathon applications.

Oil-injection coverage separates fixed- and variable-ratio pumps. It includes pump-drive components, carburetor-to-oil-pump synchronization, filling and bleeding, warning-module diagnosis, reservoir service, and drive-gear installation.

Matching Trim and Tilt Hardware

Mid-section material separates 55-model transom-bracket hardware from 50/60 assemblies. Design-specific component views and hydraulic theory help match the installed trim or tilt unit to its repair chapter before disassembly. The general-information section specifically excludes Power Trim Design I from 50/60 applications.

Depending on design, service covers trim or shock rods, motors, pumps, manifolds, valves, memory pistons, seals, relays, and final bleeding or purging. Repair limits differ: the Design I trim oil pump, Design IV trim motor, and manual-tilt accumulators are replacement assemblies rather than internally rebuildable units.

Standard Gearcase, Big Foot, and Jet Drive

The standard and larger Big Foot/SeaPro/Marathon gearcases have separate teardown and setup procedures. These cover driveshafts, propeller shafts, pinions and gears, shift mechanisms, bearings and races, seals, bearing carriers, and water pumps. Pinion location or depth, forward-gear backlash, pressure testing, lubricant filling, and shift verification are documented.

The 45 Jet section adds mounting-height selection, cavitation checks, reverse-gate and shift-cable setup, impeller-clearance adjustment, liner replacement, bearing-carrier service, steering-pull adjustment, and jet-drive installation. Jet 45 tiller-adaptor instructions accompany the steering and control material; rewind-starter service includes spring-tension and interlock-cable adjustment.

Diagrams, Workshop Tools, and Service Cautions

Section 2D contains 11 wiring diagrams and a key/choke-switch continuity test; the charging chapter adds four charging-system diagrams. Examples include Model 45 Jet Electric Start, Model 50/60 Electric Start rectifier and regulator diagrams, Model 55 Manual Start, RED-stator manual- and electric-start diagrams, and COMMANDER 2000 remote-control circuits.

Power-trim hydraulic flow diagrams, oil-injection flow layouts, troubleshooting flowcharts, exploded assemblies, and gearcase setup views support the mechanical work.

Tool references include Multi-Meter/DVA Tester 91-99750, Direct Voltage Adapter 91-89045, Flywheel Puller 91-73687A1, Lifting Eye 91-90455, Pinion Gear Location Tool 91-817008A2, and Bearing Preload Tool 91-14311A2. Full-size starter brush-retainer layouts and dimensioned manual-tilt retaining-tool drawings provide information for making the specified workshop fixtures.

An ungrounded ADI switch box can be damaged during testing, while trapped air in oil-injection hoses can cause engine damage. The gearcase chapters also warn that excess lubricant on top of the driveshaft can prevent full engagement and damage the powerhead or gear housing when fasteners are tightened.

High-voltage ignition work, battery isolation, propeller-area service, lifting, and suspended-outboard precautions are addressed throughout the publication.

Gearcase Leak-Test and Jet-Clearance Examples

For the standard gear housing, the pressure-test specification is 10–12 psi held for five minutes, providing a reference for assessing seal integrity.

The 45 Jet section specifies approximately 0.03 in. (0.8 mm) clearance between the impeller edge and liner. Its adjustment material explains how shim position relates to clearance as the impeller and liner wear.
