Arctic Cat 650 V-TWIN ATV Factory Service Manual (P/N 2257-030)

• Dedicated model scope: Covers the 2004 Arctic Cat 650 Twin in a 209-page PDF, including its automatic dual-range transmission with reverse, selectable 2WD/4WD, front differential lock, and engine-brake control system. Factory service manual P/N 2257-030.
• Engine and transmission repair: Documents engine removal and installation, in-frame left-side, right-side, and top-end service, crankcase separation and reassembly, valve and cylinder-head work, piston and crankshaft inspection, cam-chain timing, connecting-rod bearing selection, and drive/driven clutch service.

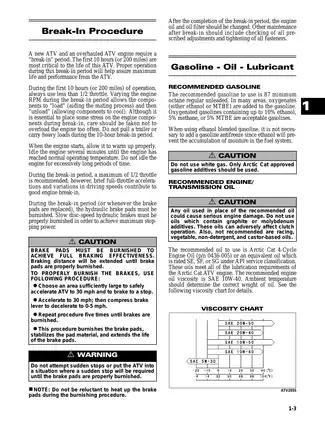

• Fuel, lubrication, and cooling systems: Details the twin Keihin CVKR-D32 carburetors, vacuum synchronization, float and pilot-circuit service, electric fuel-pump testing, oil-pump pressure diagnosis, pressure-relief valve inspection, radiator and thermostat work, fan service, and water-pump/alternator-cover repair.
• Electrical diagnosis: Provides component tests for the power distribution module, ignition coils, magneto, CDI, regulator/rectifier, starter and relays, drive-selector actuator, differential-lock circuit, electronic speedometer, tilt and speed sensors, and the engine-brake actuator/controller, plus belt-warning reset procedures.
• Drive, brake, suspension, and steering work: Addresses front differential and rear gear-case repair, ring-and-pinion shimming, backlash and tooth-contact checks, CV axle disassembly and boot service, hubs, hydraulic calipers and brake bleeding, shock absorbers, A-arms, steering knuckles, tie rods, and toe adjustment.

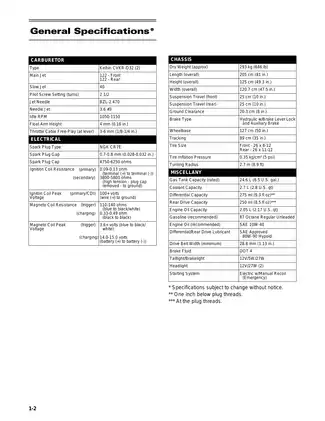

• Factory reference material: Includes component torque tables, capacities, wear limits, clearances, electrical test specifications, condition/remedy troubleshooting charts, and labeled graphics such as the full wiring diagram for harness P/N 0486-147, Carburetor Schematic, Oil Flow Chart, Rear Suspension/Rear Drive Assembly Schematics, Hydraulic Brake Assembly Schematic, and Front and Rear Suspension Assembly Schematics.

This is a dedicated 650 Twin publication rather than the general 2004 ATV manual. Its linked blue contents page opens all eleven sections, and the selectable text supports quick lookup throughout the PDF. The depth and assumed equipment make it suited to professional technicians and experienced owners who are already comfortable with internal engine repair, precision measurement, electrical testing, and securely supporting an ATV.

Engine and CVT Service Depth

The engine chapter separates work that can be performed in the frame from work that requires removing the engine/transmission assembly. Top-side and side-cover components can be serviced in place, while access to the center crankcase calls for engine removal. The internal repair coverage extends through valve-guide and seat work, piston and ring inspection, camshaft measurement, crankshaft and connecting-rod checks, output bevel-gear service, clutch inspection, crankcase assembly, and final installation.

Two manual-specific cautions are especially relevant to repair planning. The ratchet-type cam-chain tensioner must be removed and reset if its mounting bolts are loosened; simply retightening it can damage the tensioner and chain. With the V-belt cover removed, switching the ignition on can trigger the engine-brake learning control and damage the actuator.

System Diagnosis and Setup

The carburetor section goes beyond cleaning and jet inspection. It covers fuel contamination and intake-leak checks, float adjustment, pilot-circuit work, and vacuum synchronization of the two carburetors; synchronization is required if the pilot screws have been removed. The combined electric fuel pump and level sender is identified as a non-serviceable assembly, with pressure, voltage, float movement, and sender-resistance tests provided before replacement.

Electrical procedures specify meter connections, terminal locations, resistance, supply-voltage, signal-voltage, and peak-voltage checks rather than relying on symptom descriptions alone. Named service equipment includes the Valve Gap Adjuster (P/N 0444-092), Oil Pressure Gauge (P/N 0444-039), Fluke Model 73 Multimeter (P/N 0644-191) with Peak Voltage Reading Adapter (P/N 0644-307), Reset Connector (P/N 0486-161), Boot Clamp Pliers (P/N 0444-120), and Pinion Gear/Shaft Removal Tool (P/N 0444-127).

The drive-system chapter explains gear-case ID tags and ratio codes, shim selection, and ring-and-pinion setup. It also distinguishes the right-hand-thread front pinion nut from the left-hand-thread rear gear-case nut, a small difference that matters during disassembly.

Troubleshooting and Safe Shop Use

The final chapter supplies condition/remedy tables for starting and compression faults, engine and transmission noise, shifting problems, overheating and lubrication complaints, fuel-system faults, charging and starting circuits, steering and suspension behavior, and hydraulic brake performance.

Many procedures involve a raised ATV, compressed clutch springs, fuel, battery circuits, and hydraulic brakes. The manual calls for secure support, proper spring-compression and press equipment, battery isolation for resistance testing, and correct brake handling; those precautions remain essential during any repair.
