Kia Sorento 2003–2006 Repair & Owner’s Manual Collection

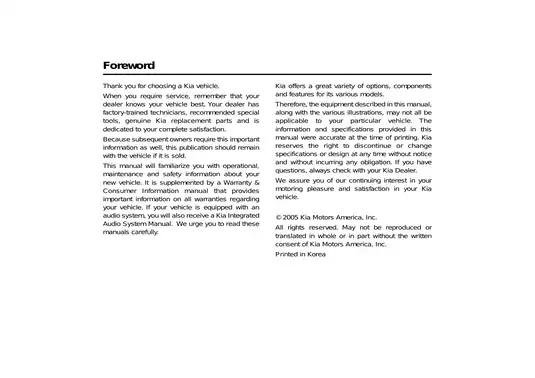

The owner’s manual provides operating, maintenance, and safety guidance. The repair compilation carries Mitchell Repair Information copyright notices, with many illustrations credited to Kia Motors America; it is not one continuous Kia-issued workshop manual.

Match repair procedures to each article’s model-year header and installed equipment. Detailed automatic-transmission diagnosis and internal overhaul cover the 30-40LEI. A5SR1 information is limited to the owner’s manual, while the model-specific manual-transmission service, removal, and overhaul files contain placeholder notices rather than procedures. General multi-make reference articles do not extend Sorento-specific repair coverage.

PDF Search, Bookmarks, and Diagram Detail

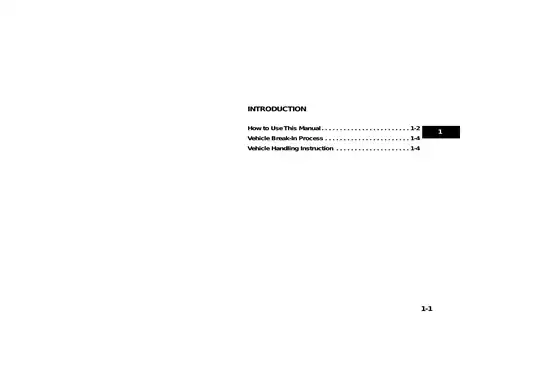

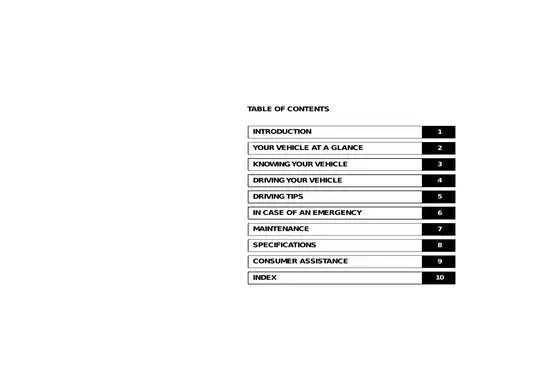

Search and navigation: The owner’s manual and many repair-article text sections are searchable, but numerous embedded tables and diagrams are not. The six supplemental PDFs have no searchable text layer. The owner’s manual has chapter bookmarks; most repair PDFs have none. Small wiring labels require enlargement, and the two supplemental firing-order sheets contain blurred details.

The ZIP contains 134 printable PDFs totaling 3,045 pages, including 39 one-page blank-article notices and the 11 supplemental reference pages listed above. Preliminary pages, blank pages, and repeated articles are included in these totals.

Engine, Drivetrain, and Electrical Repair Coverage

The following selected coverage highlights summarize the main workshop content. Further topics include headlamp aiming and sunroof resetting.

• Engine repair: Compression and valve-clearance checks, cylinder-head and camshaft service, timing-belt installation, lubrication-system repair, and cooling-system testing.

• Automatic transmission: 30-40LEI diagnosis, hydraulic testing, control-system checks, removal and installation, internal disassembly, inspection, and reassembly.

• 4WD and axles: EST and ATT/TOD diagnosis and overhaul, differential setup, limited-slip differential service, axle-shaft work, and propeller-shaft inspection.

• Brakes and ABS: Disc and parking-brake service, hydraulic bleeding, booster checks, ABS/EBD diagnosis, HECU testing, and wheel-speed sensor inspection.

• Steering and suspension: Power-steering diagnosis and rack overhaul, spring and shock replacement, control-arm and bushing work, and wheel alignment.

• Engine and electrical diagnosis: Code and no-code troubleshooting, ECM pin-voltage charts, sensor-range data, component locators, and system wiring diagrams.

• HVAC and restraints: Automatic and manual climate-control diagnosis, refrigerant service, compressor testing, SRS deactivation, fault diagnosis, and component replacement.

The repair material suits readers already comfortable with mechanical disassembly and electrical testing; diagnostic work assumes access to a scan tool and suitable workshop measuring equipment.

Cylinder Heads, Timing, and Engine Internals

Step-by-step procedures cover cylinder-head removal and installation, valve-guide and seat repair, camshaft and hydraulic lash-adjuster inspection, piston and connecting-rod work, and crankshaft and bearing inspection. Timing-system instructions include belt routing, sprocket alignment, and automatic-tensioner checks.

Intake, exhaust, engine-block, oil-pump, radiator, thermostat, water-pump, and cooling-fan work is supported by component-specific specifications. Referenced tools include valve-spring compressors 09222-28000 and 09222-28100, plus valve-guide tools 09221-29000 and 09222-22000.

Transmission, Transfer Cases, and Differential Setup

The automatic-transmission material combines ATF-condition checks and Hi-Scan self-diagnosis with line-pressure, stall, and time-lag tests. TCM input/output charts and sensor and solenoid tests support fault isolation before internal work.

Overhaul coverage extends to the oil pump, brake and clutch units, one-way clutches, planetary assemblies, output shaft, and shift-lock mechanism.

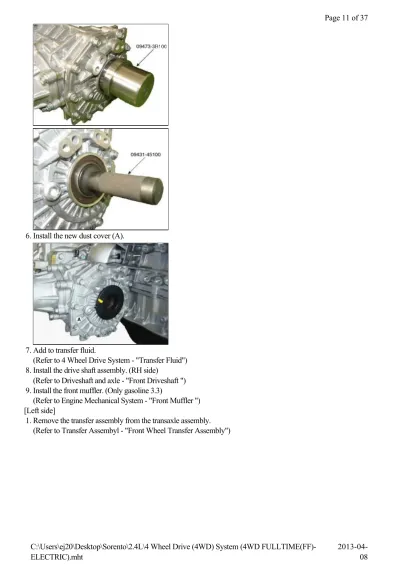

Transfer-case sections distinguish EST and ATT/TOD operating logic, power flow, DTC patterns, control circuits, chain drive, oil pump, shift components, and the ATT clutch pack. Differential articles explain backlash, pinion preload, shim selection, and tooth-contact patterns, including limited-slip units and the front 4WD actuator.

Assembly cautions address sprocket orientation and clutch-pack thrust-washer seating. Bending the transfer-case helical cam can damage the motor-shaft tang pin, while excessive air pressure can rupture the front axle actuator diaphragm.

Brake, Steering, and Suspension Work

Brake procedures distinguish service-disc work from the drum-in-hat parking brake and include master-cylinder checks and replacement. ABS/EBD material adds fail-safe descriptions, actuator operation, HECU terminal checks, and diagnostic charts.

Steering coverage includes fluid replacement and bleeding, pump-pressure testing, column and shaft work, and internal pump service. Suspension articles cover the double-wishbone front system and five-link rigid rear axle, including stabilizers, lateral rod, bushings, and alignment adjustments.

Fault Tracing and Wiring References

The basic-test, DTC, and no-code sections provide separate diagnostic routes for no-start, rough-idle, and intermittent complaints. ECM connector views and pin-voltage charts help distinguish harness faults from incorrect module input or output signals.

Representative drawings include the 3.5L Engine Performance Circuit, A/T Circuit, 4WD and AWD circuits, Anti-Lock Brakes Circuit, Supplemental Restraints Circuit, and Automatic and Manual A/C circuits. Connector, ground, fuse, relay, and component-location references support circuit tracing. Starter bench tests and generator output and voltage-drop tests are also included.

Climate Control, Body Equipment, and Owner Guidance

HVAC procedures cover refrigerant recovery, evacuation, charging, leak testing, and manifold-gauge diagnosis. Component work includes the compressor and magnetic clutch, condenser and fan, receiver/drier, switches, sensors, and controls.

Body-electrical articles address ETACS, cruise control, instruments, lighting, audio, rear-defogger repair, heated seats, power windows, locks, mirrors, sunroof, and wipers.

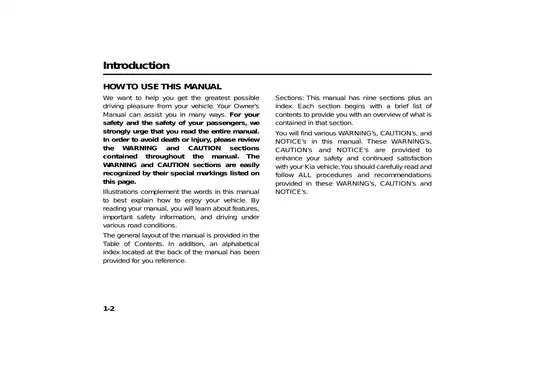

The owner’s manual adds normal and severe-service maintenance schedules, emergency procedures, drivetrain operation, keyless entry, child locks, and manual and power seat controls. Restraint guidance covers curtain airbags, front-passenger occupant classification, the passenger-airbag-off indicator, automatic-locking belts, tether anchors, and ISOFIX lower anchors.

SRS diagnosis references Harness Checker 0957A-38000. Measuring resistance directly across an airbag or pretensioner squib can cause accidental deployment.

SRS, brake, refrigerant, driveline, and engine work should begin only after the applicable disabling, pressure-relief, lifting, and verification procedures in the supplied documentation have been followed.

Examples from the Sensor Test Charts

The sensor-range charts address out-of-calibration sensors that can cause driveability problems without setting a trouble code.

For the 2003 Sorento, coolant-temperature sensor resistance is specified at 2.31–2.59 kΩ at 68°F (20°C), and intake-air temperature sensor resistance at 2.23–2.87 kΩ under the same temperature condition.

The oxygen-sensor heater reference gives 11.0–14.0 Ω between terminals 3 and 4 at 68°F (20°C).
