Suzuki Ignis RM413 2000–2004 Service & Wiring Manual Set (P/N 99500U86G00-01E)

The service procedures and separate circuit diagrams support diagnosing wiring faults and planning electrical-system repairs. Diagnostic tables can be used alongside harness locations and connector views to investigate circuit faults before replacing components.

Coverage limits: Mechanical repair procedures are for RM413/M13. M15A and Z13DT configurations have wiring coverage only. The referenced RM415 supplement, P/N 99501U86G10-01E, and Ignis RM413D/Wagon R+ RB413D Z13DT engine and M/T supplement, P/N 99501U86G30-01E, are not included.

Automatic-transmission coverage is circuitry only; this set does not contain an A/T overhaul manual.

PDF Search, Bookmarks, and Diagram Detail

Search and circuit navigation: Both PDFs support text search and have detailed bookmarks for sections and individual topics. The TOP and Manual List links point to files outside the ZIP. Small terminal numbers and wire-color labels in dense diagrams require zooming for comfortable reading.

The ZIP download contains two printable PDFs totaling 1,378 pages. That total includes five preliminary pages, 18 blank separator pages, and one imprint page in the service file. In the wiring file, it includes 18 preliminary pages and eight further blank/memo pages, plus one imprint page.

Engine Overhaul, Drivetrain Service, and Electrical Diagnosis

The following selected topics illustrate the coverage rather than reproduce the complete contents. Other sections address exhaust-system service and tire mounting, repair, and balancing.

• Engine repair: Step-by-step procedures for engine removal, timing-chain and tensioner service, cylinder-head disassembly, piston and connecting-rod inspection, crankshaft work, and oil-pump repair.

• Engine diagnosis: Scan-tool and DTC troubleshooting, ECM terminal checks, fuel-pressure and leakage tests, compression testing, vacuum checks, and oil-pressure inspection.

• Drivetrain service: Manual-transaxle overhaul, clutch repair, transfer-gear and bearing work, bevel-gear adjustment, rear-differential setup, and drive-shaft and propeller-shaft service.

• Steering, suspension, and brakes: Wheel alignment, rack-and-pinion repair, EPS diagnosis, strut and hub service, brake-system repair, and ABS diagnostic tables.

• Electrical and restraint systems: Starting and charging tests, immobilizer diagnosis and key registration, air-bag DTCs, and inspections required after a collision.

• Wiring and connector reference: Engine-control, A/T, EPS, air-bag, and ABS circuits, with harness layouts, connector face views, terminal identification, and power-distribution diagrams.

Suzuki states that the service manual is intended for authorized Suzuki dealers and qualified service mechanics with the proper tools and equipment; the procedures assume diagnostic equipment, lifting equipment, and workshop skills.

M13 Engine Diagnosis and Internal Repair

Engine material combines symptom charts, DTC tables, fail-safe information, and ECM circuit checks with internal inspection and overhaul procedures. Camshaft, tappet, and shim inspection accompanies the VVT and timing-chain material; bearing-selection information supports crankshaft and main-bearing work.

Factory references supply tightening tables, clearances and wear limits, pressure-test data, capacities, required service materials, and electrical values. Listed tools include the 09915-64512 compression gauge, 09915-77310 oil-pressure gauge, and 09924-17810 flywheel holder.

The engine chapter warns that supporting the engine by the oil pan can bend it against the strainer and damage the oil pickup.

Manual Transaxle, Transfer, and Rear Differential

The manual-transaxle section extends beyond removal to case disassembly, input and countershaft service, fifth gear, synchronizers, differential assembly, and bearing preload.

Transfer and rear-differential chapters cover reduction gears, intermediate and output shafts, hypoid-gear contact, shimming, backlash, and bearing setup. Separate rear-axle procedures distinguish 2WD and 4WD configurations.

Chassis, Body, HVAC, and Restraints

Steering and suspension procedures include rack unit repair, strut disassembly, control-arm bushing replacement, and hub and wheel-bearing press work. An off-center steering contact coil can break its cable when the steering wheel turns.

Body and HVAC sections cover A/C performance testing, refrigerant recovery, evacuation, charging, and leak checks, along with lighting, instruments, wipers, power windows, locks, and mirrors. Glass, doors, trim, body dimensions, panel clearances, and key coding are also covered.

Basic A/C methods outside the model-specific section are referred to A/C Basic Manual P/N 99520-02130, which is not included.

Follow the manual’s specified circuit-test conditions. Suzuki restricts SRS work to authorized dealer personnel and requires the prescribed battery isolation and reserve-energy wait before service.

Harness Layouts and System Circuits

The connector-layout section spans 40 pages; the system-circuit section spans 58 pages. Harness layouts cover the engine, injectors, main and instrument-panel wiring, doors, roof, floor, fuel pump, rear bumper, and rear door.

Named circuit examples include Engine & A/C Control System for M13A/M15A, Engine & A/C Control System for diesel, A/T Control System, Power Steering, Air-Bag Control System, and Anti-Lock Brake System.

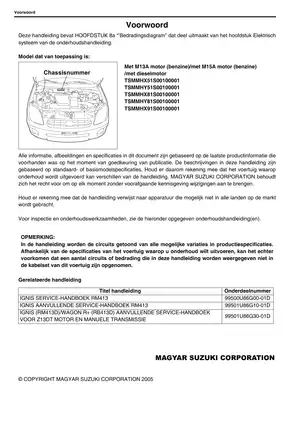

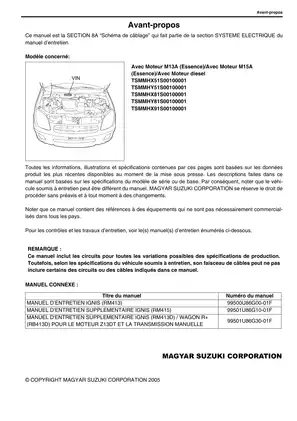

The wiring volume uses English, German, French, Dutch, Spanish, and Italian labeling. It presents possible production configurations, so equipment-dependent circuits may not be fitted to every vehicle.

Preview of Cold Valve-Clearance Data

For the RM413 M13/M13A engine, the cold valve-clearance table specifies intake clearance of 0.18–0.22 mm and exhaust clearance of 0.28–0.32 mm at a coolant temperature of 15–25°C (59–77°F). Hot-engine values are tabulated separately, alongside shim-replacement and selection guidance.
