2003 Sharp AR-M160 & AR-M205 Digital Copier Service Manual Set (P/N 00ZARM205/A1E)

Sharp's 2003 AR-M160 and AR-M205 service manual, Code 00ZARM205/A1E, is combined with a separate Circuit Diagram publication in this manual set.

• Mechanical repair: Disassembly and assembly of the fusing, optical, paper-feed, duplex-transport, power, developing, and process sections.

• Image adjustments: Developing-doctor and MG-roller adjustments, image-position calibration, scan magnification, copy density, and SPF white correction.

• Service diagnostics: Motor and solenoid tests, sensor-status displays, jam and trouble histories, and maintenance and drum-counter management.

• Installation and maintenance: Developer and toner cartridge installation, consumable replacement schedules, cleaning points, and regional supply references.

• Firmware updating: Flash-ROM program-writing procedures, download-status explanations, and maintenance-driver installation for the documented Windows environments.

• Electrical documentation: System block diagrams, Actual Wiring Diagram sheets, and board-level schematics with connector and pin references.

Suited to copier service technicians who are familiar with service simulations, electrical measurements, and factory alignment procedures.

Mechanical Repair and Image Quality

The disassembly chapters detail transfer-charger work, upper and lower heat rollers, thermistors and thermostats, and paper-feed clutches, solenoids, and rollers. Cross-sectional views and assembly drawings show how these mechanisms fit together.

LSU coverage consists of unit removal/replacement and subsequent image-position adjustments; internal LSU disassembly is expressly prohibited. Disturbing the unspecified CCD/lens screws can change the factory-set base-plate height, which cannot be readjusted in the field.

Image-quality procedures address scan distortion, main and sub-scanning magnification, off-center copying, and density. SPF white-correction pixel positioning is tied to lens-unit replacement, while the gray-chart checks identify test chart UKOG-0162FCZZ. The developing-doctor procedure warns that a thickness gauge can scratch the doctor and MG roller.

Configuration notes identify the optional AR-SP6 SPF for the AR-M160 and AR-RP6 RSPF for the AR-M205. Automatic-duplex service applies to the latter.

Fault Isolation and Maintenance

The trouble-code tables distinguish U2-04 EEPROM read/write errors from counter and adjustment checksum faults and U2-40 CRUM-chip communication trouble. Cause-and-check entries help technicians separate an EEPROM problem from a cartridge-chip communication fault before choosing which assembly to service.

Dedicated tests cover paper-feed solenoids, shifter operation, scanner movement, and LSU synchronization. Maintenance information includes drum and developer counter resets, replacement-cycle tables, and regional consumable references. MCU replacement notes address EEPROM handling and restoration of the original jumper settings.

Flash-ROM Updating and Electrical Reference

The update section documents Maintenance.exe, matching .dwl firmware files, and USB driver installation for Windows 2000/XP. It excludes the AR-EB7 USB 2.0 port from the update connection. This download supplies the documentation; maintenance software and firmware files are separate requirements.

The electrical section provides a system block diagram, Actual Wiring Diagram sheets covering MCU/IMC2 interconnections, and the flyback converter's operating waveform. The separate schematic publication adds Main PWB, low-voltage power-supply, and CCD PWB circuits with component and pin references.

The circuit-diagram cover also lists AR-200M and AR-160M (Japan only) and AR-5220 (outside Japan); that additional coverage is limited to the schematic publication.

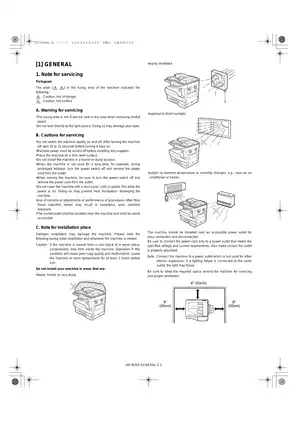

Working on high-voltage office equipment carries inherent risks. Follow the manual's mains-isolation, hot-fuser, and laser safety precautions before service.

A Preview of Developing and Grid-Bias Test Data

The process-section data provide a small sample of the electrical test specifications in this set. The developing-bias check is specified at DC -400 ±8 V.

Grid bias in HIGH mode is DC -525 ±10 V during warm-up. Both checks specify a digital multimeter with an internal resistance of at least 10 MΩ.

PDF Search, Diagram Detail and Contents

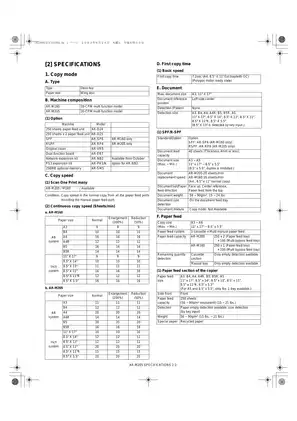

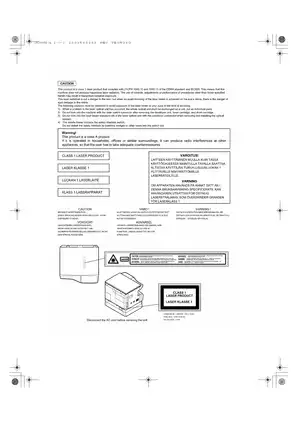

Search and drawing detail: Text search is available through the main service text and many wiring and schematic pages. The laser-safety page and the three power-supply schematic images are not text-searchable. There are no embedded PDF bookmarks; small schematic labels require zooming.

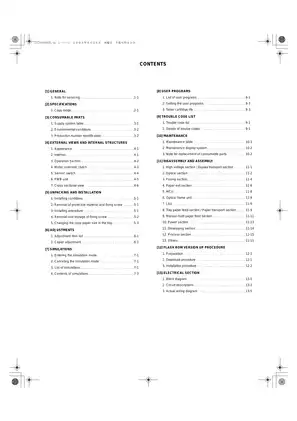

Supplied as one printable 112-page PDF containing two publications:

These counts include publication covers and contents, the laser-safety page, and the lead-free solder notes. Two blank pages and the publisher's closing page make up the remaining three pages and are already included in the total.
