Sharp AR-M207, AR-M165 & AR-M162 Digital Copier Service Manual – 2004 (P/N 00ZARM207/A1E)
140 Pages • 1 Printable PDF (English) • Download
Sharp Models Covered & Key Technical Specifications
Models: AR-M207, AR-M165, AR-M162
Sub-models / Variants: AR-M207 (20-sheet model, automatic duplex copying), AR-M165 and AR-M162 (16-sheet models, single-sided copying)
Model Year: 2004
-
Engine Speed (AR-M207): 20 ppm (A4/Letter)
-
Engine Speed (AR-M165/162): 16 ppm (A4/Letter)
-
First Copy Time: 7.2 seconds or less
-
Resolution (Reading): 600 x 300 dpi (600 x 600 dpi selectable)
-
Resolution (Writing): 600 x 600 dpi
-
Memory Capacity: 16MB (Single surface), 32MB (Duplex surface)
-
Warm-up Time: 45 seconds or less
-
Power Consumption: 1200W (Maximum), 550W (Operation), 10W (Standby)
-
Scanner Type: Flat bed color scanner (600 x 600 dpi)
Sharp Manual Features & Selected Content Preview
This 2004 Sharp service manual (P/N 00ZARM207/A1E) covers the AR-M207, AR-M165, and AR-M162 desktop digital copiers.
PDF Search and Wiring Detail

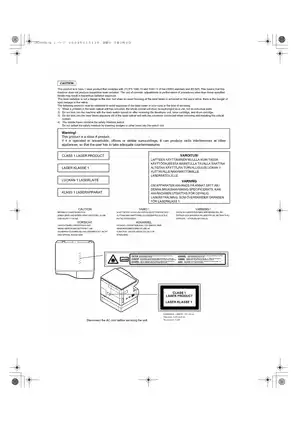

Text search and diagram labels: You can search the service text and many wiring labels. The laser-safety page and text inside some software screenshots are image-only. The PDF has no embedded bookmarks. Zoom in to read small connector numbers, pin labels, and wire-color codes.

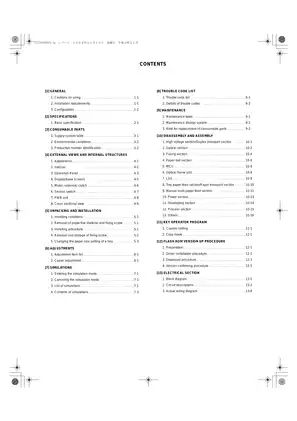

The download is one printable, 140-page English PDF. The total includes the cover, laser-safety page, contents page, lead-free solder note, copyright page, and seven blank pages.
Copier Repair, Calibration, and Diagnostics
The selected topics below illustrate the service coverage. The manual also covers initial installation and changing the tray paper-size setting.
-
Optical and imaging systems: Copy lamp and lens-unit replacement, mirror alignment, magnification correction, exposure calibration, and single-pass feeder (SPF) white correction.
-
Fusing repair: Step-by-step procedures for fusing-unit removal and heat-roller disassembly, plus heater-lamp, thermistor, and separation-pawl service.
-
Paper handling: Tray feed and manual multi-feed mechanisms, duplex transport, and paper-exit assembly procedures.
-
Developer and drum: Developing-doctor and magnetic (MG) roller adjustments, drum-unit and main-charger service, and cleaning-blade replacement.
-
Fault diagnosis: Trouble-code causes and remedies, service simulations, sensor and motor checks, jam memory, and self-print test patterns.
-
Electronics: MCU, high-voltage PWB, and power-board removal, Flash ROM updates, circuit descriptions, block diagrams, and wiring diagrams.
The manual is suited to copier service technicians familiar with electrical testing, service simulations, and optical alignment.
Feeder and Board Compatibility
The AR-SP6N single-pass feeder is optional on all three models. The AR-RP6N reversing single-pass feeder is listed for the AR-M207 and AR-M165. The feeder sections cover specifications, wiring, diagnostics, and image adjustments. A complete feeder teardown is outside the main-machine disassembly chapter’s scope.
The AR-EB9 dual function board is standard on the AR-M165. It is listed as standard on the AR-M207 and AR-M162, with an option designation for the United States and Canada.
Optical Alignment, Developer, and Fusing
The optical procedures cover the copy-lamp inverter PWB and optical frame. Sharp test charts UKOG-0089CSZZ and UKOG-0162FCZZ are referenced for paper centering and SPF white correction, respectively.
The CCD/lens assembly is factory-adjusted, and its settings cannot be restored in the field if the wrong screws are loosened. Laser scanning unit (LSU) service is by assembly replacement, followed by image-position adjustments. The developing-doctor procedure warns that the gauge can scratch the doctor blade and MG roller.
The fusing section pairs component illustrations with thermistor and heater-lamp service. The electrical and simulation sections explain heater-lamp control, temperature settings, and checks for fuser faults.
Paper-Feed Diagnosis and Maintenance
The paper-exit procedures distinguish simplex and duplex machines. Drive-unit, tray-feed, and manual-feed illustrations show how the rollers, clutches, and solenoids fit together. Maintenance and consumables tables cover the drum, developer, optics, fuser, and paper path.
Jam memory (SIM 22-03) distinguishes paper that failed to reach a sensor from paper still at that sensor. Used with the sensor-status checks and the paper-path cross section, it helps pinpoint recurring feed faults before disassembly.
Electrical Diagnosis and Flash ROM Updates
Trouble-code remedies cover LSU, shading, scanner, fuser, MCU/IMC communication, and CRUM faults. Separate simulations check mirror travel, the mirror home-position sensor, and toner-motor operation.
Seven wiring sheets show connectors, pins, harness routing, and wire-color codes. Examples include Sensor/Motor/LSU and Optical/SPF. The electrical section also includes the system block diagram, heater-lamp control circuit, and mirror-motor control circuit.
The Flash ROM chapter covers Windows XP and Windows 2000 driver installation, firmware transfer, and version confirmation for the MCU, IMC2, operation panel, and fax board. It requires Maintenance.exe and the appropriate .dwl files separately. The transfer uses the copier’s main-unit USB port. Key operator programs cover account control, printer-memory allocation, USB mode, and settings for the optional AR-NB3 network kit.

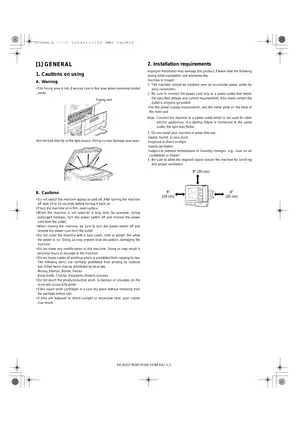

The manual requires power disconnection before disassembly and identifies precautions for high-voltage circuits, hot fuser components, and the laser assembly.
Sample Developer Clearances and Bias Specifications
The developing-doctor gap is specified at 1.5 mm (+0.10/−0.15 mm) at both end measurement points and 1.55 mm (+0.15/−0.20 mm) at the center. The developing-bias check specifies −400 V DC with a tolerance of ±8 V.
