2004–2009 Volvo Penta 8.1Gi/8.1GXi Marine Engine Workshop Manual (P/N 7743378)

This Volvo Penta engine workshop manual, publication 7743378, October 2004 edition, covers the 2004–2009 8.1Gi-B/C/D/E/F and 8.1GXi-A/B/C/D/E marine inboard and sterndrive engine families.

• Engine overhaul: Engine disassembly and reassembly, cylinder boring and honing, crankshaft and bearing inspection, camshaft service, and valve guide and seat reconditioning.

• Mechanical diagnosis: Compression and intake manifold vacuum testing, engine and valvetrain noise diagnosis, oil-pressure testing, and accessory drive-belt troubleshooting charts.

• Power steering: Pump and cylinder removal and installation, air purging, hydraulic circuit explanations, and tie bar adjustment for twin-engine installations.

• Throttle and shift controls: SAE cable installation and adjustment, shift-cable travel checks, and electrical and mechanical neutral-start switch tests.

• Cooling and storage: Raw-water and closed-cooling troubleshooting, supply-pump impeller replacement, thermostat service, off-season storage, and preparation for use after storage.

• Engine installation: Engine removal and mounting, coupler alignment, exhaust-pipe replacement, rear-mount service, and minimum engine-height checks.

This manual is suited to marine mechanics with engine-rebuilding experience, precision measuring tools, and equipment for lifting and supporting the engine.

Engine Diagnosis and Rebuild Differences

Compression testing and the Vacuum Gauge Readings chart connect test results with possible valve, ring, head-gasket, intake-leak, and ignition-timing faults. The Valve Train Diagnostic Table helps narrow down mechanical tapping before components are replaced.

Diagnostic scope: Detailed EFI diagnosis and electrical, ignition, and fuel-system troubleshooting are referred to separate service manuals. Those additional volumes are not included in this engine manual download.

Piston and connecting rod designs: The earlier 8.1Gi-B/C/D/E and 8.1GXi-A/B/C/D engines use pins pressed into the connecting rods, with the piston and rod serviced as an assembly. The 8.1Gi-F and 8.1GXi-E use full-floating wrist pins retained by clips, with separate disassembly and inspection coverage.

Inspection sections cover cylinder bores, crankshaft runout, bearing clearances, and hydraulic roller lifters. Lubrication diagrams accompany oil-pump service and minimum oil-pressure tests at specified engine speeds; fastener tables provide metric and U.S. torque values, including torque-angle requirements.

Illustrated tooling includes the J 33049 camshaft-bearing service tool and J 42849 crankshaft rear seal installer. The crankshaft procedures warn that damage to the reluctor ring can require replacement of the crankshaft.

Steering Diagnosis and Control-Cable Setup

The Power Steering System Diagnosis Chart distinguishes aerated fluid, hose restrictions, belt problems, and pump faults. Valve-and-cylinder diagrams show hydraulic flow with no steering input and during port and starboard turns.

Control-cable instructions distinguish right-hand SX/DP-S and left-hand SX shift arrangements, along with push-to-close and pull-to-close throttle connections. Neutral-start testing covers both switch continuity and actual starting behavior.

Cooling Variants and Winter Storage

The Sterndrive and Transom Bracket Cooling Schematic traces the drive water passages. The 8.1 Gi/GXi Engine Cooling Diagram and 8.1Gi/GXi (F) Engine Cooling Diagram show the engine-side routing, including the heat exchanger on closed-cooled versions.

Draining procedures distinguish 8.1Gi-B/8.1GXi-A engines from later builds and closed-cooling versions. Coolant guidance separates the earlier propylene-glycol factory fill from the ethylene-glycol fill used in 8.1Gi-FF and 8.1GXi-EF engines.

Exhaust manifold and elbow inspection includes pressure checking for leaks and examining water passages for corrosion or blockage. Raw-water pump cautions explain how reversed hose connections can damage the impeller and engine.

Engine Alignment and Mounting

Alignment tool 3851083-0 is specified for checking the gimbal bearing and engine coupler. Rear-mount washer placement and exhaust-elbow height receive separate treatment because they affect vibration and the risk of water entering the engine.

Engine lifting, rotating components, and gasoline vapor hazards require suitable shop equipment and established marine-service safety practices.

Examples of Crankshaft and Valve Dimensions

These dimensions are a small sample of the manual's component inspection and assembly data.

For 8.1Gi-F and 8.1GXi-E, the crankshaft table lists a main journal diameter of 2.7482–2.7489 in., alongside separate production and service limits for runout and bearing clearance.

Valve specifications for the covered engine groups include a 2.19 in. intake-valve diameter and a valve spring installed height of 1.808–1.838 in. The cylinder-head sections explain the associated inspection and assembly work.

PDF Navigation and Page Breakdown

Text search and diagram detail: Searchable text and embedded bookmarks cover the service sections; the Safety section has no dedicated bookmark. Small steering-diagram callouts are clear when enlarged. Fine linework in the engine-cooling illustrations is light at full-page viewing size and benefits from zooming.

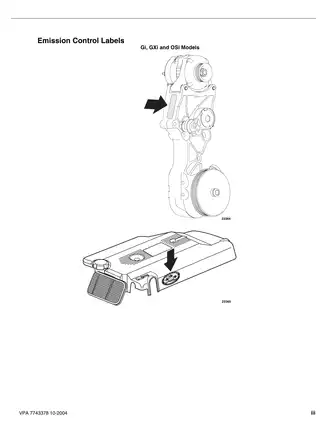

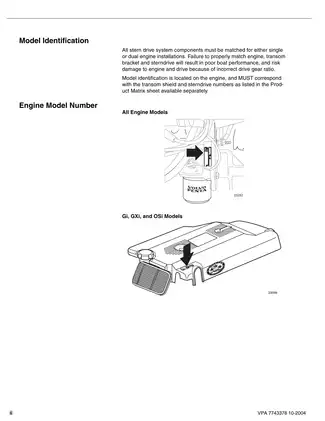

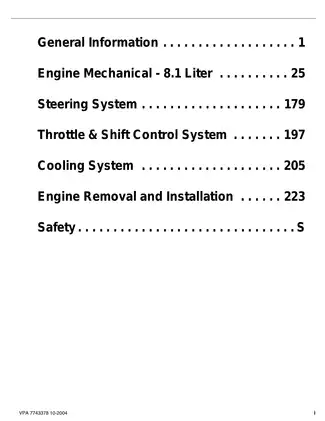

The download contains one printable, English-language PDF with 260 pages: 238 service-section pages, four introductory pages, 14 Safety-section pages, front and back covers, and two blank pages. Four notes pages are already included within the service-section count; all covers and blank pages are included in the total.
