Yamaha TZR50 / X-Power 2003 Service Manual (P/N 5WX-AE1)

This Yamaha/MBK factory service manual covers the 2003 TZR50 and X-Power, model code 5WX. P/N 5WX-AE1, first edition, December 2003.

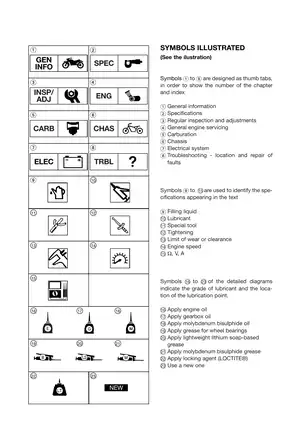

PDF Search, Bookmarks, and Diagram Detail

Text search and wiring labels: The main text is searchable, but labels within several wiring diagrams are not. Embedded bookmarks link to the index and all eight main chapters. Small connector labels and wire-color codes require zooming.

The ZIP download contains one printable English-language PDF with 251 pages, including the cover, five front-matter pages, eight chapter dividers, nine blank pages, and the final wiring-diagram sheet.

Engine Overhaul, Chassis Service, and Circuit Testing

The following selected coverage highlights summarize the main workshop areas. Other topics include headlight adjustment and battery and fuse inspection.

• Engine repair: Step-by-step procedures for engine removal, crankcase separation, crankshaft inspection, cylinder and piston checks, and engine reassembly.

• Clutch and transmission: Clutch dismantling and adjustment, primary-drive assembly, gearbox shaft inspection, and checks of selector forks and the shift drum.

• Fuel and lubrication: Carburetor cleaning and inspection, float-height checks, reed-valve service, and Autolube pump cable adjustment and bleeding.

• Cooling system: Water-pump dismantling and seal replacement, thermostat testing, radiator-cap pressure checks, and cooling-system leak testing.

• Brake service: Front caliper and master-cylinder dismantling, brake-pad replacement, disc inspection, and hydraulic brake bleeding.

• Suspension and running gear: Fork overhaul, steering-bearing replacement, wheel inspection, swingarm service, and drive-chain and sprocket checks.

• Electrical troubleshooting: Starting, charging, lighting, signaling, and temperature-warning circuits, with wiring diagrams, continuity checks, and fault-location charts.

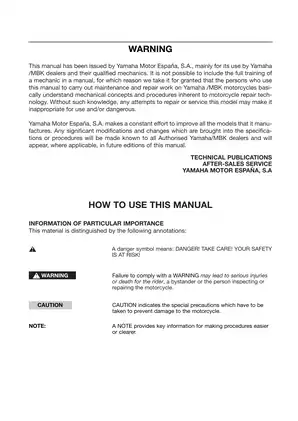

Written mainly for Yamaha/MBK dealers and qualified mechanics, this manual assumes an understanding of motorcycle maintenance and repair.

Internal Engine and Drivetrain Work

The engine chapter explains that the cylinder head, cylinder, and piston can be removed with the engine still in the frame. This helps distinguish top-end work from repairs requiring complete engine removal.

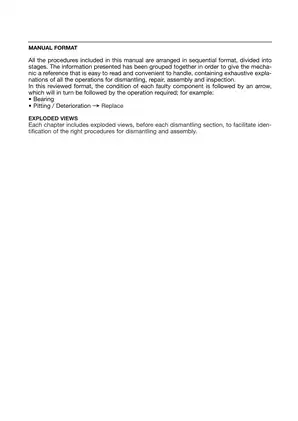

Exploded views of the crankshaft, shift and selector assemblies, and clutch identify component positions alongside inspection limits and assembly notes. The tool references include universal clutch holder 90890-04086.

Crankcase-separation cautions identify areas vulnerable to damage, including the mating surfaces, rather than treating the cases as parts that can simply be forced apart.

Carburetor and Autolube Checks

Carburetor inspection covers the float valve and seat, jets, plunger movement, and float condition. Reed-valve checks address sealing, reed damage, and stopper geometry.

Autolube diagnosis considers obstructed feed lines, trapped air, and pump delivery. Cable-routing diagrams and lubrication-point tables support maintenance and reassembly beyond the individual component procedures.

Water-Pump and Radiator Service

The water-pump exploded view identifies the shaft, drive gear, seal, and gasket arrangement. Assembly notes explain how mishandling can damage the seal lip or displace its spring.

Radiator testing identifies the required cooling-system tester and adapter. Thermostat inspection includes a heated-water test, while separate procedures cover radiator-cap pressure and system leakage.

Brake and Suspension Repair Depth

The front-brake chapter goes inside the caliper and master cylinder, with component inspection and reassembly information. Rear-brake maintenance includes pedal adjustment, fluid checks, pad inspection, and bleeding.

Rear-shock coverage includes removal, inspection, and replacement. The manual warns against opening the pressurized nitrogen cylinder. Wheel, steering, and suspension procedures require the motorcycle to be securely supported.

Wiring Diagrams and Fault Isolation

Dedicated circuit diagrams cover ignition and starting, electric starting, charging, lighting, and signaling. A separate cooling-system circuit addresses the temperature-warning light.

The no-crank troubleshooting charts distinguish starter-motor and relay problems from faults involving the neutral, clutch, and side-stand switches. This connects the circuit drawings to specific fault checks rather than leaving the reader with a wiring diagram alone.

Clutch Wear-Limit Examples

For clutch inspection, the friction-plate wear limit is 2.7 mm, and the clutch-plate warpage limit is 0.05 mm. The inspection section pairs these limits with measurement illustrations and replacement criteria.
