Yamaha YFA1W Breeze 125 ATV Service Manual Set, 1989–2004 (P/N LIT-11616-06-75)

265 Pages • ZIP Download: 1 Printable PDF (English)

4.5starstarstarstarstar_half(2)
$15.29 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Model & Model Code: YFA1W Breeze 125 (3FA)

Sub-models / Variants: YFA1M(C) supplementary coverage (3FAR, except California; 3FAP, California)

Model Years: 1989–2004 (1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004)

Serial Numbers: YFA1W starting VINs: JY43FAW0 KC000101 (USA/AUS), JY43FAN0 KC031101 (CDN); engine starting numbers: 3FA-031101 (CDN/CH/F/NL/S/DK), 3FA-000101 (USA/AUS); frame starting number: 3FA-031101 (CH/F/NL/S/DK)


  • Engine: Air-cooled 4-stroke, SOHC, forward-inclined single cylinder

  • Displacement: 124 cm³

  • Bore x Stroke: 49 x 66 mm

  • Compression Ratio: 9.0:1

  • Transmission Type: Dry, centrifugal automatic, single-speed V-belt

  • Fuel System: Mikuni VM18SH carburetor

  • Engine Oil Capacity (Periodic Oil Change): 1.25 L

  • Front Wheel Travel: 70 mm

  • Rear Wheel Travel: 80 mm

  • Engine Idle Speed: 1,650–1,750 rpm

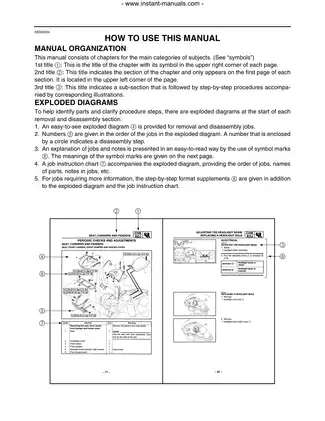

Yamaha Manual Features & Selected Content Preview

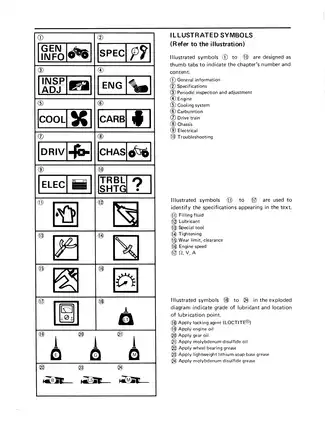

Publication Pages

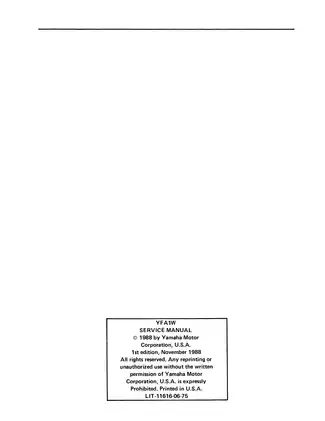

YFA1W / YFA1 ('89) Service Manual — model code 3FA; first edition, November 1988. P/N LIT-11616-06-75, also identified as 3FA-28197-10; compiled-cover identifier LIT-11616-YF-00. 242
YFA1M(C) Supplementary Service Manual — 3FAR except California; 3FAP for California. First edition, June 1999. P/N LIT-11616-13-04, also identified as 3FA-28197-11. 23

Yamaha specifies that the supplement must be used with the base manual for complete service information. It supplies updated identification, engine, chassis and electrical specifications, a revised maintenance schedule, and spark-arrester cleaning instructions.

This package contains the base manual and one later supplement, not separate annual supplements through 2004. Match the ATV by model designation, model code and applicable starting-number information as well as year.

PDF Search, Bookmarks and Diagram Detail

Search and circuit labels: PDF text search is not available. Embedded chapter and subsection bookmarks cover both publications, although some overview entries open contents pages and the external “Back to Index” link requires a file outside this download. Small wire-color codes and connector labels in the checked circuit diagrams are readable when enlarged.

The ZIP download contains one printable English PDF with 265 pages total. That total includes the base manual’s three cover pages and the supplement’s two cover pages; these are already included in the publication counts above.


Engine Overhaul, Automatic Drive and Electrical Diagnosis

The following selected repair topics outline the workshop coverage rather than reproduce the complete contents. Other documented work includes fender removal and installation and headlight-bulb replacement.

  • Engine overhaul: Step-by-step removal, disassembly, inspection, repair, reassembly and installation procedures covering the cylinder head, valve train, piston, crankshaft, balancer and crankcases.

  • Automatic drive and gearing: Centrifugal-clutch inspection, primary- and secondary-sheave service, V-belt checks, reverse gearing, transmission shafts and shifter repair.

  • Carburetor service: Removal, teardown, component inspection and reassembly, with separate float-height and fuel-level adjustment procedures and variant-specific calibration data.

  • Brakes, steering and chassis: Wheel and drum-brake service, front-suspension and steering repair, swingarm and rear-axle work, chain and sprocket inspection, and toe-in adjustment.

  • Electrical fault finding: YFA1(W) wiring diagram, system-specific circuit diagrams, switch-continuity checks and diagnostic charts for ignition, electric starting, charging, lighting and indicators.

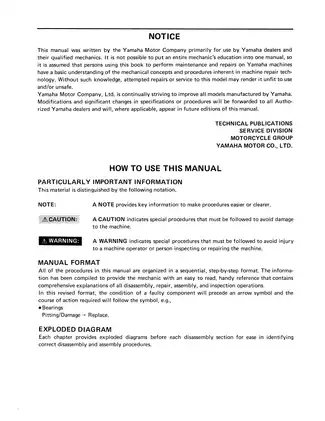

Written primarily for Yamaha dealers and qualified mechanics, these publications assume an understanding of mechanical repair concepts; experienced owners also need the tools and workshop equipment required for the work they undertake.

Internal Engine Repair and Service Access

Bench-work coverage extends to valve-seat refacing and lapping, valve-guide replacement, camshaft and rocker-arm inspection, piston rings and pins, and crankshaft and connecting-rod measurements. Bearings, oil seals, circlips, oil-pump clearances, the strainer and oil-delivery passages receive separate inspection guidance.

The engine section also covers the CDI magneto, electric starter drive and automatic timing-chain tensioner. The timing chain requires no routine adjustment; installation and timing procedures appear in the overhaul section.

Yamaha identifies cylinder-head, piston, clutch, sheave, oil-pump and CDI-magneto work that can be performed with the engine installed. These access notes help determine whether a planned repair requires complete engine removal.

Component-specific torque tables, lubrication requirements, clearances, runout limits, spring data and wear specifications support the inspection and assembly procedures.

Carburetor and Drivetrain Details

The carburetor Sectional View identifies the fuel, air and mixture passages alongside the component-service instructions. The supplement distinguishes the standard and California calibrations by identification mark, jets and needle configuration.

Drive inspection reaches clutch-shoe wear, clutch-housing condition, sheave movement, torque-cam grooves, guide pins, springs and seals. Symptom charts address failure to move, clutch disengagement problems, weak standing starts and poor acceleration.

Maintenance, Chassis and Electrical Tests

Periodic-service instructions cover valve clearance, ignition timing, compression testing, engine and transmission lubrication, engine and V-belt-compartment air filters, fuel lines, breathers, battery condition, fuses and headlight adjustment.

Chassis references provide wheel and brake wear limits, suspension data, steering geometry and fastener torques. The Lubrication Diagram and Cable Routing views show lubrication points and hose or lead paths; exploded assembly views accompany disassembly sections.

Electrical diagnosis goes beyond a general symptom list. The Electric Starting System charts distinguish motor, battery and starter-relay faults from switch, cut-off-relay and neutral-switch faults, helping trace a no-crank condition to the affected circuit.

The Ignition System diagrams and tests cover the plug cap, ignition coil, pickup coil and source coil. The supplement specifies a different ignition-coil model and revised electrical test data, so its specifications matter when applying the base manual’s diagnostic charts.

The troubleshooting chapter also addresses hard starting, poor idle and high-speed performance, difficult shifting, weak braking, overheating, unstable handling and lighting failures.

Service Tools and Repair Cautions

Listed tools include Fuel Level Gauge YM-01312-A / 90890-01312, Sheave Holder YU-01880 / 90890-01701, Spring Holder YS-28891 / 90890-01337, Rear Axle Nut Wrench YM-37132 / 90890-01419, and Dynamic Coil Tester YU-34487 / 90890-03144.

Yamaha warns that reversed battery connections can damage the electrical system, while hammering directly on the rear axle end can damage its threads and splines. Steam cleaning, high-pressure washing and unsuitable solvents can damage the drive-chain O-rings.

Support the ATV securely for wheel, suspension, swingarm and axle work, and follow the manual’s precautions for hot oil, battery electrolyte, exhaust components and running-engine tests.

Selected Valve-Clearance and Carburetor Specifications

For cold valve-clearance checks, the engine specifications list 0.08–0.12 mm at the intake valve and 0.10–0.14 mm at the exhaust valve. The manual pairs these ranges with inspection and adjustment procedures.

The YFA1M(C) supplement specifies a #82.5 main jet for the non-California carburetor identified as 3FA01, compared with #77.5 for the California carburetor identified as 3FAP10. These are separate calibrations within the supplement’s carburetor data.
