2005 Jeep Liberty KJ Service & Repair Manual (OEM)

• Covers 2005 Jeep Liberty (KJ) body-system diagnosis in a 606-page PDF: 12 table-of-contents pages plus 594 numbered manual pages. OEM document no. 81-370-05027, Version 1, May 2004.
• Organizes 338 indexed diagnostic and verification entries around factory “When Monitored/Set Condition” data, possible-cause lists, DRBIII-directed test charts, circuit checks, module decisions, and repair-verification procedures.

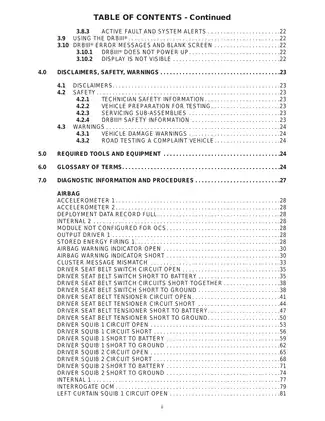

• Airbag coverage runs from pages 28–225 and includes the ORC/ACM, OCM and Occupant Classification System, staged driver and passenger airbags, dual squib circuits, seat-belt tensioners and switches, curtain airbags, clockspring, and front/side impact sensors.
• BCM and Junction Block diagnostics address highline and lowline JBM configurations, PCI Bus failures, individual module no-response faults, door-ajar inputs, power locks/RKE, tailgate and flip-up glass release, lighting, defogger, chime, VTSS, and wiper/washer controls.
• Includes instrument-cluster self-tests, EVIC/overhead-console diagnosis, base and premium audio tests, remote radio controls, hands-free telecommunications, and TPMS/SKREEM training, transmitter-fault, and verification coverage.
• Provides component-location drawings, 112 indexed connector/pinout entries, system schematics, and required-tool references including DRBIII equipment, SRS load tools 8310/8443, spring scale 8828, RF detector 9001, and OCS seatweights 9077.

Airbag and Occupant Classification Diagnostics

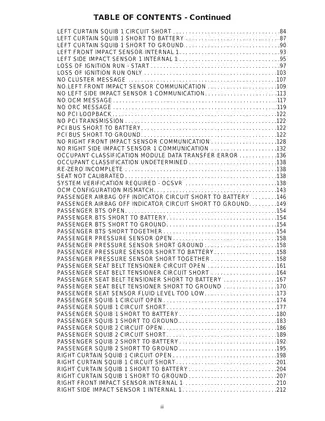

The restraint section goes well beyond a DTC list. Each fault path identifies how the module monitors the circuit, what sets the code, the likely causes, and the factory test sequence used to separate wiring, connector, clockspring, inflator, sensor, tensioner, OCM, and ORC/ACM faults. The indexed coverage includes active and stored codes, driver and passenger squib 1/2 circuits, curtain-airbag circuits, seat-belt tensioners and buckle switches, and impact-sensor communication. It also addresses passenger seat-weight and belt-tension sensing, airbag indicator faults, VIN or body-style mismatch, and OCS verification.

The manual documents DRBIII OCM/ACM data screens, seat-class status, calibration transfer, module configuration, and the factory Occupant Classification verification process. This matters during repair because the OCS seat assembly is treated as a calibrated system rather than a collection of interchangeable cushion parts. It also warns that a dropped OCM must be replaced and specifies approved SRS load tools for diagnosing inflator circuits.

BCM, PCI Bus, and Body-System Fault Isolation

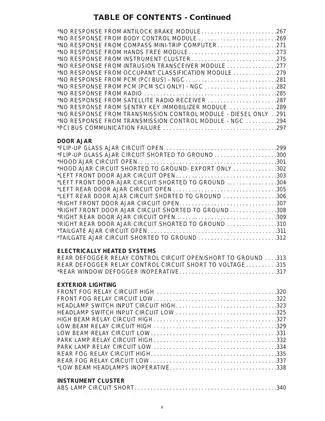

The BCM/Junction Block section explains how body systems share information over the single-wire PCI multiplex network. It distinguishes a complete bus failure from one non-responsive module, then supplies no-response tests for the ORC, BCM, instrument cluster, EVIC, radio, CD changer, hands-free module, SKIM, ABS module, gas-engine PCM, diesel TCM, and export intrusion equipment. The charts trace open bus circuits, shorts to voltage or ground, missing power or ground feeds, IOD faults, connector problems, and internal module failures.

Closure diagnostics cover the individual doors, tailgate, hood, and flip-up-glass ajar inputs, along with lock/unlock relay controls, driver-door priority unlocking, RKE complaints, and tailgate release faults. Separate test groups address the rear defogger, exterior and courtesy lighting, panel dimming, front wiper and washer operation, VTSS arming and trigger complaints, and diesel- or export-specific indicator and security faults. The highline/lowline JBM discussion is especially useful when optional fog lamps, RKE, or vehicle-theft functions change module content and test expectations.

Cluster, EVIC, Audio, TPMS, and Verification Procedures

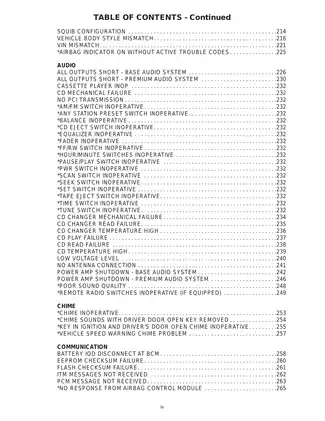

Instrument-cluster material includes lamp and gauge faults, lost-module messages, tire-size programming, panel dimming, and the cluster self-test. EVIC diagnosis covers missing PCI messages, compass and temperature display faults, trip-computer functions, Universal Garage Door Opener complaints, and tire-pressure displays. Audio procedures distinguish base from externally amplified premium systems, preventing an output-circuit code from being traced into the wrong side of the amplifier. Hands-free coverage includes Bluetooth, microphone, voice-recognition switch, audio input/output, flash-memory, PCI-message, RPM, and VIN faults.

The verification section documents post-repair checks for the body system, OCS, airbags, SKIS, TPMS, and VTSS. It also identifies configuration work that may follow module replacement, including BCM VIN learning, VTSS enablement, tire-size and country-code setup, radio EQ and RKE transmitter programming, and export ITM or siren setup. Coverage and pinouts distinguish gas and diesel applications, LHD and RHD harnesses, base and premium equipment, 3.7L automatic-transmission PCM connections, 2.8L diesel TCM connections, and export-only VTSS hardware.

Locations, Pinouts, Schematics, and Scope

Reference sections show the physical locations of the airbag modules and sensors, OCS components, BCM/Junction Block, PCM, diesel TCM, instrument cluster, tailgate-lock hardware, flip-up-glass release, and export VTSS components. Connector tables identify cavity, circuit, wire color, and function for modules, switches, relays, motors, sensors, fuses, audio equipment, and restraint components.

Named schematics include Airbag System, Inter-Module and DRB Communication, PCM Communication—Gas Only, Exterior Lighting, Power Door Locks—Doors and Tailgate/Flip-Up Glass, and the base/premium export VTSS circuits. These pages support the diagnostic charts without forcing the technician to reconstruct the multiplex network from generic wiring information.

This is a body diagnostic publication. It supplies fault isolation, specifications, locations, pinouts, schematics, programming references, and repair verification, but directs component removal and physical repair procedures to the separate KJ service manual. SRS work requires proper system disablement and the specified test equipment. The manual also cautions that disconnecting a control module with the ignition on can damage it, while piercing wire insulation during testing can create corrosion-related failures later.
