1992-1996 Lexus ES300 Repair Manual

Comprehensive service and repair manual for 1992-1996 Lexus ES300 models. Covers engine, transmission, brakes, steering, suspension, and more. DTY-345

5.0starstarstarstarstar(1)

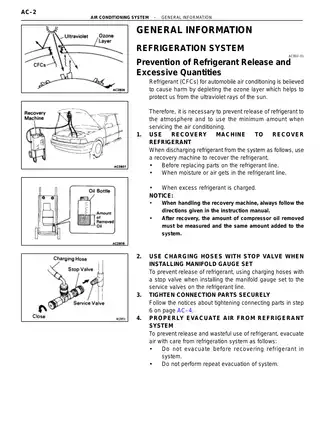

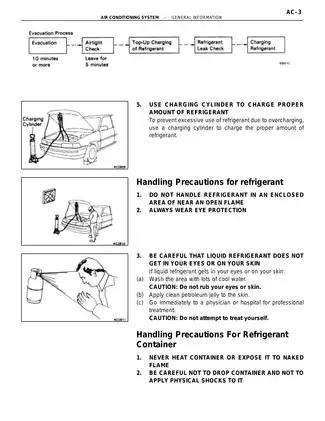

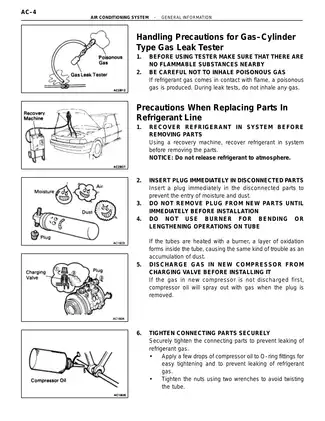

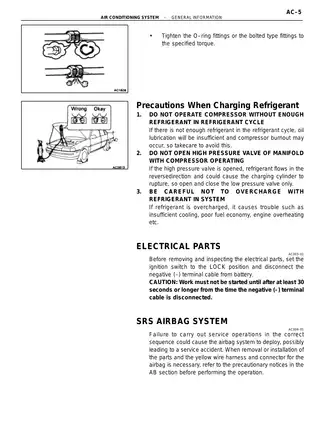

Lexus Car manual preview - 1992-1996 Lexus ES300 Repair Manual
$18.59 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Lexus Models Covered & Key Technical Specifications

Models: 1992–1996 Lexus ES300
Technical Data:

  • Refrigerant charge volume: 950 ± 50 g (33.51 ± 1.76 oz)
  • Drive belt tension (new belt): 165 ± 26 lb
  • Drive belt tension (used belt): 88 ± 22 lb
  • Idle speed (magnetic clutch disengaged/engaged): Approx. 700 rpm
  • Magnetic clutch clearance: 0.5 ± 0.15 mm (0.020 ± 0.006 in.)
  • Compressor oil capacity (receiver replacement): 15 cm (0.5 fl. oz.)
  • Compressor oil capacity (condenser replacement): 35 cm (1.2 fl. oz.)
  • Compressor oil capacity (evaporator replacement): 45 cm (1.6 fl. oz.)
  • Compressor oil capacity (compressor replacement): 100 cm (3.5 fl. oz.)
  • Suction hose to compressor torque: 25 N⋅m (250 kgf⋅cm, 18 ft⋅lbf)
  • Expansion valve to evaporator bolt torque: 5.4 N⋅m (55 kgf⋅cm, 48 in⋅lbf)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
28255 / Barbara Sanchez
File Size:
98.01 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Car
Last updated / verified
Jul 28, 2025

Lexus Manual Features & Content Preview

1992–1996 Lexus ES300 Air Conditioning Service Data

  • Covers 1992–1996 Lexus ES300 climate control systems including refrigeration loop, electrical sensor diagnostics, and component R&I procedures
  • Official OEM publication RM319U2, correction date December 4, 1992
  • Contains 43 pages of technical specifications, component location diagrams, and troubleshooting flow charts for the automatic air conditioning unit
  • Indexed PDF search covers every chapter and appendix
  • Suitable for printing individual sections for shop-floor use
  • This specific edition provides the factory-authorized diagnostic protocols for the microprocessor-controlled automatic air conditioning system installed in the 1992–1996 Lexus ES300

Technical Scope and Documentation

This manual documents the functional principles and maintenance requirements for the 1992–1996 Lexus ES300 air conditioning system. The documentation covers the refrigeration cycle, including recovery, evacuation, and charging procedures, alongside comprehensive inspection routines for the compressor, condenser, evaporator, and heater radiator. Technical data blocks define clearance values, torque specifications, and fluid capacities essential for service. The publication contains detailed wiring diagrams and terminal voltage charts to support electrical diagnosis of sensors and control units.

Diagnostic and Specification Highlights

Reference values for sensor voltages and resistance thresholds are provided for the room, ambient, and evaporator temperature sensors. The 1992–1996 Lexus ES300 diagnostic chart outlines testing sequences for DTCs ranging from 11 through 42, facilitating rapid identification of faulty circuits. Refrigerant system pressures and idle-up speed specifications are documented for high-precision verification during system performance testing. A 1992–1996 Lexus ES300 climate control system diagnostic publication covering the factory workshop manual procedures for the 1992–1996 model series, documenting electrical and mechanical system specs for the automatic air conditioning unit.

Manual FAQ, Purchase & Download Details

Does this manual contain detailed chapters on the air conditioning system for the 1992-1996 Lexus ES300? keyboard_arrow_down

Document includes comprehensive sections on the air conditioning system, covering control functions, parts location diagrams, and general refrigeration system information. It also provides guidance on system preparation, manifold gauge set usage, and evacuation procedures.

What information regarding lubricant capacity and classification is included in the document? keyboard_arrow_down

Preparation section lists specific capacity requirements in both cubic centimeters and fluid ounces, alongside classification data for compressor oil used during parts replacement.

Which specific special service tools are referenced in the preparation section of this 98 MB PDF? keyboard_arrow_down

Manual lists various special service tools including refrigerant charging gauges, hoses, and magnetic clutch removal components. It serves as an objective reference for identifying these tools for the Lexus ES300. This document provides a complete overview across its total page content.

Can I find tightening specifications for connecting parts in this repair manual? keyboard_arrow_down

Document references the need for securely tightening connection parts and points toward specific pages within the text for relevant notices on these procedures.
