Bombardier Sea-Doo 1995–1996 Jet Boat Manual Set: Speedster, Sportster, Challenger & Explorer (P/N 219 100 044)

Use the Explorer supplement with the 1995 base manual and the 1996 supplement with the 1996 base manual. Both base publications are included.

Coverage limits: A complete 1994 base shop manual is not included; coverage of Speedster 5890 is limited to selected bulletins. Explorer 5820/5821 appear in the impeller chart, while additional 1996 codes 5897/5898/5899 have bulletin-specific coverage. For detailed lanyard programming, the manuals refer to the separate MPEM Programmer Guide, P/N 219 700 040, which is not included.

PDF Search, Bookmarks and Wiring Detail

Search and diagram navigation: The 1996 shop manual, its supplement, and the bulletins have searchable text, with exceptions on some cover and diagram pages. The 1995 shop manual and Explorer supplement do not provide usable text search. The 1995 manual has no embedded bookmarks; the other four PDFs have internal bookmarks, although their MAIN MENU entries do not lead to a page within these files. Small wiring labels require zooming.

The ZIP download contains five printable English PDFs totaling 765 pages. The totals include covers, preliminary and closing pages, wiring annexes, the 1995 manual’s 31 blank and four notes pages, and the bulletin collection’s one-page merchandise-return form.

Rotax Engine, Electrical and Jet-Pump Work

These selected topics illustrate the coverage. Further material includes instrument-sensor tests and precautions for towing a jet boat behind another craft.

• Engine repair: Step-by-step engine removal and installation, top- and bottom-end work, PTO flywheel and magneto service, rotary-valve procedures, and engine leak testing.

• Fuel and lubrication: Carburetor disassembly, inspection and synchronization, fuel-system pressure testing, oil-injection adjustment, bleeding, and pump checks.

• Cooling and storage: Cooling-circuit layouts, flushing, water-flooded engine procedures, winterization, and Challenger water-flow regulator information.

• Electrical diagnosis: Ignition and timing tests, DESS/MPEM checks, charging and starting diagnosis, starter overhaul, wiring diagrams, and connector tables.

• Jet-pump service: Impeller, shaft, bearing and seal work, wear inspections, pump pressurization, and model-specific ride-shoe removal and installation.

• Steering and controls: Steering alignment, reverse-system service, throttle/shifter adjustments, and Challenger Variable Trim System checks.

• Hull and inflatable tubes: Fiberglass and gelcoat repair, painting references, hull fittings, and Explorer tube removal and patch repairs.

The shop manuals were written primarily for manufacturer-trained Sea-Doo jet boat technicians already familiar with service procedures and equipped with the specified hand and special tools.

Engine Access, Internal Inspection and Leak Diagnosis

The 1995 Sportster/Speedster material covers the 650 cm³ Rotax 657 X, while the Explorer supplement identifies the Rotax 657. The 1996 manual separates the 718.2 cm³ Rotax 717 in Sportster/Speedster models from the 781.6 cm³ Rotax 787 in the Challenger.

Engine-removal guidance distinguishes work that can be performed in the boat from bottom-end and rotary-valve-shaft repairs requiring engine removal. Internal sections cover piston/cylinder clearances, squish clearance, crankshaft alignment and deflection, rotary-valve timing, and engine-specific crankcase tightening sequences.

The supplement’s Engine Leak Diagnostic Flow Chart distinguishes cooling-system, crankcase, and rotary-valve gear-lubrication leaks. This provides a way to trace pressure loss to the affected circuit before committing to teardown.

Ignition, DESS and Workshop Test Equipment

The Charging Circuit Schematic, Timing Correction Chart, and model-specific wiring diagrams support electrical fault tracing. The 1996 Speedster/Sportster/Challenger diagrams include main-harness connection tables with wire colors, connector identities, and terminal positions; an Explorer wiring annex is also included.

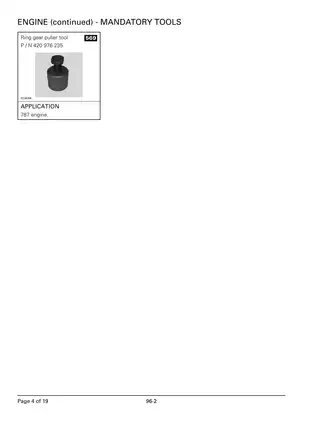

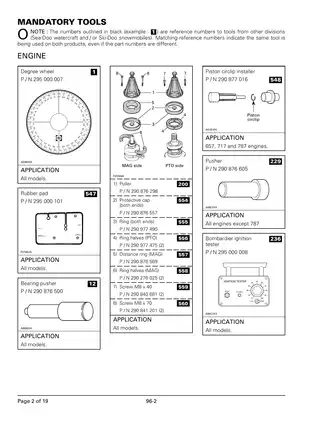

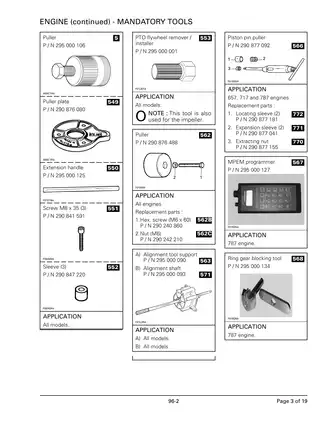

Ignition procedures reference the Bombardier ignition tester P/N 295 000 008, MPEM programmer P/N 295 000 127, and four- and six-pin magneto test harnesses P/N 295 000 131 / 295 000 136. DESS material explains encoded-lanyard recognition, beep-code diagnosis, and MPEM behavior.

Carburetion, Cooling and Seasonal Service

Bulletin 96-19 adds carburetor and impeller specifications for 1996 high-altitude applications between 1,500 and 3,000 m (5,000–10,000 ft). Challenger material also addresses its RAVE valves and water-flow regulator.

Storage bulletins supplement the base procedures, including a revised 787 winterization procedure and Explorer-specific storage information. The 787 guidance addresses water trapped near the cylinder base, where freezing can damage the base gasket.

Pump Assembly, Alignment and Hull Repairs

Pump procedures identify impeller shaft guide P/N 295 000 002 and Explorer impeller housing remover P/N 295 000 113. The Explorer supplement also provides fabrication information for a drive-shaft puller and ride-shoe removal tool.

The pump section explains how the seal lip can be damaged during shaft installation and how the thrust washer/bearing can wedge in the shaft groove. Explorer pump-to-hull shims also affect engine/jet-pump alignment and must retain their correct relationship during reassembly.

Hull repair sections distinguish surface gelcoat damage from compound fractures through the fiberglass laminate. Explorer tube procedures cover removal/refitting, minor punctures, and larger tears.

Fuel-system work, ignition testing, battery/starter service, and jet-pump repair involve flammable fuel, electrical energy, and rotating machinery. Use the model-specific warnings, special tools, torque values, and test limits in the factory publication before starting repair or teardown.

A Preview of Ignition Limits and Impeller Applications

The electrical tables specify a 7000 ± 50 RPM limiter for the 1996 Rotax 717 and a 7200 ± 50 RPM limiter for the 787. Their ignition systems are identified as CDI and DC-CDI, respectively.

The Impeller Chart for Jet Boats in Bulletin 96-13 supersedes earlier impeller applications. It lists 15°–21° pitch for Explorer 5822/5823, 11°–21° for the 1994–1995 Speedster, and 10°–22° for the 1995–1996 Sportster, 1996 Speedster, and Challenger applications shown.
