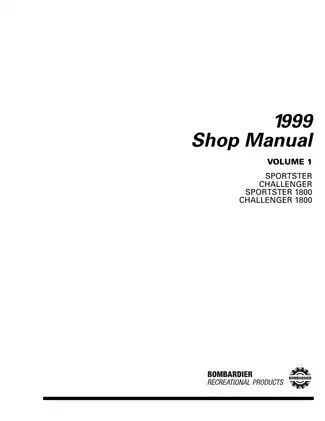

1999 Sea-Doo Sportster 1800 / Challenger 1800 Shop Manual (P/N 219 100 097, 219 100 099)

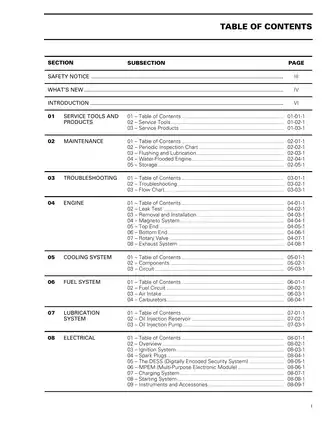

• Document identity and page count: 1,488 PDF pages total. This file compiles several Bombardier factory publications rather than one 1,488-page manual under a single part number: Shop Manual Volume 1, P/N 219 100 097 (380 pages); Shop Manual Volume 2, P/N 219 100 099 (357 pages); four illustrated parts catalogs (505 pages); the 1999 Operator’s Guide and forms (125 pages); and accessory/dealer supplements (121 pages).
• Exact model and engine coverage: Sportster 5673 uses one Rotax 717; Sportster 1800 5676/5680, Challenger 5672, and Speedster SK 5677/5681 use twin 717 engines; Challenger 1800 5675/5679 and Speedster 5678 use twin Rotax 787 engines.
• Engine repair procedures cover pre- and post-rebuild leak testing, removal and installation, engine/jet-pump alignment, magneto service, ignition timing, top-end repair, bottom-end overhaul, rotary-valve inspection and timing, 787 RAVE service, counterbalance-shaft work, and tuned-pipe repair.
• Cooling, fuel, and lubrication sections document circuit routing, flushing, storage preparation, water-flooded engine recovery, carburetor disassembly and testing, fuel-system pressure testing, oil-reservoir service, oil-pump adjustment, bleeding, and operational checks.
• Electrical diagnosis includes DESS safety-lanyard programming, MPEM basic and advanced diagnostic modes, coded-beep fault charts, fuse-block and connector-pin identification, charging and starting tests, instrument checks, and model-specific wire tracing.

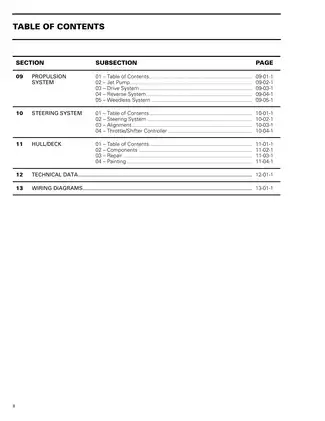

• Propulsion and steering coverage includes jet-pump removal, disassembly, inspection, assembly and pressure testing; impeller, wear-ring, bearing and seal service; drive-shaft and ride-shoe work; reverse and weedless systems; steering cables and helm replacement; nozzle alignment; and throttle/shifter adjustment.
• Hull, deck, and parts information covers seats, storage covers, latches, drain tubes, bumpers, decals, fiberglass and gelcoat repair, hull inserts, factory paint systems, plus Speedster SK ski-post, bow-cover, lock-pin, and step procedures.
• Reference drawings and data include the Engine Leakage Diagnostic Flow Chart, Engine Does Not Start Flow Chart, 717/787 Cooling System Arrangement drawings, Charging Circuit Schematic, connector-location tables, six model wiring diagrams, exploded assembly views, torque tables, pressure-test specifications, wear limits, capacities, clearances, and electrical test values.

Workshop Depth

The maintenance and troubleshooting material goes well beyond a routine owner’s schedule. It covers periodic inspections, salt-water flushing, engine fogging, storage and pre-season work, towing and single-engine operation, water ingestion, overheating, hard starting, misfire, power loss, jet-pump cavitation, ventilation, and abnormal propulsion noise. The diagnostic charts route the technician from the reported symptom into the appropriate fuel, ignition, mechanical, MPEM, or pump section.

Engine leak testing is organized into separate checks for the cooling circuit, the crankcase/top-end sealing surfaces, and the rotary-valve shaft area. That makes the procedure useful before teardown and again after a repair or complete rebuild. The manual also distinguishes work that can be performed in the boat from bottom-end and rotary-valve-shaft service that requires engine removal. On 787 engines, the added coverage includes RAVE valve cleaning and installation, bore-clearance considerations, balance-shaft draining and overhaul, gear indexing, and the combustion-chamber volume check used when cylinder-base gasket selection must be verified after crankshaft or connecting-rod work.

Diagnostics, Tools, and Illustrated Parts Support

The DESS/MPEM material is tied directly to the wiring diagrams rather than treated as a generic electronics chapter. It covers safety-lanyard recognition and programming, basic and advanced beep-code diagnosis, MPEM circuit verification, 26-pin AMP connector service, fuse locations, terminal identification, and the green-tracer convention used to separate starboard wiring on twin-engine boats. Full model diagrams are backed by connector-location tables and wire-color references.

Factory tools are identified where the repair depends on them. Examples include the engine leak tester kit P/N 295 500 352, alignment support plate kit P/N 529 035 506 with alignment shaft P/N 295 000 141, impeller remover/installer P/N 295 000 001, and bearing/seal installer P/N 295 000 107.

The parts portion contains Challenger 1800 catalog 219 300 650 / JCP-9902 (130 pages), Sportster 1800 219 300 660 / JCP-9903 (124 pages), Speedster 219 300 640 / JCP-9904 (123 pages), and Speedster SK 219 300 670 / JCP-9905 (128 pages). These catalogs provide exploded assembly identification, quantities, option notes, part numbers, and numerical indexes. Dedicated parts catalogs for the base Sportster 5673 and Challenger 5672 are not included in this PDF.

Repair Notes and Scope

Several factory cautions matter during major repair work. Engine-mount shims control engine-to-pump alignment, so their original locations must be recorded and alignment rechecked after installation. On the 787, the crankshaft and counterbalance-shaft gear marks must remain indexed or vibration and premature wear can result. RAVE components also have a defined installation orientation and cylinder-bore clearance; incorrect assembly can make the valve stick or contact the bore.

The shop manuals describe production configurations at the time of manufacture and do not cover later dealer modifications. Fuel-system pressure work, running-engine cooling checks, battery isolation, and jet-pump service involve fuel-vapor ignition and rotating-component hazards. Follow the Bombardier warnings and have safety-critical repair work checked by a qualified marine technician before the boat returns to service.
