1998 Sea-Doo Sportster / Sportster 1800 / Challenger / Challenger 1800 Shop Manual & Supplement (Printed Manual P/N 219 100 075)
399 Pages • Printable PDF • 82.70 MB • Download
Sea-Doo Models Covered & Key Technical Specifications
Models: Sportster, Sportster 1800, Challenger, Challenger 1800
Models & Model Codes:
Sportster — 5614, 5619, 5634
Sportster 1800 — 5613, 5618, 5633
Challenger — 5612, 5617, 5632
Challenger 1800 — 5611, 5616, 5631
Model Year: 1998
-
Engine Configuration: 717 (Sportster, Sportster 1800, Challenger) and 787 (Challenger 1800) 2-stroke Rotax engines
-
Transmission: Direct drive (all models)
-
Idle Speed: 3000 RPM (out of water)
-
Engine RPM Limiter Setting: 7000 ± 50 RPM (717 engine); 7200 ± 50 RPM (787 engine), in forward/reverse
-
Fuel Capacity: 102 L (27 US gal) for Sportster and Challenger; 151 L (40 US gal) for Sportster 1800 and Challenger 1800, including reserve
-
Cooling System: Total Loss Cooling System (TLCS)
-
Spark Plug Torque: 24 N•m (17 lbf•ft)
-
Combustion Chamber Volume (717 Engine): 31.2–34.0 cc
-
Combustion Chamber Volume (787 Engine): 34.7–37.9 cc
Sea-Doo Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

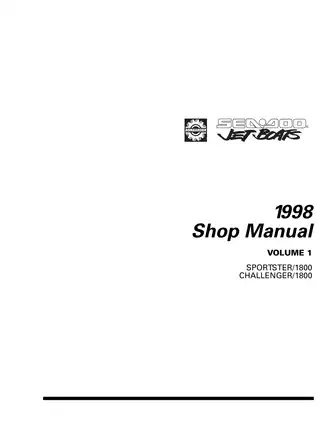

| 1998 Bombardier Shop Manual, Volume 1 — P/N 219 100 075. Covers Sea-Doo Sportster, Sportster 1800, Challenger, and Challenger 1800. | 335 |
| 1998 Shop Manual Supplement to Volume 1 — P/N 219 100 090. Adds electrical, instrument, and model-specific wiring documentation for the same four models. | 64 |
Use the publications together: the supplement supplies the DESS, MPEM, instrument-testing, and wiring sections referenced by the main manual. Coverage follows the original production configurations; subsequent dealer modifications are outside its scope.
PDF Search, Bookmarks, and Wiring Sheets
Search and diagram detail: Most body text is searchable, with embedded bookmarks for chapters and model-specific wiring sections. Small wiring labels require enlargement and are not searchable text. The diagrams span paired pages. Two legacy Main Menu bookmarks reference a separate file.
One printable PDF contains 399 pages in total, including the front and back covers of both publications—four cover pages already included in the publication counts above.

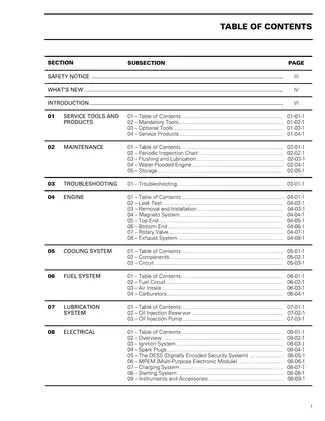

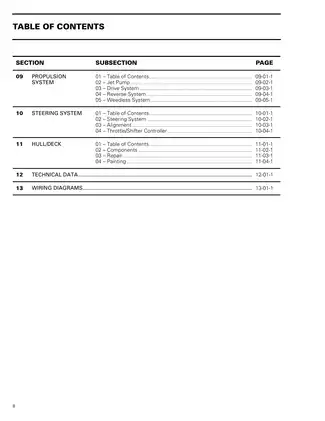

Rotax Engine, Jet Pump, and Electrical Service
The following topics are a selection of the manual’s contents. Other covered work includes fuel-system pressure testing and throttle/shifter controller adjustment.
-
Engine repair: Step-by-step procedures for engine removal, top and bottom end repair, rotary valve timing, magneto servicing, and applicable RAVE valve work.
-
Cooling and lubrication: Cooling-circuit diagnosis, exhaust manifold servicing, oil injection pump adjustment and bleeding, and counterbalance shaft cavity draining during storage preparation.
-
Fuel systems: Mikuni BN-40i-38 carburetor overhaul, fuel pump testing, throttle and choke cable adjustment, and Challenger 1800 dual-carburetor synchronization.
-
Electrical diagnosis: Ignition timing checks, charging and starter tests, Digitally Encoded Security System (DESS) operation, and Multi-Purpose Electronic Module (MPEM) diagnostic modes.
-
Propulsion and steering: Jet pump removal and overhaul, engine-to-pump alignment, reverse gate linkage adjustment, weedless intake servicing, and steering helm replacement.
-
Maintenance and hull: Periodic inspections, water-flooded engine recovery, winterizing, sacrificial zinc anode checks where fitted, fiberglass and gelcoat repairs, painting, and corrosion protection.
Written for manufacturer-trained jet boat technicians, the manual assumes familiarity with standard service procedures and the use of the specified tools.
Engine Leakage Tests and Internal Repairs
The Engine Leakage Diagnostic Flow Chart separates cooling-system leaks from crankcase, cylinder, and rotary valve sealing faults. It supports fault isolation before teardown and sealing checks after reassembly.
Internal inspection covers piston and cylinder measurements, crankshaft alignment and deflection, bearings, and bottom end assembly. Rotary valve shaft repairs require engine removal and crankcase separation.
For the 787 engine, the counterbalance shaft instructions identify incorrect indexing as a cause of excessive vibration and premature wear.
Carburetors, Cooling Circuits, and Oil Injection
Carburetor inspection addresses diaphragms, needle valves, leakage, and accelerator pump operation. Fuel pump tests distinguish the carburetor-mounted pumps on Sportster and Challenger from the external pumps on the 1800 models. Cable adjustments also cover the low-speed steering control system.
Cooling illustrations explain hose routing and exhaust water supply, including the 787 water flow regulator. Oil injection coverage extends to synchronization, bleeding, and delivery tests; a defective pump is replaced rather than internally overhauled.
Ignition, DESS, and MPEM Troubleshooting
The Timing Correction Chart explains electronic ignition correction for the 787 engine. The Charging Circuit Schematic accompanies charging-system tests, while electric starter coverage includes disassembly, inspection, and reassembly.
The supplement explains basic and advanced MPEM diagnostic modes. Connector identification, the Typical Grounding Blocks Arrangement, and model-specific wiring tables connect circuit tests with harness locations, wire colors, and terminal positions.
The Fuel Level and Resistance charts support sender diagnosis. Separate tests address the blower, lighting, and automatic and manual bilge pump operation.
DESS safety-lanyard programming requires MPEM programmer P/N 529 035 502 with software version 2.5 or later. The supplement refers to the programmer’s separate guide for operating instructions.
AMP connector instructions warn that piercing seal diaphragms with test probes can admit moisture and cause electrical failure.
Jet Pump, Driveline, and Steering Service
Pump inspection includes impeller and wear ring condition, shaft play, bearings, seals, and pressure testing. Installation documentation distinguishes single-pump and twin-pump arrangements and provides sealing details for the ride shoe and pump support.
Driveline coverage addresses carbon ring sealing and protective boot preload. Reverse gate locking checks, weedless-system cable adjustment, and steering alignment are also documented. The steering helm is replaced as a complete assembly rather than internally rebuilt.
Storage, Hull Repairs, and Workshop Precautions
The Periodic Inspection Chart organizes routine maintenance. Storage instructions distinguish engine-specific draining and freeze protection requirements.
Hull sections address gelcoat defects, fiberglass damage assessment, and repair methods. They do not replace a complete fiberglass and gelcoat repair manual.
Service work requires the manual’s precautions for fuel vapors in the bilge, ignition testing, and rotating driveline components.
Selected Cooling-Test and Clearance Specifications
For the 717 and 787 engine cooling-system leakage test, the manual specifies 5 psi (34 kPa), with pressure checked after three minutes. Water is not required for this test.
Rotary valve-to-cover clearance is 0.30 ± 0.05 mm (0.012 ± 0.002 in) for both engine types. Jet pump inspection gives a maximum impeller blade-tip-to-wear-ring clearance of 1.02 mm (0.040 in), identified as the wear limit in the technical tables.
