Beechcraft Bonanza Wiring Diagram Manual 1978–1999 | F33A, F33C, V35B, A36, A36TC, B36TC (P/N 35-590102-9E1)
694 Pages • 1 Printable PDF (English) • Download
Beechcraft Models Covered & Key Technical Specifications
Models: F33A, F33C, V35B, A36, A36TC, B36TC
Sub-models / Variants: A36TC (EA-1 thru EA-241, EA-243 thru EA-272), B36TC (EA-242, EA-273 thru EA-319, EA-321 thru EA-388)
Trade Names: Beech Bonanza
Model Years: 1978–1999 (1978, 1979, 1980, 1981, 1982, 1983, 1984, 1975, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999)
Serial Numbers: F33A (CE-748, CE-772 and after), F33C (CJ-149 and after), V35B (D-10097, D-10120 and after), A36 (E-1111, E-1241 thru E-1945, E-1947 thru E-2103, E-2105 thru E-2110), A36TC (EA-1 thru EA-241, EA-243 thru EA-272), B36TC (EA-242, EA-273 thru EA-319, EA-321 thru EA-388)
-
Voltage: 28V DC at the radio and engine instrument lighting supply (diagram 33-13-01)
-
Manual Design Specification: GAMA Specification No. 2
-
Component Identification: Alpha-numeric Reference Designators
-
Wire Identification: Mil-W-5088 military-style wire codes
Beechcraft Manual Features & Selected Content Preview
This Beechcraft Bonanza wiring diagram manual covers the F33A, F33C, V35B, A36, A36TC, and B36TC within the serial ranges listed above. Raytheon Aircraft reissued the manual in October 1995 and revised it on January 29, 1999 (P/N 35-590102-9E1).
Searching and Reading the Wiring PDF
Text search, bookmarks, and diagram labels help you find and read individual circuits. The PDF has an OCR text layer and embedded bookmarks for indexes, chapters, and individual circuits. OCR can miss short wire codes and part numbers. Check the printed section title and configuration after following an alternator bookmark, since some bookmark labels differ from the section shown. Small wire codes and pin numbers are easier to read when zoomed in.

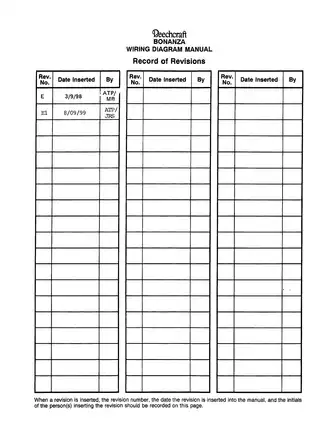

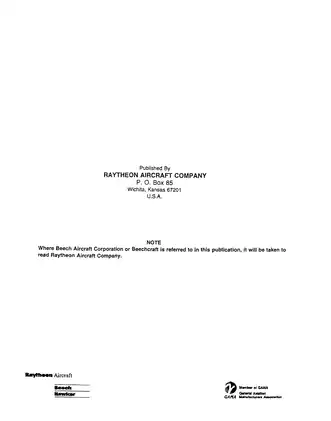

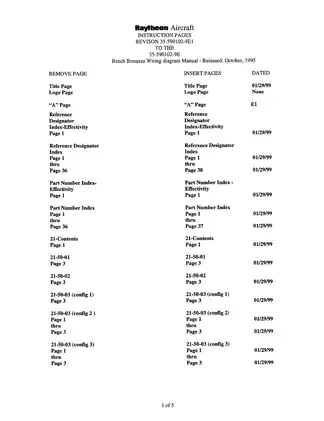

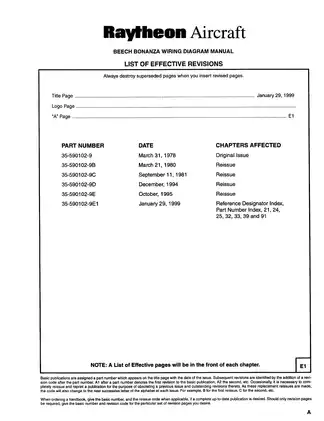

The download contains one printable, English-language PDF with 694 pages. The total includes nine front-matter pages: the title and publisher pages, the revision record, the list of effective revisions, and five pages of revision instructions.
Wiring Diagrams by Aircraft System
Selected circuits are outlined below. The manual also includes wiring for the emergency locator transmitter.
-
Electrical power diagrams cover alternators, voltage regulators, external power, and subpanel distribution. Optional emergency power diagrams distinguish single and dual navigation/communications installations.
-
Flight controls and landing gear diagrams show elevator trim, flap motors and position indication, stall warning, gear motors and relays, gear position indication, and optional gear safety circuits.
-
Fuel, ignition, and engine instruments include auxiliary fuel pumps, fuel quantity and flow indication, ignition switching, engine instrument clusters, and turbine intake temperature indication.
-
Environmental and ice protection diagrams cover optional air conditioning and vent air blowers, heated pitot circuits, and propeller anti-ice connections.
-
Lighting diagrams cover annunciators and their test circuits, instrument dimming, electroluminous panels, cabin lights, rotating beacons, and three-light strobe systems.
-
Navigation and communications diagrams show turn coordinator and standby air pump gyro circuits, plus microphone switch and cabin speaker wiring.
This reference is intended for aircraft maintenance technicians familiar with electrical schematics, wire identification, and connector pinouts.
Tracing Circuits and Locating Components
The chapters follow ATA-style numbering for systems, subsystems, and individual subjects. The alphabetical index points to circuits by name. The Reference Designator Index and Part Number Index help you locate a component by its schematic identifier or part number. Equipment lists then tie the identifier to the applicable part and installation zone.
Aircraft zone diagrams show areas such as the firewall, main spar, fuselage, empennage, and wings. The conventional-tail drawing identifies separate zones for the dorsal fin, vertical stabilizer, and rudder. Symbol and switch charts explain contact states, and the wire code guide explains AWG sizes, ground suffixes, and AC phase letters.
The schematics show point-to-point electrical connections. Physical harness routing is outside their scope. The introduction lists the separate Bonanza shop and maintenance manuals as companion references.
Serial Applicability and Equipment Changes
Chapter lists of effective pages identify drawing revisions and configurations. The serial applicability on individual drawings and the effectivity codes in equipment lists help match a circuit and its components to the aircraft.
Alternator drawings distinguish installations before and after kit 55-3025-1S. The A36TC auxiliary fuel pump drawings distinguish installations before and after kit 36-9008-1S under Service Bulletin 2033. An optional-equipment harness may be present with dead-ended wires, so the harness alone cannot confirm that the equipment is installed.
Circuit Boards and Connector Charts
Board drawings cover annunciator lights, flap position, electrical equipment, and fuel quantity indication. Annunciator junction box diagrams cross-reference internal board components. Use the equipment list to establish what belongs to an orderable assembly, since its drawing outline can include other components.
Connector charts cover instrument panel grounding (P/J80), the junction box disconnect (P/J54), the crossover disconnect (P/J85), and wing-access connectors. The charts show connector inserts from the rear, which determines how the contact positions are read. The P/J54 chart specifies insertion and extraction tool 91067-2 and crimp tool 90265-1 for 20–24 AWG contacts.
Landing Gear Breaker Rating Examples
For the F33C from serial CJ-180 onward, the Landing Gear – Motor and Relay diagram 32-30-01, Configuration 2, shows a 5-amp CB18 for the relay circuit and a 30-amp CB19 for the motor circuit. Its equipment list identifies the corresponding breaker part numbers (PDF pp. 378–380).
