2003–2005 Yamaha XV1700PCR Road Star Warrior Supplementary Service Manual (P/N 5PX3-AE2)

• Factory fitment is identified as XV1700P and XV1700PCR, covering model codes 5PX1 (USA), 5PX2 (California), 5PX3 (Canada), 5PX4 (USA), 5PX5 (California), and 5PX6 (Canada).
• Two matched Yamaha publications with 573 PDF pages total: the 537-page XV1700P Service Manual 5PX3-AE1 and the 36-page XV1700PCR Supplementary Service Manual 5PX3-AE2.
• Engine repair coverage runs from removal and installation through rocker arms, push rods, hydraulic valve lifters, camshafts, cylinder heads, valves, pistons, clutch, crankcase, oil pumps, crankshaft, connecting rods, and transmission.
• Fuel-injection diagnosis includes ECU self-diagnostics, stored fault-code tables, on-meter diagnosis mode, sensor and actuator checks, fail-safe behavior, throttle-body synchronization, injector testing, and fuel-pump and pressure-regulator checks.
• Chassis procedures address wheel and belt-drive service, brake master-cylinder and caliper overhaul, hydraulic bleeding, front-fork disassembly and assembly, steering-head work, and rear shock and swingarm removal and installation.
• Reference material provides component torque tables, capacities, lubricant specifications, wear limits, clearances, electrical test data, exploded assembly views, cable-routing drawings, lubrication charts, and system-specific circuit diagrams.

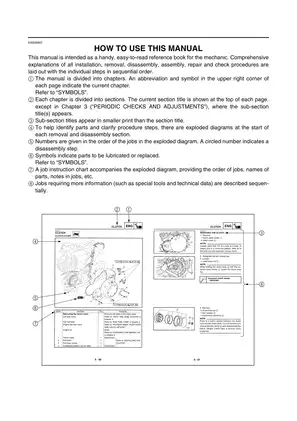

How the Base Manual and PCR Supplement Work Together

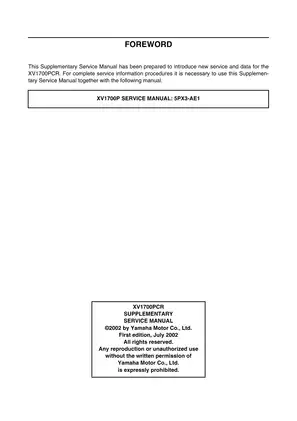

These official Yamaha Motor Co., Ltd. manuals form a matched service set for the XV1700 Road Star Warrior configurations identified above. Manual 5PX3-AE1 is the full factory workshop reference, issued as the first edition in October 2001. Manual 5PX3-AE2 is the first-edition July 2002 supplement for the XV1700PCR. Yamaha states that the supplement must be used together with 5PX3-AE1; it is not a stand-alone repair manual.

The supplement adds only the service information changed for the PCR configuration. Its coverage includes revised engine, chassis, electrical, and tightening specifications; updated cable, harness, fuel-hose, and brake-hose routing; revised maintenance charts; rear-shock spring-preload and rebound-damping adjustment; rear brake master-cylinder access; rear shock and swingarm layouts; engine-left-side and camshaft-sprocket-cover access; and stator-coil removal. Unchanged work is referred directly back to the base manual.

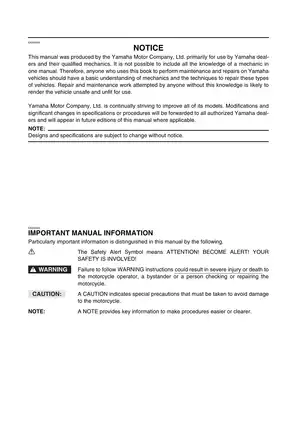

Yamaha produced these manuals primarily for dealers and qualified mechanics and expressly assumes a basic understanding of motorcycle mechanics and repair techniques. The set is therefore best suited to professional technicians and experienced owners who have the required tools and can follow factory safety practices.

Engine, Fuel-Injection, and Drivetrain Repair Depth

The base manual goes well beyond scheduled maintenance. It covers internal engine inspection and assembly, valve and valve-seat service, hydraulic lifter bleeding, camshaft and decompression-system work, clutch and primary-drive repair, transfer-gear-case and oil-pump service, crankcase separation, bearing selection, and transmission inspection. The periodic-service chapter supplies valve-clearance adjustment, throttle-body synchronization, ignition-timing and compression checks, engine-oil pressure testing, transfer-oil service, drive-belt adjustment, steering-head adjustment, and brake bleeding.

For the electronic fuel-injection system, the ECU chapter explains how stored faults are displayed at the meter and how diagnosis mode is used to view sensor data or command supported actuators. Fault-code tables tie symptoms to likely circuits and components, while separate sections cover injectors, throttle bodies, the linear control valve, fuel-pump pressure regulation, and the air-induction system. Electrical repair sections add switch-continuity testing, starter-motor service, and troubleshooting for the ignition, starting, charging, lighting, signaling, and FI circuits.

Diagrams, Tools, and Repair Cautions

Named visual references include the engine-oil flow diagrams, transfer-gear oil flow diagrams, FI wiring diagram, and dedicated ignition, electric-starting, and charging circuit diagrams. The exploded views pair parts identification with job-order charts, while the cable-routing pages show connector, harness, control-cable, ignition-lead, sensor-lead, and hose placement. California-only canister and purge-hose routing is identified separately.

The special-tool index specifies factory tools for the work shown, including alternator rotor puller YM-01080-A, fork spring compressor YM-01441, fork seal driver YM-01442, valve spring compressor YM-04019, bearing remover/installer YM-28898, and fuel-pressure adapter YM-03176.

The crankcase section warns that the shift-drum segment must clear the case during separation and that striking the mating surfaces can damage the component teeth or sealing faces. The connecting-rod chapter also treats each rod, cap, and big-end bearing set as matched parts; interchanging them can upset oil clearance and cause engine damage. Brake hydraulic work, fuel-pressure testing, and rear-suspension removal should be performed with Yamaha's specified support, bleeding, and fire-safety precautions so the motorcycle is not returned to service in an unsafe condition.
