Massey Ferguson 6200 Series Tractor Workshop Manual, 1999–2001

This Massey Ferguson 6200 Series workshop service manual covers the MF 6235, 6245, 6255, 6260, 6265, 6270, 6280, and 6290. It contains AGCO repair documentation with section revisions from 1999 through August 2002.

PDF Search, Bookmarks and Diagram Detail

Finding procedures and circuit details: Searchable text and embedded bookmarks provide access to sections and individual procedures, although some bookmark destinations are misplaced. Dense wiring diagrams require zooming to read small connector numbers and wire codes.

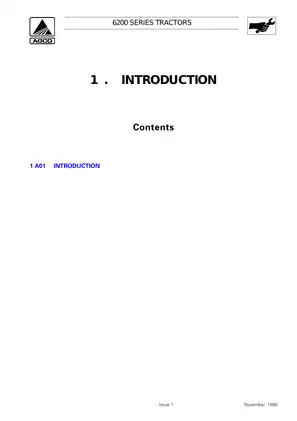

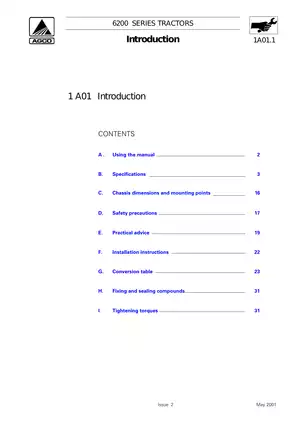

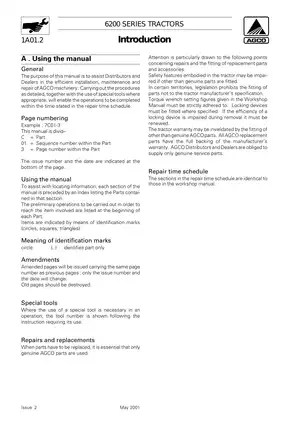

The download contains one printable, English-language PDF with 1,580 pages, including 68 blank pages and three chapter-placeholder pages.

Drivetrain Overhaul, Hydraulic Tests and Electronic Diagnosis

The following selected workshop topics illustrate the coverage rather than reproduce the complete contents. Other subjects include Dromone automatic-hook adjustment and Carraro axle lubrication checks.

• Tractor splitting and clutches: Step-by-step separation and reassembly procedures at the engine, gearbox, rear axle, and front frame, plus wet-clutch disassembly and adjustment.

• Transmission repair: Speedshift, Dynashift, Power Shuttle, mechanical reverse shuttle, and creeper-unit service, with shaft shimming for Normal Duty and Heavy Duty gearboxes.

• Axles, brakes and PTO: Dana and Carraro final-drive and differential repairs, suspended-front-axle service, handbrake adjustment, brake-piston replacement, and PTO clutch and shaft work.

• Hydraulics and steering: Separate open-center and closed-center test procedures, pump and valve service, Orbitrol steering-unit overhaul, and brake and clutch circuit bleeding.

• Electrical and electronic diagnosis: Rists and Deutsch wiring diagrams, Autotronic 2 and 3 fault tracing, Electronic Linkage Control diagnosis, and Power Shuttle calibration.

• Engine-related coverage: Engine specifications, viscostatic-fan operation, flywheel and damper service, and spacer repairs; internal engine overhaul requires a separate Perkins workshop manual.

Written to support AGCO distributors and dealers, this manual is suited to agricultural workshop technicians with the lifting equipment, measuring tools, and diagnostic equipment required by its procedures.

Splitting, Engine Coverage and Transmission Rebuilds

The separation procedures identify preliminary operations and the assemblies that must be disconnected before major drivetrain work. Together with longitudinal sections and exploded views, they help a workshop plan access to internal components.

Use appropriately rated lifting equipment and secure supports during tractor splitting and heavy-component removal.

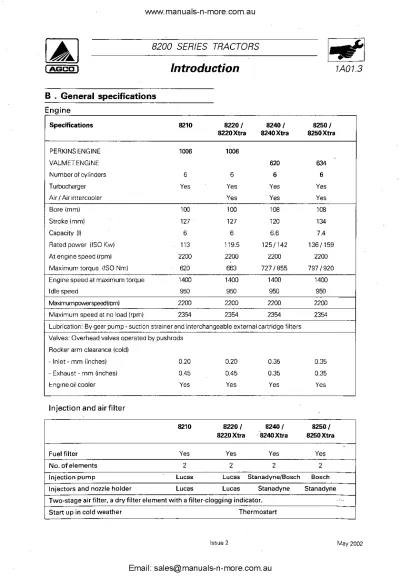

Engine scope: The engine section supplies valve-clearance, injection-system, and cooling specifications, while the general specifications include fluid capacities. Full engine disassembly, assembly, and adjustment information is assigned to the separate English-language Perkins engine workshop manual, reference 1857075 M1, which is not included.

Gearbox detail: Component sections cover clutch-pack settings, planetary-carrier shimming, selector mechanisms, synchronizers, and bearing adjustment. Serial-specific sections distinguish the original and optimized Hare/Tortoise locking arrangements.

The Speedshift instructions warn that damaged sealing rings can cause leakage, pressure loss, and incorrect operation. Four general torque charts cover metric and inch fasteners, alongside assembly-specific tightening values throughout the repair sections.

Axle, PTO and Hydraulic Service

Rear-axle procedures address differential setup, drive-pinion positioning, handbrake configurations, and trumpet-housing repairs. PTO coverage distinguishes removable and selectable output shafts, economy versions, ground-speed PTO, and clutch service.

Dana and Carraro sections provide different bearing, final-drive, and differential procedures. Carraro suspension work identifies dedicated pin-installation tools, including CA715350 and CA715353, and describes optional cooling assistance during assembly.

Hydraulic diagnosis: Circuit schematics and separate test sections connect pressure and flow measurements to the relevant steering, linkage, trailer-brake, and transmission-control functions. The specified test equipment includes the MF 3001 pressure-gauge kit, MF 3016 flowmeter, and MF 3017 hose kit.

Closed-center auxiliary-valve instructions explain why incorrect shim installation or tightening can cause the spools to seize.

Wiring, Calibration and Control Systems

Engine and cab wiring diagrams distinguish Rists and Deutsch equipment, with regional fuse layouts. Autotronic function flowcharts, electronic-linkage diagrams, and the SMS wiring schematic support circuit identification and fault tracing.

Wintest procedures: Dedicated sections cover controller programming, parameter settings, live tests, and error-code diagnosis for Autotronic, Electronic Linkage Control, Datatronic 2, and joystick functions. Dual Control and TIC sections explain implement-control settings and diagnostics. Wintest-based work requires the separate software, CAN BOX interface, and appropriate connection harness.

Cab electrical circuits are included, but the separate Cab and Equipment, Accessories, and Service Tools chapters contain only placeholders. Tool references and some tool drawings remain available within the individual repair sections.

Selected Shuttle Calibration and Rear-Linkage Specifications

For Power Shuttle calibration, the manual specifies transmission oil at 35–45°C when measured by the gearbox-cover sensor, using Wintest or the dashboard display. Measurement with a thermometer at the rear-axle gauge hole instead uses a 45–55°C range.

For the MF 6280 and MF 6290 rear linkage, the specifications list a maximum lifting force of 7,100 kg at the ball ends with two 75 mm rams, depending on lift-rod position and linkage model.
