Massey-Ferguson 8210, 8220, 8240, 8250, 8260, 8270, 8280 Tractor 2001–2002 Service Manual (P/N 3378177 M1)

AGCO workshop service manual P/N 3378177 M1 for the 2001–2002 Massey-Ferguson 8200 series: 8210, 8220, 8240, 8250, 8260, 8270 and 8280, with Xtra variants identified in the specification tables. The publication includes revised sections dated May 2002.

Printable PDF, Navigation and Diagram Detail

Text access and wiring detail: The workshop pages do not support PDF text search, and there are no embedded PDF bookmarks. Small connector numbers and wire codes on the checked electrical diagrams require zooming.

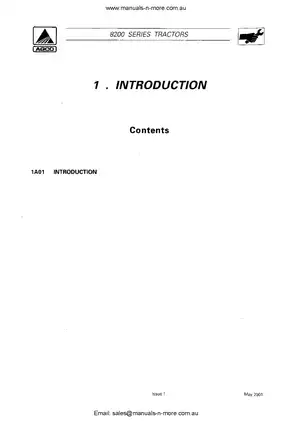

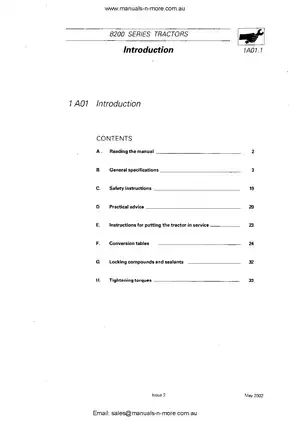

One printable PDF contains 1,879 pages, including one additional introductory page and two chapter placeholder pages.

Drivetrain Overhaul and Tractor System Diagnosis

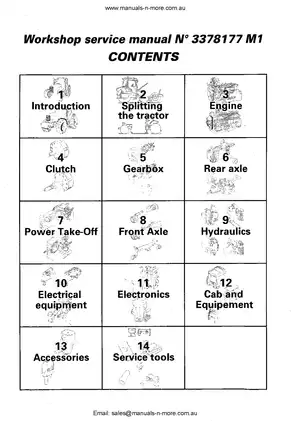

The following selected coverage highlights outline the main workshop content. Other documented topics include rear-wheel track adjustment and the Dromone retractable hitch.

• Tractor splitting: Step-by-step procedures for separating the front frame, engine, gearbox, intermediate housing, center housing and PTO housing, with support arrangements and service-tool references.

• Transmission repair: Dynashift, mechanical reverse shuttle, power shuttle and AG150/AG250 Full Powershift disassembly, clutch overhaul, shaft shimming and selector adjustments.

• Rear axle and PTO: Final-drive service, differential and lock overhaul, brake-piston seal replacement, park lock, PTO shafts, clutch and brake.

• Front axles and steering: Dana, ZF and Carraro final drives and differentials, plus 2WD axle service, Carraro suspension work and troubleshooting.

• Hydraulic diagnosis: Load-sensing circuit diagrams, pump and spool-valve service, high- and low-pressure tests, oil decontamination, and brake and clutch bleeding.

• Electronic controls: Autotronic 2 and 3, DCC/TC calibration and fault analysis, electronic linkage, Datatronic 2, SMS and Wintest diagnostic procedures.

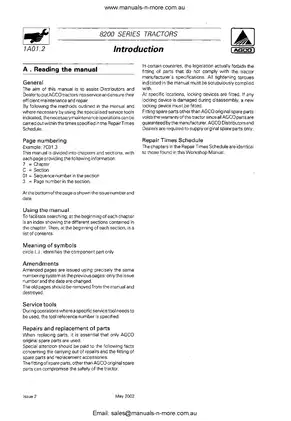

Written to assist AGCO distributors and dealers with maintenance and repair, this manual is suited to technicians equipped for tractor splitting, hydraulic testing and electronic diagnosis.

Engine Interfaces and Coverage Limits

The engine chapter provides Perkins and Valmet specifications and explains the viscostatic fan. Repair procedures cover the flywheel, damper, starter ring gear and spacer assemblies.

Internal engine overhaul: Detailed engine adjustments, disassembly and assembly are referred to separate Perkins and Valmet workshop publications. Those engine manuals are not included in this PDF.

Cab and accessories: Cab wiring and electrical equipment are covered within the electrical sections. The separate Cab and Equipment and Accessories chapters listed in the master contents are represented by “Chapter Under Construction” placeholder pages rather than repair instructions.

Splitting, Clutches and Transmission Assemblies

For shops planning drivetrain repairs, the splitting sections identify separation points, connections and tooling before major assemblies are removed. Chassis-reinforcement installation and adjustment are also documented.

The Full Powershift material goes beyond operating descriptions to cover speed-clutch trains, range-clutch shafts, housing inspection and the transmission hydraulic circuit. Power-transmission routes, exploded assembly views and section drawings support the repair procedures.

The gearbox repair section warns that hardened pinion teeth can shatter when extraction loads are applied incorrectly. Tractor splitting requires the support methods and correctly rated lifting equipment specified in the manual.

Axle Setup, Brakes and PTO

Rear-axle coverage distinguishes standard, sealed-compartment, composite and double-reduction arrangements. Bearing shimming, differential backlash and drive-pinion positioning are treated by assembly type, with component-specific tightening data.

Front-axle sections distinguish Dana, ZF and Carraro assemblies instead of applying one overhaul procedure to every tractor. PTO coverage includes removable and shiftable shafts, bearing blocks, shaft seals, and clutch-and-brake assemblies.

Load-Sensing Hydraulics and Circuit Testing

Separate hydraulic sections describe the standard and optional higher-flow systems. Priority blocks with and without trailer braking, Bosch and electro-hydraulic auxiliary spool valves, lift control and Orbitrol steering receive their own descriptions and service information.

Pressure and flow tests identify the relevant diagnostic connections and operating conditions. Equipment references include the MF 3001 pressure-gauge kit and MF 3016 turbine flowmeter, allowing the required test equipment to be identified before diagnosis begins.

Harness Variants, Calibration and Wintest

Rists and Deutsch electrical sections provide harness and connector information, with separate European and North American lighting layouts. Autotronic function flowcharts, electrical diagrams and DCC/TC sensor-location references connect control-system descriptions with fault tracing.

Autotronic 3 material covers Speed Matching, optional Autodrive, power-shuttle calibration and error codes. DCC/TC sections add calibration modes and fault-code analysis; Datatronic 2 sections address Dual Control and TIC for semi-mounted implements.

The Wintest chapters describe programming, parameter setting and system tests using the period PC-based diagnostic setup. They require Wintest software, a CAN BOX interface and the appropriate harnesses; this download supplies the documentation.

Examples of Cooling Capacity and Cold Valve Settings

For the 8210 and 8220, the cooling-capacity table lists 28.5 liters.

The cold rocker-arm clearance specifications for these models are 0.20 mm at the inlet valves and 0.45 mm at the exhaust valves.
